OUTDOOR LIGHTING · LED DOWNLIGHTS
LFDTWS-10W-3K-IP65-BL

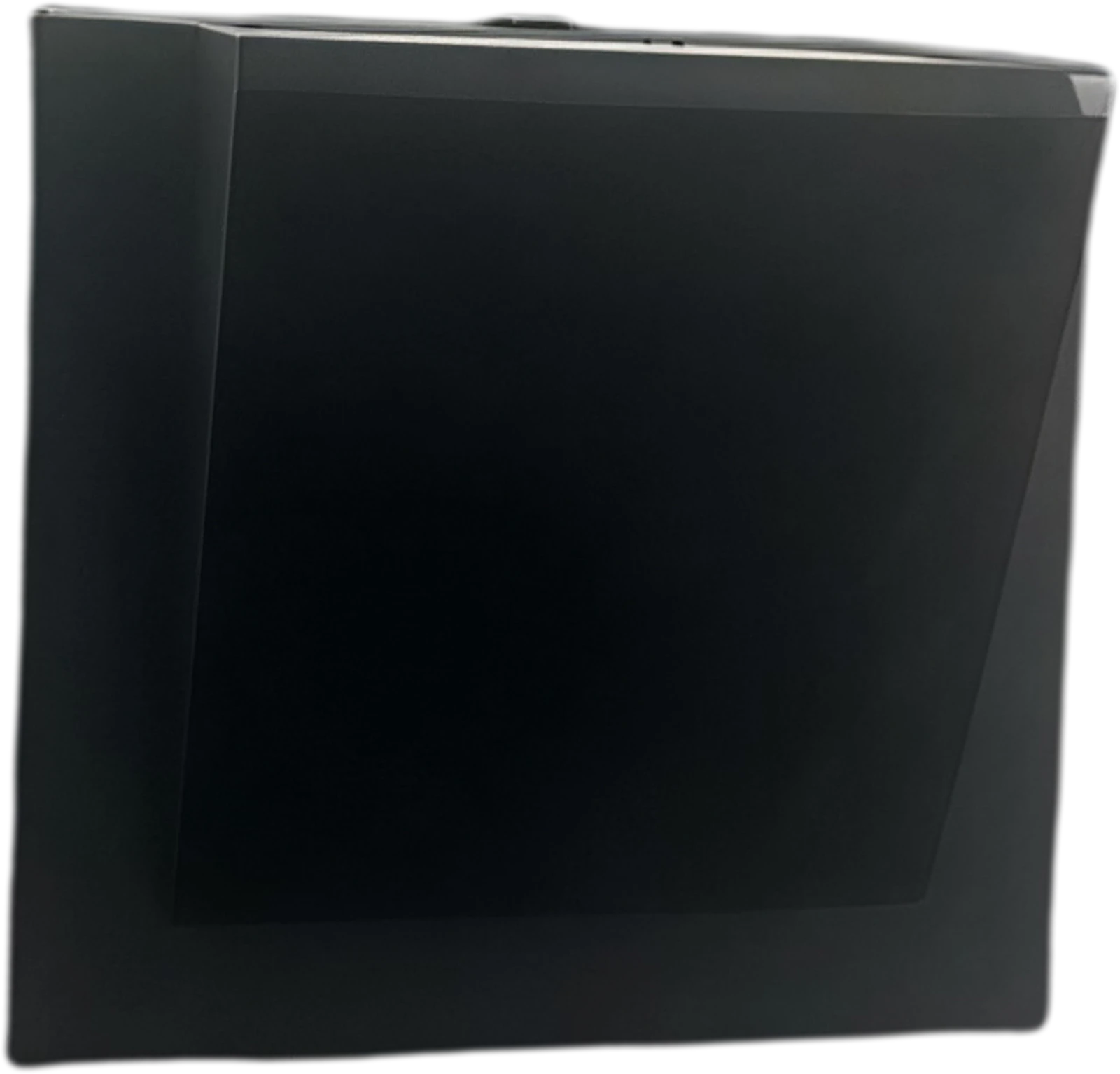

Wall Mounted Downward Light wall surface
Wall-mounted downward luminaire for exterior walls — die-cast aluminium with a clear-glass diffuser, washing entrances and façades with a directed 90° beam.
10 W
WATTAGE
750 lm
OUTPUT
3000 K
COLOUR TEMP.
IP65
RATING
FINISH
Black
Mounting
HOW IT INSTALLSWALL SURFACE
Mounted onto the wall face, shining up, down or out.
Technical Specifications
FROM CMS RECORD · LFDTWS-10W-3K-IP65-BLLUMINAIRE DETAILS
Product CodeLFDTWS-10W-3K-IP65-BL
Product TypeDown Light
Application AreaOutdoor
PRODUCT DETAILS
Wattage10 W
Colour Temp.3000 K
IP RatingIP65
Chip TypeSMD
Luminous Flux750 lm
CRI> 80
Beam Angle90°
Life Time50,000 Hours
DriverIntegrated
DimmingNon-Dimmable (On/Off)
Input Voltage230V AC
PHYSICAL DETAILS
Housing MaterialAlu Die Cast
Diffuser MaterialGlass
Diffuser OpticsClear
Operating Temp.-20°C to +55°C
Storage Temp.-20°C to +80°C
Photometrics
750 lm
LUMEN OUTPUT
90 °
BEAM ANGLE
—
CENTRE BEAM
—
EFFICACY
3000 K
COLOUR TEMP.
80
CRI
Dimensions
