INDOOR LIGHTING · LED DOWNLIGHTS
LFSFCS-15W-3K-IP54-WH/BK-D175mm

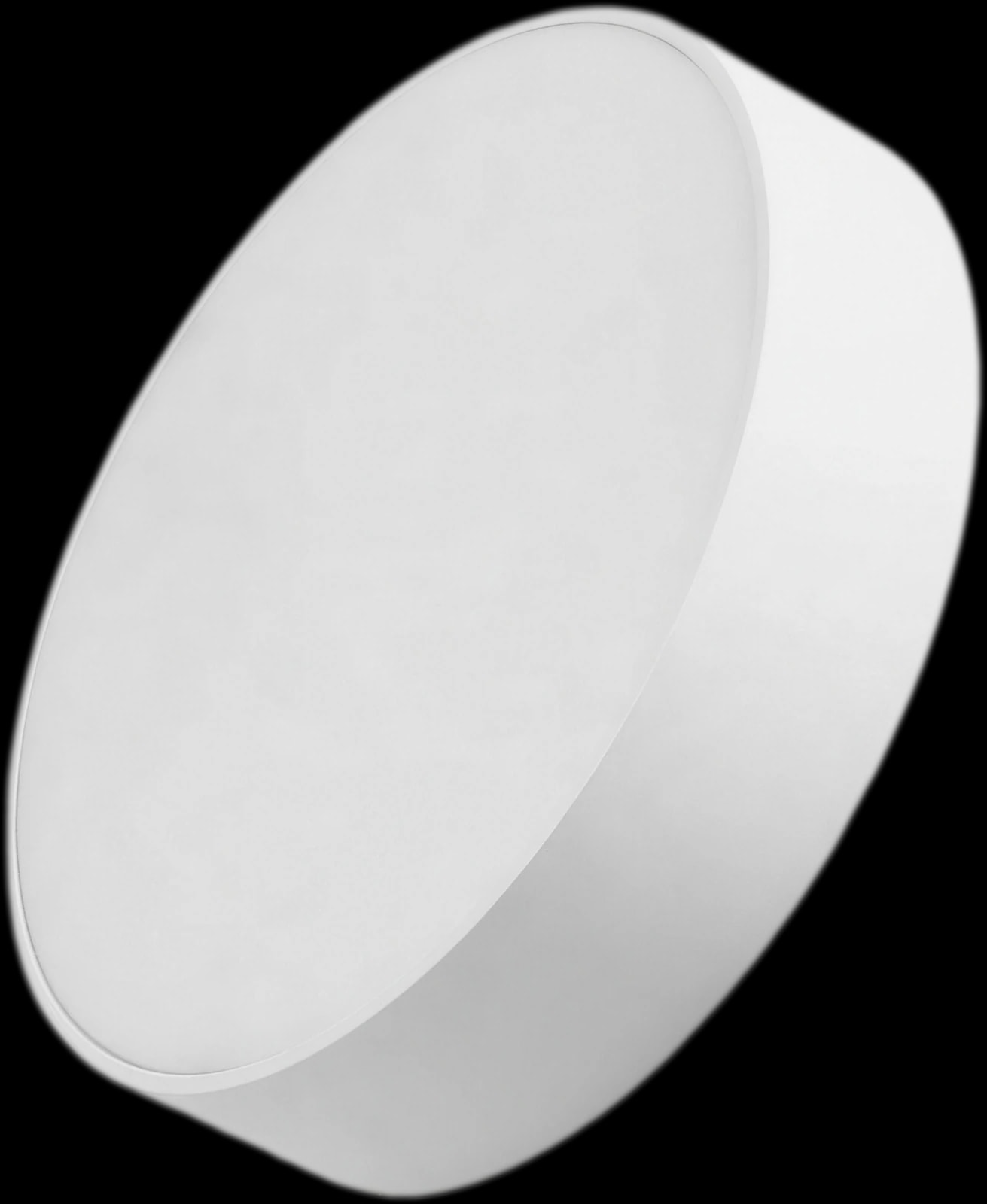

Surface Round Panel ceiling surface
Surface-mounted round LED panel for interior ceilings — a slim Ø175 mm housing with an opal diffuser for even, low-glare general lighting.
15 W
WATTAGE
1800 lm
OUTPUT
3000 K
COLOUR TEMP.
IP54
RATING
FINISH
White
Black
Mounting
HOW IT INSTALLSCEILING SURFACE
Fixed onto the ceiling face, body visible.
Technical Specifications
FROM CMS RECORD · LFSFCS-15W-3K-IP54-WH/BK-D175mmLUMINAIRE DETAILS
Product CodeLFSFCS-15W-3K-IP54-WH/BK-D175mm
Product TypeDown Light
Application AreaIndoor
PRODUCT DETAILS
Wattage15 W
Colour Temp.3000 K
IP RatingIP54
Chip TypeSMD
Luminous Flux1800 lm
CRI> 80
Beam Angle120°
Life Time50,000 Hours
DriverExternal
DimmingNon-Dimmable (On/Off)
Input Voltage230V AC
PHYSICAL DETAILS
Housing MaterialAluminium (Extruded)
Diffuser MaterialPolycarbonate (PC)
Diffuser OpticsOpal
SizeDia 175 x H 40mm
Operating Temp.-20°C to +40°C
Storage Temp.-20°C to +50°C
Photometrics
1800 lm
LUMEN OUTPUT
120 °
BEAM ANGLE
—
CENTRE BEAM
—
EFFICACY
3000 K
COLOUR TEMP.
80
CRI
Dimensions
