ARCHITECTURAL LED LIGHTING
PRODUCT DATASHEET
REV 01 · 2026 · 27/07
INDOOR LIGHTING · LED DOWNLIGHTS

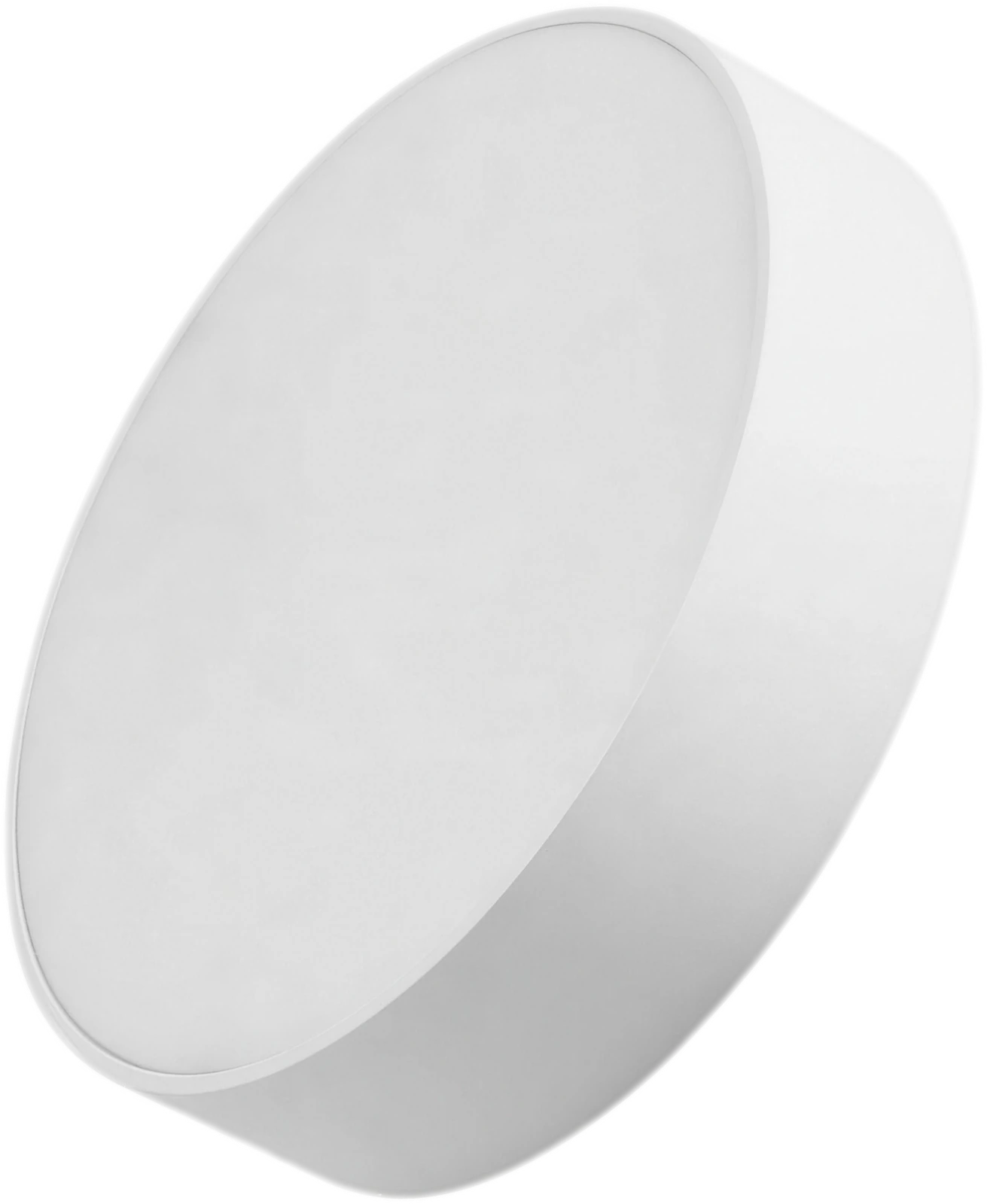

Surface Round Panel
ceiling surface
LFSFCS-15W-3K-IP54-WH/BK-D175mm
Surface-mounted round LED panel for interior ceilings — a slim Ø175 mm housing with an opal diffuser for even, low-glare general lighting.
MOUNTING
Ceiling surface
LUMINAIRE DETAILS
Product Code
LFSFCS-15W-3K-IP54-WH/BK-D175mm
Product Type
Down Light
Application Area
Indoor
PRODUCT DETAILS
Wattage
15 W
Colour Temp.
3000 K
IP Rating
IP54
Chip Type
SMD
Luminous Flux
1800 lm
CRI
> 80
Beam Angle
120°
Life Time
50,000 Hours
Driver
External
Dimming
Non-Dimmable (On/Off)
Input Voltage
230V AC
PHYSICAL DETAILS
Housing Material
Aluminium (Extruded)
Diffuser Material
Polycarbonate (PC)
Diffuser Optics
Opal
Size
Dia 175 x H 40mm
Operating Temp.
-20°C to +40°C
Storage Temp.
-20°C to +50°C
DIMENSIONAL DRAWING · MM
PHOTOMETRIC · POLAR
LIGHT DISTRIBUTION
120°
FINISHES
White
Black
LED
CreeBridgeluxEpistarOsram
DRIVER
Luxflare
SUMMARY
WATTAGE
15
CCT
3000
INGRESS
54
FINISH
WH · BK
Technical data in accordance with EN 60598-1, EN 62031, EN IEC 63000 (RoHS), EU LVD 2014/35/EU and EN/IEC 60529 (IP code). We reserve the right to make technical and design changes.
LUXFLARE LIGHTINGREV 01 · 2026 · 27/07INDOOR
