INDOOR LIGHTING · LED DOWNLIGHTS
LFDLCS-20W-3K-IP44-BK

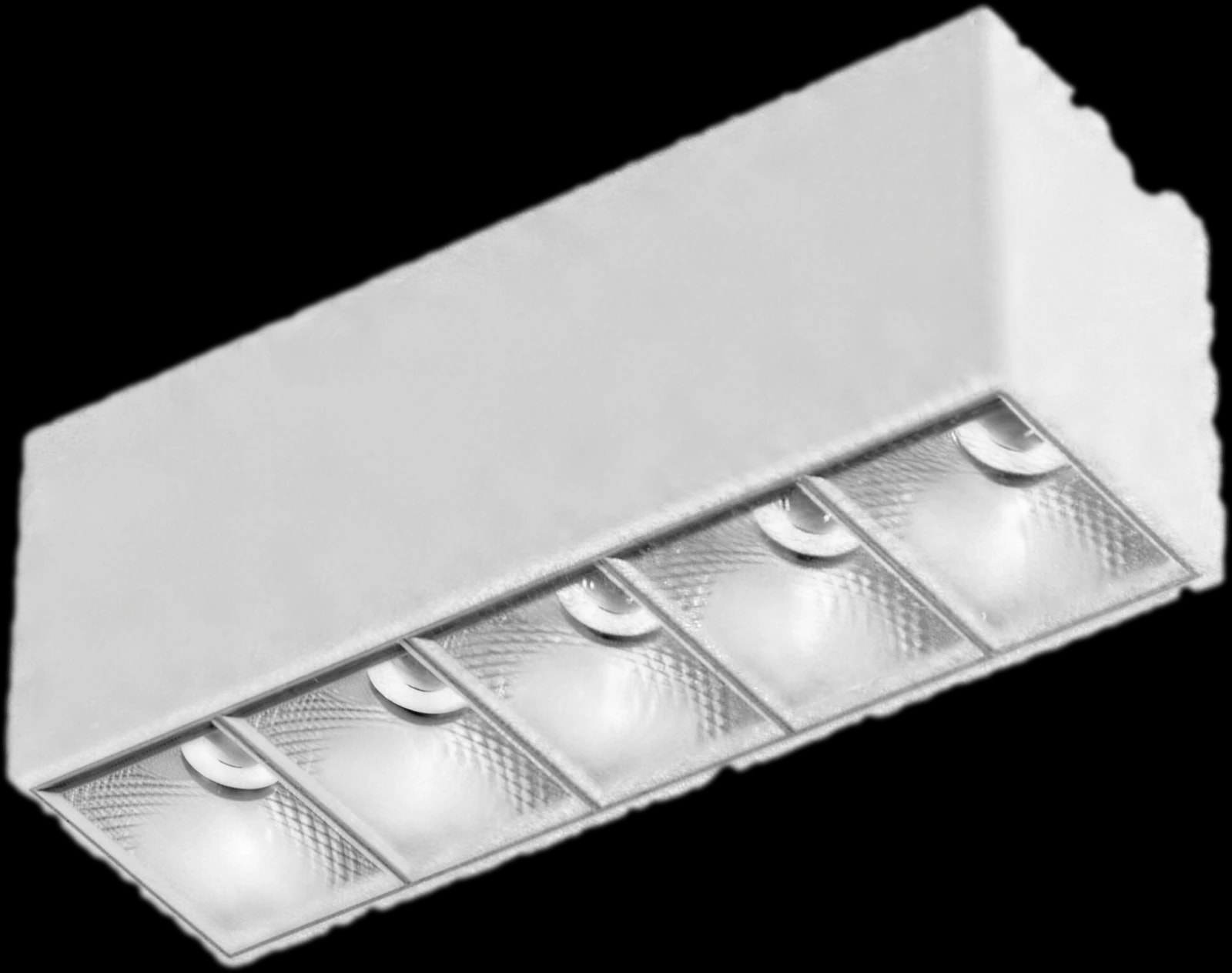

Surface Down Light linear surface
Surface-mounted five-cell linear downlight — die-cast aluminium with clear-glass optics in 50° or 70°, for corridors and rooms without recess depth.
20 W
WATTAGE
1400 lm
OUTPUT
3000 K
COLOUR TEMP.
IP44
RATING
FINISH
Black
Mounting
HOW IT INSTALLSSURFACE
Fixed onto the surface — plane not specified by the manufacturer.
Technical Specifications
FROM CMS RECORD · LFDLCS-20W-3K-IP44-BKLUMINAIRE DETAILS
Product CodeLFDLCS-20W-3K-IP44-BK
Product TypeDown Light
Application AreaIndoor
PRODUCT DETAILS
Wattage20 W
Colour Temp.3000 K
IP RatingIP44
Chip TypeSMD
Luminous Flux1400 lm
CRI> 80
Beam Angle50° · 70°
Life Time50,000 Hours
DriverExternal/Integrated
DimmingNon-Dimmable (On/Off)
Input Voltage230V AC
PHYSICAL DETAILS
Housing MaterialAlu Die Cast
Diffuser MaterialGlass
Diffuser OpticsClear
SizeL 195 x W 43 x H 66mm
Operating Temp.-20°C to +40°C
Storage Temp.-20°C to +50°C
Photometrics
1400 lm
LUMEN OUTPUT
50 °
BEAM ANGLE
—
CENTRE BEAM
—
EFFICACY
3000 K
COLOUR TEMP.
80
CRI
Dimensions
