INDOOR LIGHTING · LED STRIP
LFSRS-10W-2.7/3/4/5/6K-IP65-CS

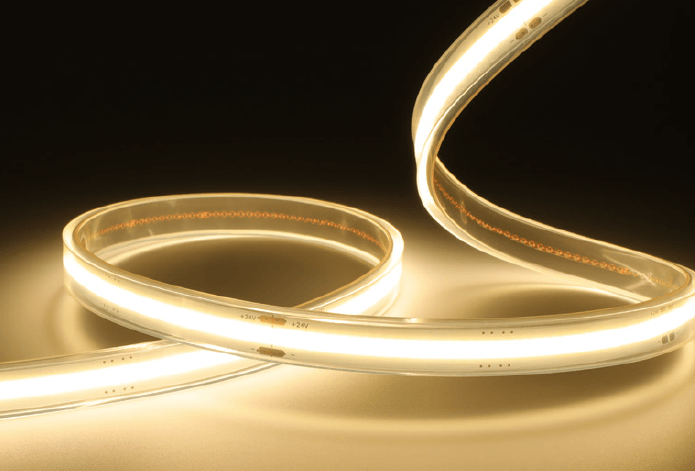

Strip Light flexible
Product overview to be supplied.
10 W
WATTAGE
—
OUTPUT
2700 / 3000 / 4000 / 5000 / 6000 K
COLOUR TEMP.
IP65
RATING
FINISH
Custom Colour
CERoHSENECLM-80Flicker Free
Mounting
HOW IT INSTALLSSURFACE
Fixed onto the surface — plane not specified by the manufacturer.
Technical Specifications
FROM CMS RECORD · LFSRS-10W-2.7/3/4/5/6K-IP65-CSLUMINAIRE DETAILS
Product CodeLFSRS-10W-2.7/3/4/5/6K-IP65-CS
Product TypeStrip Light
Application AreaIndoor
PRODUCT DETAILS
Wattage10 W
Colour Temp.2700 / 3000 / 4000 / 5000 / 6000 K
IP RatingIP65
Chip TypeCOB
Luminous Flux1100 lm
CRI90
Beam Angle120°
Life Time50,000 Hours
DriverEXTERNAL
DimmingNon-Dimmable (On/Off)
Input Voltage24V DC
PHYSICAL DETAILS
Housing MaterialHigh-pressure cast aluminum and aluminum alloy
SizeW 8 mm
Operating Temp.-20°C to +40°C
Storage Temp.-20°C to +50°C
Additional specifications
LED quantity480 Led/M
Length per reel5M - 10M
Cutting interval100mm (3.93") cutting length
Working temperature-20~50°C
Storage temperature-30~80°C
Lamp survival factor (L80 at 50,000 h)0.98 at 100,000 h
Photometrics
—
LUMEN OUTPUT
120 °
BEAM ANGLE
—
CENTRE BEAM
—
EFFICACY
—
COLOUR TEMP.
—
CRI

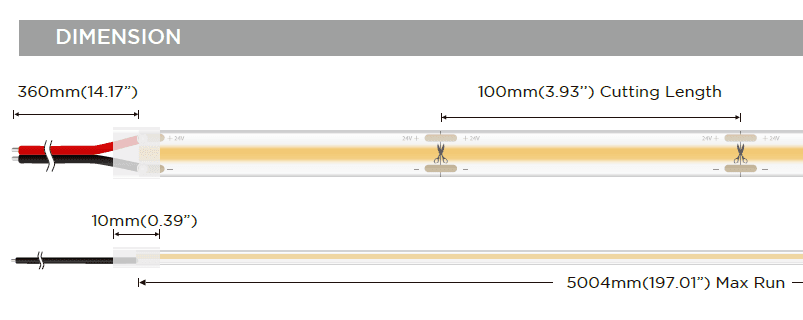

Dimensions
