ARCHITECTURAL LED LIGHTING
PRODUCT DATASHEET
REV 02 · 2026 · 08/10
INDOOR LIGHTING · LED STRIP

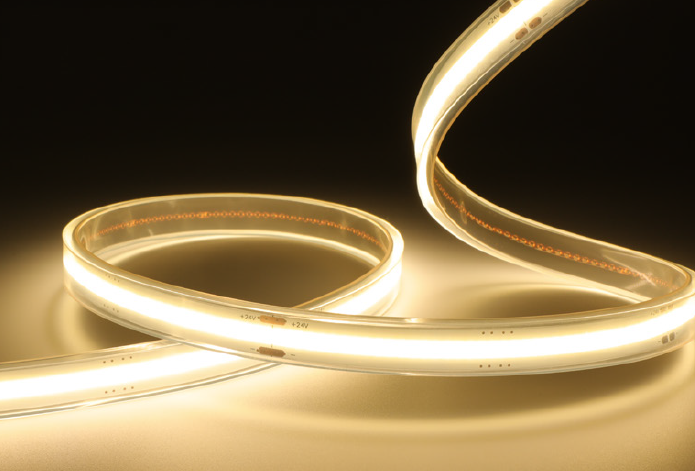

Strip Light
flexible
LFSRS-10W-2.7/3/4/5/6K-IP65-CS
Product overview to be supplied.
MOUNTING
Surface
LUMINAIRE DETAILS
Product Code
LFSRS-10W-2.7/3/4/5/6K-IP65-CS
Product Type
Strip Light
Application Area
Indoor
PRODUCT DETAILS
Wattage
10 W
Colour Temp.
2700 / 3000 / 4000 / 5000 / 6000 K
IP Rating
IP65
Chip Type
COB
Luminous Flux
1100 lm
CRI
90
Beam Angle
120°
Life Time
50,000 Hours
Driver
EXTERNAL
Dimming
Non-Dimmable (On/Off)
Input Voltage
24V DC
PHYSICAL DETAILS
Housing Material
High-pressure cast aluminum and aluminum alloy
Size
W 8 mm
Operating Temp.
-20°C to +40°C
Storage Temp.
-20°C to +50°C
Additional specifications
LED quantity
480 Led/M
Length per reel
5M - 10M
Cutting interval
100mm (3.93") cutting length
Working temperature
-20~50°C
Storage temperature
-30~80°C
Lamp survival factor (L80 at 50,000 h)
0.98 at 100,000 h

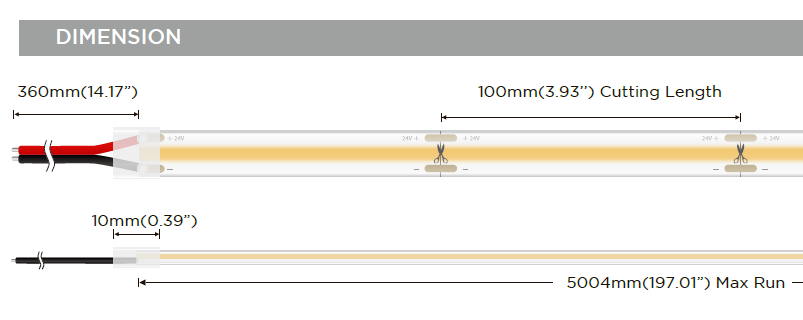

DIMENSIONAL DRAWING · MM

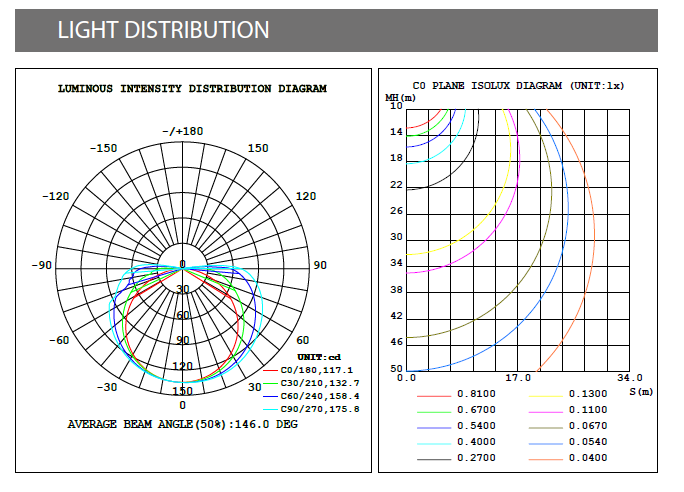

PHOTOMETRIC · POLAR
FINISHES
Custom Colour
LED
CreeLumiledsBridgeluxVSTridonicEpistar
DRIVER
VSTridonic
SUMMARY
WATTAGE
10
CCT
2700 · 3000 · 4000 · 5000 · 6000
INGRESS
65
FINISH
CS
Technical data in accordance with EN 60598-1, EN 62031, EN IEC 63000 (RoHS), EU LVD 2014/35/EU and EN/IEC 60529 (IP code). We reserve the right to make technical and design changes.
