OUTDOOR LIGHTING · POST-TOP
LFPTSA-150W-3K-IP66-DG/SG

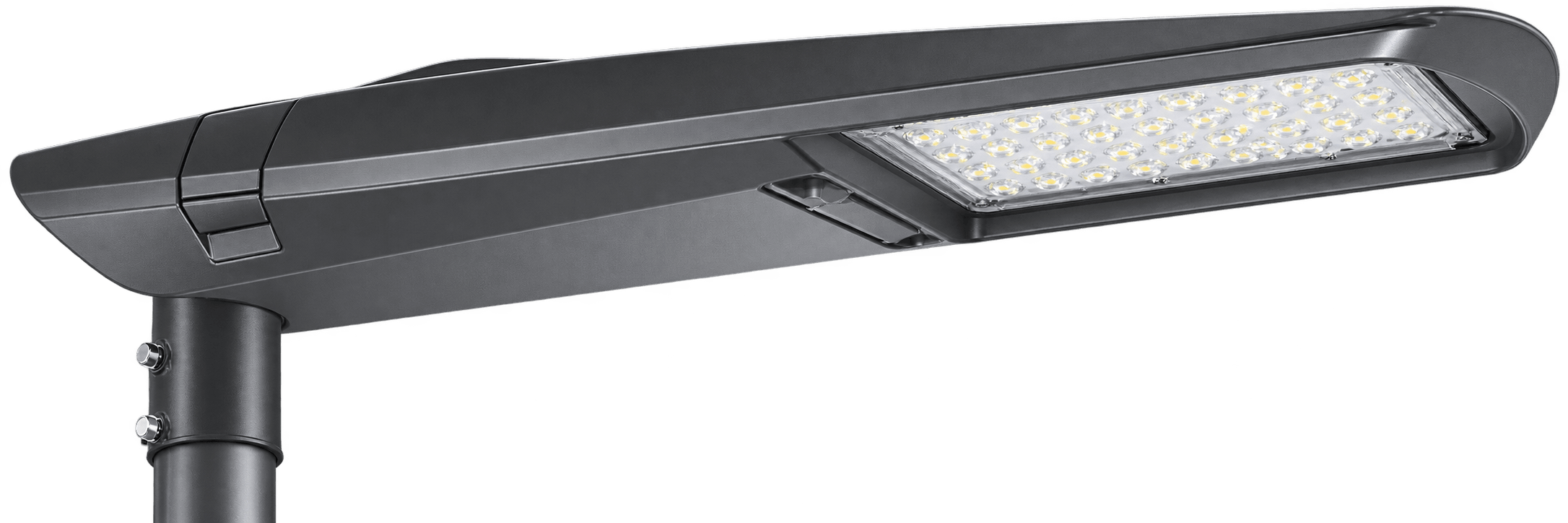

Street Light 150W pole-mounted
A 150 W LED street light measuring 710 x 300 x 111 mm, producing 19,500 lm through lens optics on an internal, DALI-dimmable driver. Rated IP66 and finished in dark grey or silver-grey, for pole-mounted road lighting on 100-277V AC.
150 W
WATTAGE
19500 lm
OUTPUT
3000 K
COLOUR TEMP.
IP66
RATING
FINISH
Dark Gray
Silver Gray
Mounting
HOW IT INSTALLSSTANDALONE
Free-standing — no fixing to ceiling, wall or floor.
Technical Specifications
FROM CMS RECORD · LFPTSA-150W-3K-IP66-DG/SGLUMINAIRE DETAILS
Product CodeLFPTSA-150W-3K-IP66-DG/SG
Product TypePost-Top Light
Application AreaOutdoor
PRODUCT DETAILS
Wattage150 W
Colour Temp.3000 K
IP RatingIP66
Chip TypeSMD
Luminous Flux19500 lm
CRI> 70
Life Time50,000 Hours
DriverInternal
DimmingDALI
Input Voltage100-277V AC
PHYSICAL DETAILS
Housing MaterialAlu Die Cast
Diffuser MaterialGlass
Diffuser OpticsLens
SizeL 710 × W 300 × H 111 mm
Operating Temp.-20°C to +55°C
Storage Temp.-20°C to +80°C
Photometrics
19500 lm
LUMEN OUTPUT
—
BEAM ANGLE
—
CENTRE BEAM
—
EFFICACY
3000 K
COLOUR TEMP.
70
CRI
