ARCHITECTURAL LED LIGHTING
PRODUCT DATASHEET
REV 01 · 2026 · 17/08
OUTDOOR LIGHTING · POST-TOP

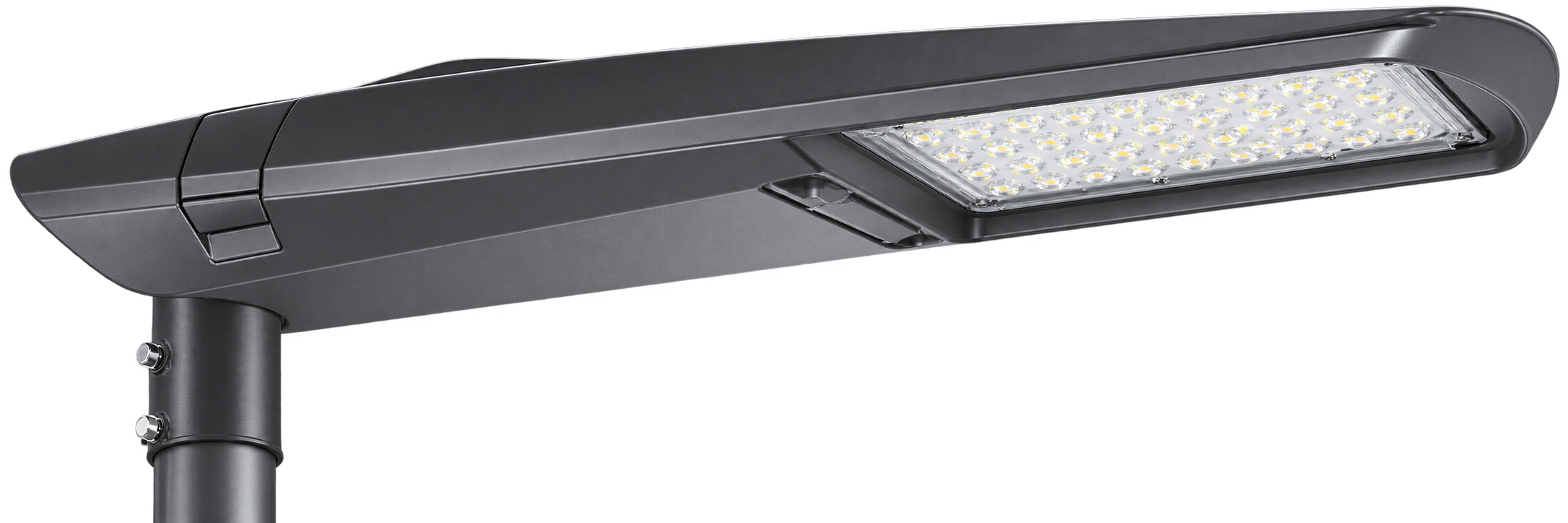

Street Light 150W
pole-mounted
LFPTSA-150W-3K-IP66-DG/SG
A 150 W LED street light measuring 710 x 300 x 111 mm, producing 19,500 lm through lens optics on an internal, DALI-dimmable driver. Rated IP66 and finished in dark grey or silver-grey, for pole-mounted road lighting on 100-277V AC.
MOUNTING
Standalone
LUMINAIRE DETAILS
Product Code
LFPTSA-150W-3K-IP66-DG/SG
Product Type
Post-Top Light
Application Area
Outdoor
PRODUCT DETAILS
Wattage
150 W
Colour Temp.
3000 K
IP Rating
IP66
Chip Type
SMD
Luminous Flux
19500 lm
CRI
> 70
Life Time
50,000 Hours
Driver
Internal
Dimming
DALI
Input Voltage
100-277V AC
PHYSICAL DETAILS
Housing Material
Alu Die Cast
Diffuser Material
Glass
Diffuser Optics
Lens
Size
L 710 × W 300 × H 111 mm
Operating Temp.
-20°C to +55°C
Storage Temp.
-20°C to +80°C
DIMENSIONAL DRAWING · MM
IMAGE TO BE SUPPLIED
FINISHES
Dark Gray
Silver Gray
LED
Lumileds
DRIVER
Inventronics
SUMMARY
WATTAGE
150
CCT
3000
INGRESS
66
FINISH
DG · SG
Technical data in accordance with EN 60598-1, EN 62031, EN IEC 63000 (RoHS), EU LVD 2014/35/EU and EN/IEC 60529 (IP code). We reserve the right to make technical and design changes.
