INDOOR LIGHTING · SPOT LIGHTS
LFSLR-9W-3K-IP44-WH

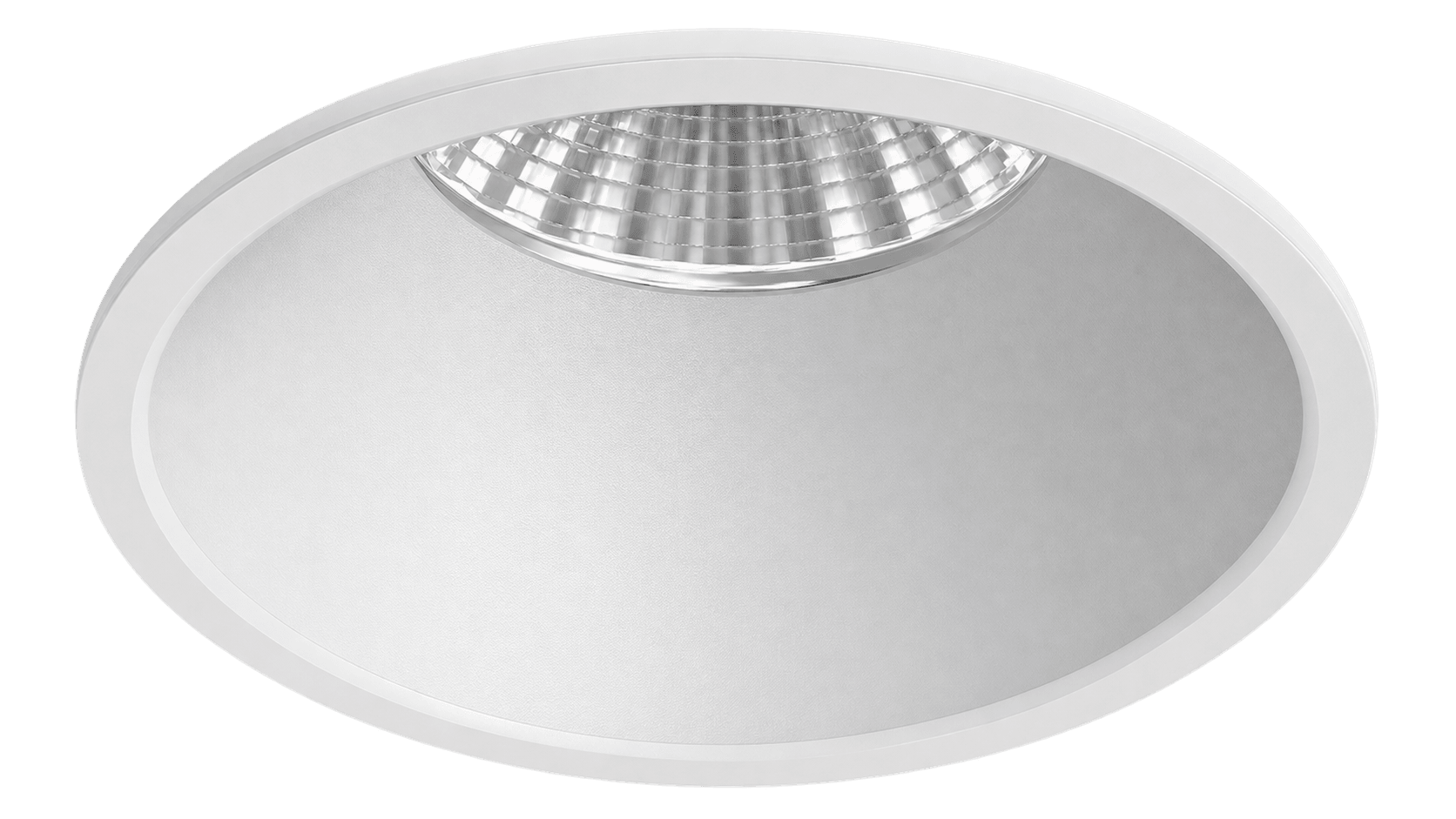

Spot Light 9W recessed
A 9 W recessed spot in a Ø72 mm body with a 60 mm cutout, producing 810 lm across selectable 24° or 36° beam angles behind clear glass. Rated IP44, on 230V AC through an external driver.
9 W
WATTAGE
810 lm
OUTPUT
3000 K
COLOUR TEMP.
IP44
RATING
FINISH
White
Mounting
HOW IT INSTALLSRECESSED
Set into the surface — plane not specified by the manufacturer.
Technical Specifications
FROM CMS RECORD · LFSLR-9W-3K-IP44-WHLUMINAIRE DETAILS
Product CodeLFSLR-9W-3K-IP44-WH
Product TypeSpot Light
Application AreaIndoor
PRODUCT DETAILS
Wattage9 W
Colour Temp.3000 K
IP RatingIP44
Chip TypeCOB
Luminous Flux810 lm
CRI> 80
Beam Angle24° / 36°
Life Time50,000 Hours
DriverExternal
DimmingNon-Dimmable (On/Off)
Input Voltage230V AC
PHYSICAL DETAILS
Housing MaterialAlu Die Cast
Diffuser MaterialGlass
SizeØ 72 × H 60 mm
Cutout60 mm
Operating Temp.-20°C to +40°C
Storage Temp.-20°C to +50°C
Photometrics
810 lm
LUMEN OUTPUT
24 °
BEAM ANGLE
—
CENTRE BEAM
—
EFFICACY
3000 K
COLOUR TEMP.
80
CRI
