ARCHITECTURAL LED LIGHTING
PRODUCT DATASHEET
REV 01 · 2026 · 17/08
INDOOR LIGHTING · SPOT LIGHTS

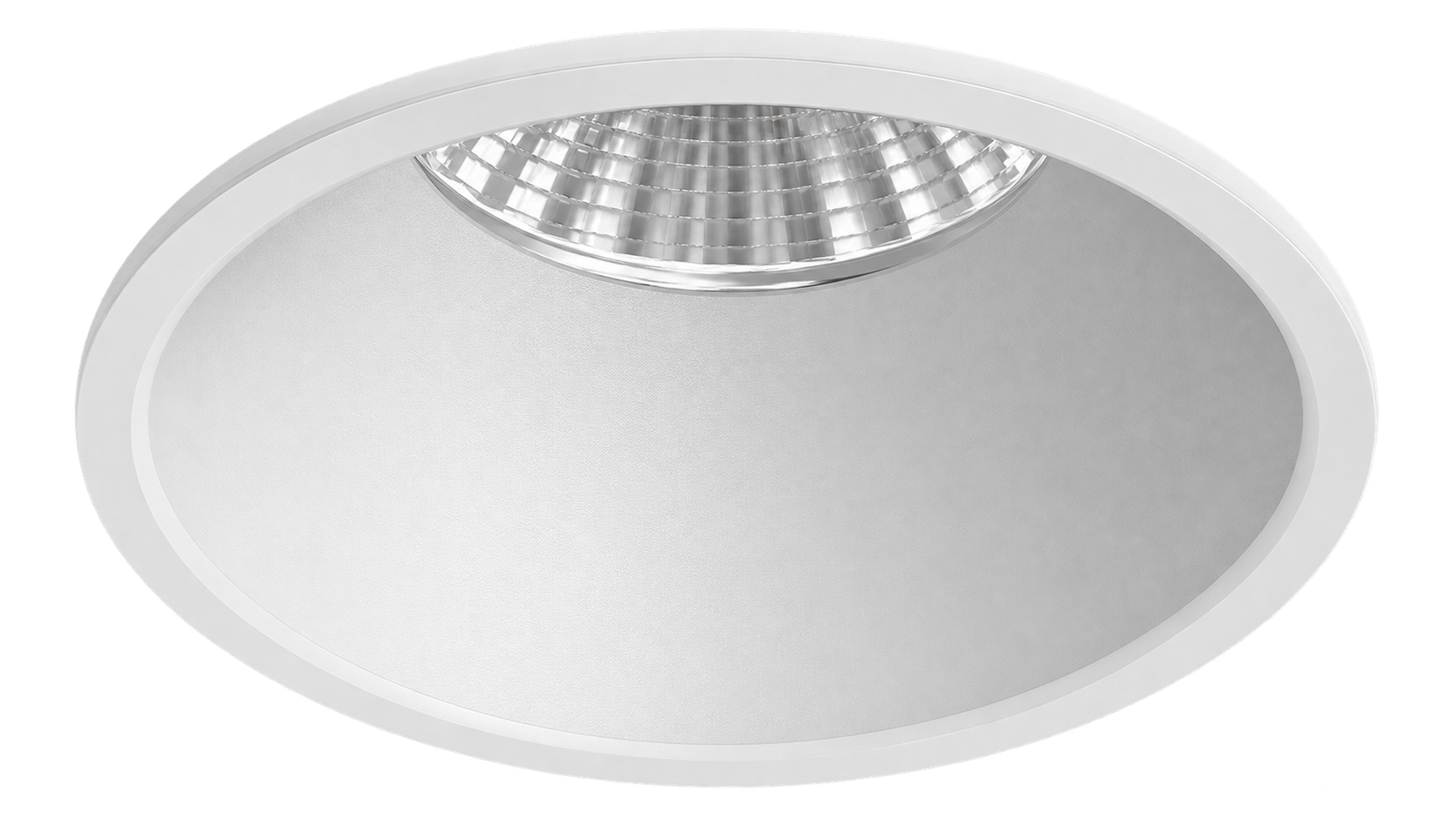

Spot Light 9W
recessed
LFSLR-9W-3K-IP44-WH
A 9 W recessed spot in a Ø72 mm body with a 60 mm cutout, producing 810 lm across selectable 24° or 36° beam angles behind clear glass. Rated IP44, on 230V AC through an external driver.
MOUNTING
Recessed
LUMINAIRE DETAILS
Product Code
LFSLR-9W-3K-IP44-WH
Product Type
Spot Light
Application Area
Indoor
PRODUCT DETAILS
Wattage
9 W
Colour Temp.
3000 K
IP Rating
IP44
Chip Type
COB
Luminous Flux
810 lm
CRI
> 80
Beam Angle
24° / 36°
Life Time
50,000 Hours
Driver
External
Dimming
Non-Dimmable (On/Off)
Input Voltage
230V AC
PHYSICAL DETAILS
Housing Material
Alu Die Cast
Diffuser Material
Glass
Size
Ø 72 × H 60 mm
Cutout
60 mm
Operating Temp.
-20°C to +40°C
Storage Temp.
-20°C to +50°C
DIMENSIONAL DRAWING · MM
IMAGE TO BE SUPPLIED
PHOTOMETRIC · POLAR
LIGHT DISTRIBUTION
24°36°
FINISHES
White
LED
CreeBridgeluxEpistar
DRIVER
LifudEagleriseLuxflare
SUMMARY
WATTAGE
9
CCT
3000
INGRESS
44
FINISH
WH
Technical data in accordance with EN 60598-1, EN 62031, EN IEC 63000 (RoHS), EU LVD 2014/35/EU and EN/IEC 60529 (IP code). We reserve the right to make technical and design changes.
