INDOOR LIGHTING · SPOT LIGHTS
LFSLR-1W-3/4/5K-IP40-SG

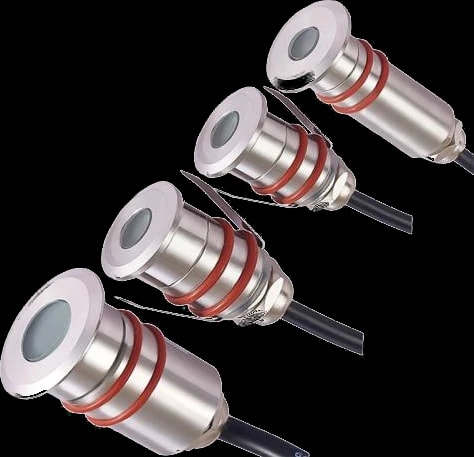

Spot Light 1W Ø15 miniature
A 1 W recessed spot on a Ø15 mm body with a 10 mm cutout — small enough for joinery and display-case lighting. An SMD/COB source gives a wide 110° spread at 30 lm in 3000K, 4000K or 5000K, rated IP40.
1 W
WATTAGE
30 lm
OUTPUT
3000 / 4000 / 5000 K
COLOUR TEMP.
IP40
RATING
FINISH
Silver Gray
Mounting
HOW IT INSTALLSRECESSED
Set into the surface — plane not specified by the manufacturer.
Technical Specifications
FROM CMS RECORD · LFSLR-1W-3/4/5K-IP40-SGLUMINAIRE DETAILS
Product CodeLFSLR-1W-3/4/5K-IP40-SG
Product TypeSpot Light
Application AreaIndoor
PRODUCT DETAILS
Wattage1 W
Colour Temp.3000 / 4000 / 5000 K
IP RatingIP40
Chip TypeSMD/COB
Luminous Flux30 lm
CRI> 80
Beam Angle110°
Life Time50,000 Hours
DriverInternal / External
DimmingNon-Dimmable (On/Off)
Input Voltage230V AC/12V DC
PHYSICAL DETAILS
Housing MaterialAlu Die Cast
Diffuser MaterialGlass
SizeØ 15 × H 16 mm
Cutout10 mm
Operating Temp.-20°C to +40°C
Storage Temp.-20°C to +50°C
Photometrics
30 lm
LUMEN OUTPUT
110 °
BEAM ANGLE
—
CENTRE BEAM
—
EFFICACY
3000 K
COLOUR TEMP.
80
CRI
