ARCHITECTURAL LED LIGHTING
PRODUCT DATASHEET
REV 00 · 2026 · 27/07
INDOOR LIGHTING · SPOT LIGHTS

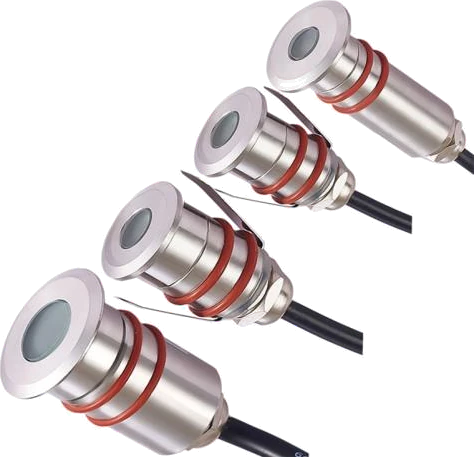

Spot Light 1W Ø15
miniature
LFSLR-1W-3/4/5K-IP40-SG
A 1 W recessed spot on a Ø15 mm body with a 10 mm cutout — small enough for joinery and display-case lighting. An SMD/COB source gives a wide 110° spread at 30 lm in 3000K, 4000K or 5000K, rated IP40.
MOUNTING
Recessed
LUMINAIRE DETAILS
Product Code
LFSLR-1W-3/4/5K-IP40-SG
Product Type
Spot Light
Application Area
Indoor
PRODUCT DETAILS
Wattage
1 W
Colour Temp.
3000 / 4000 / 5000 K
IP Rating
IP40
Chip Type
SMD/COB
Luminous Flux
30 lm
CRI
> 80
Beam Angle
110°
Life Time
50,000 Hours
Driver
Internal / External
Dimming
Non-Dimmable (On/Off)
Input Voltage
230V AC/12V DC
PHYSICAL DETAILS
Housing Material
Alu Die Cast
Diffuser Material
Glass
Size
Ø 15 × H 16 mm
Cutout
10 mm
Operating Temp.
-20°C to +40°C
Storage Temp.
-20°C to +50°C
DIMENSIONAL DRAWING · MM
IMAGE TO BE SUPPLIED
PHOTOMETRIC · POLAR
LIGHT DISTRIBUTION
110°
FINISHES
Silver Gray
LED
BridgeluxEpistarOsram
DRIVER
LifudEagleriseLuxflare
SUMMARY
WATTAGE
1
CCT
3000 · 4000 · 5000
INGRESS
40
FINISH
SG
Technical data in accordance with EN 60598-1, EN 62031, EN IEC 63000 (RoHS), EU LVD 2014/35/EU and EN/IEC 60529 (IP code). We reserve the right to make technical and design changes.
