INDOOR LIGHTING · SPOT LIGHTS
LFSLCRF-8/10W-3/4/6K-75mm

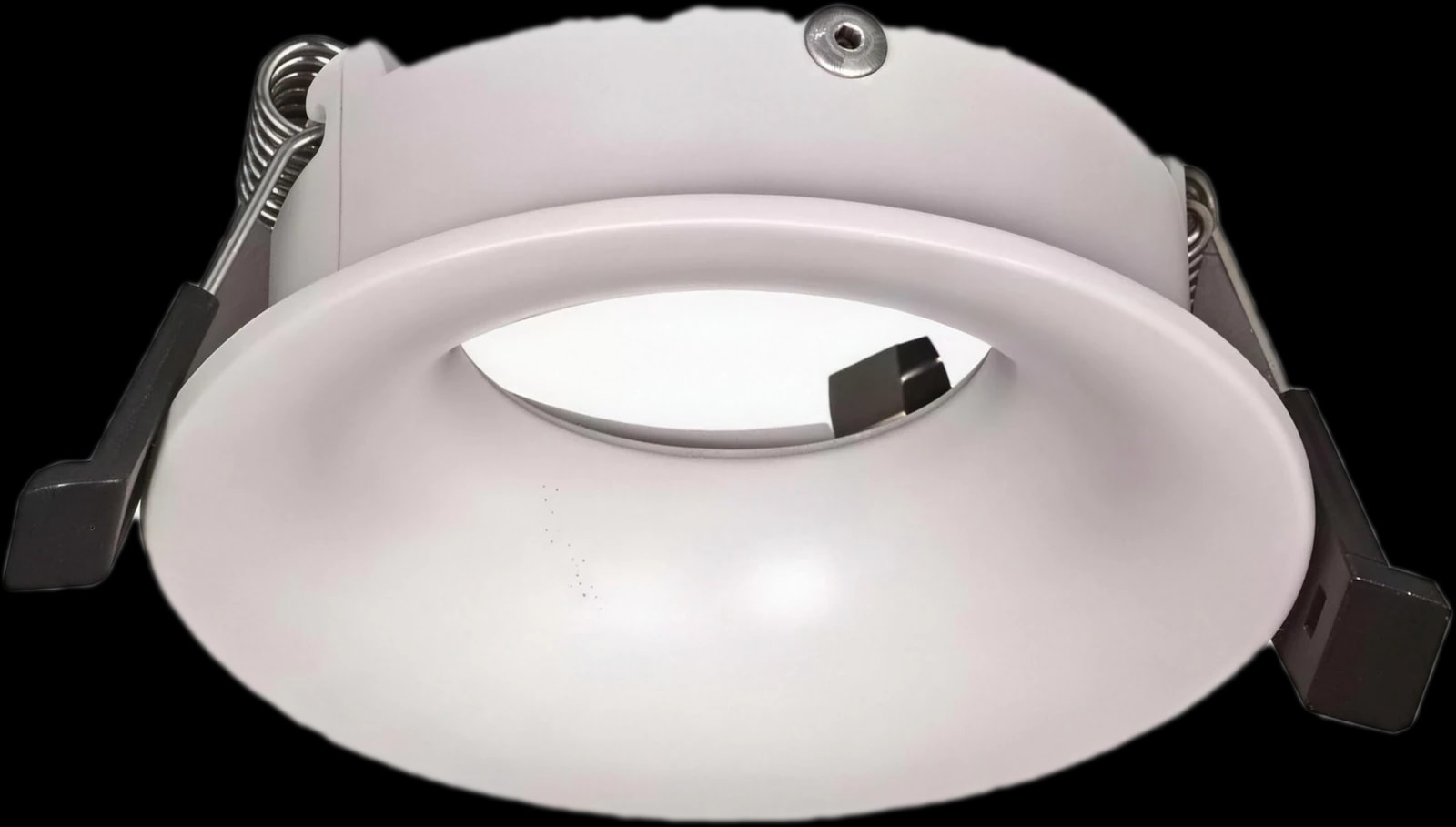

Spot Frame & Module 75 modular
A 75 mm plaster-in frame with a separate COB module — specify the aperture once and change the light engine later. 8 W or 10 W, four beam angles, and three CCTs, in white, black or silver.
8 / 10 W
WATTAGE
—
OUTPUT
3000 / 4000 / 6000 K
COLOUR TEMP.
IP20
RATING
FINISH
White
Black
Silver Gray
Mounting
HOW IT INSTALLSRECESSED
Set into the surface — plane not specified by the manufacturer.
Technical Specifications
FROM CMS RECORD · LFSLCRF-8/10W-3/4/6K-75mmLUMINAIRE DETAILS
Product CodeLFSLCRF-8/10W-3/4/6K-75mm
Product TypeSpot Light
Application AreaIndoor
PRODUCT DETAILS
Wattage8 / 10 W
Colour Temp.3000 / 4000 / 6000 K
IP RatingIP20
Chip TypeCOB
Luminous Flux880 / 1100 lm
CRI> 80
Beam Angle15° · 24° · 36° · 60°
Life Time50,000 Hours
DriverExternal
DimmingNon-Dimmable (On/Off)
Input Voltage230V AC
PHYSICAL DETAILS
Housing MaterialAlu Die Cast
Diffuser MaterialGlass
Diffuser OpticsClear
SizeØ 85 × H 33 mm
Cutout75 mm
Operating Temp.-20°C to +40°C
Storage Temp.-20°C to +50°C
Photometrics
—
LUMEN OUTPUT
24 °
BEAM ANGLE
—
CENTRE BEAM
110 lm/W
EFFICACY
3000 K
COLOUR TEMP.
80
CRI

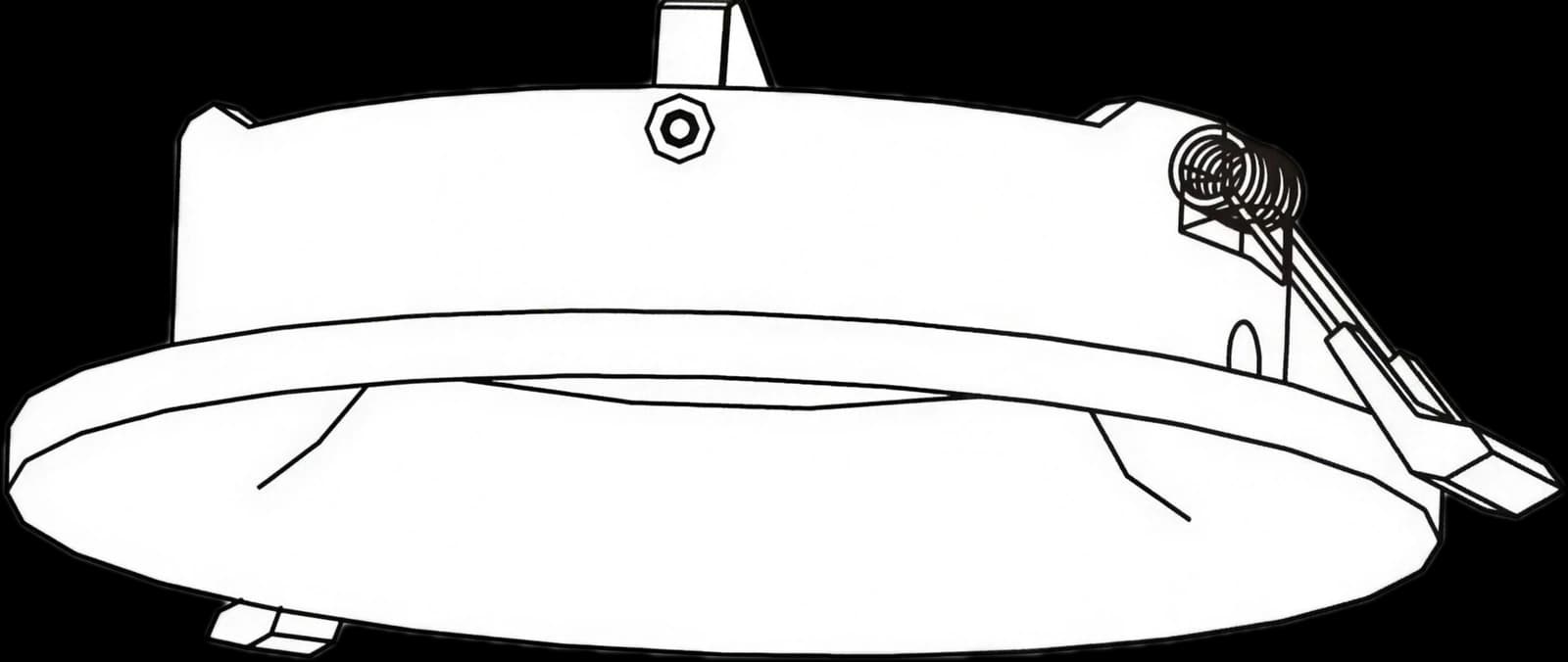

Dimensions
