ARCHITECTURAL LED LIGHTING
PRODUCT DATASHEET
REV 01 · 2026 · 27/07
INDOOR LIGHTING · SPOT LIGHTS

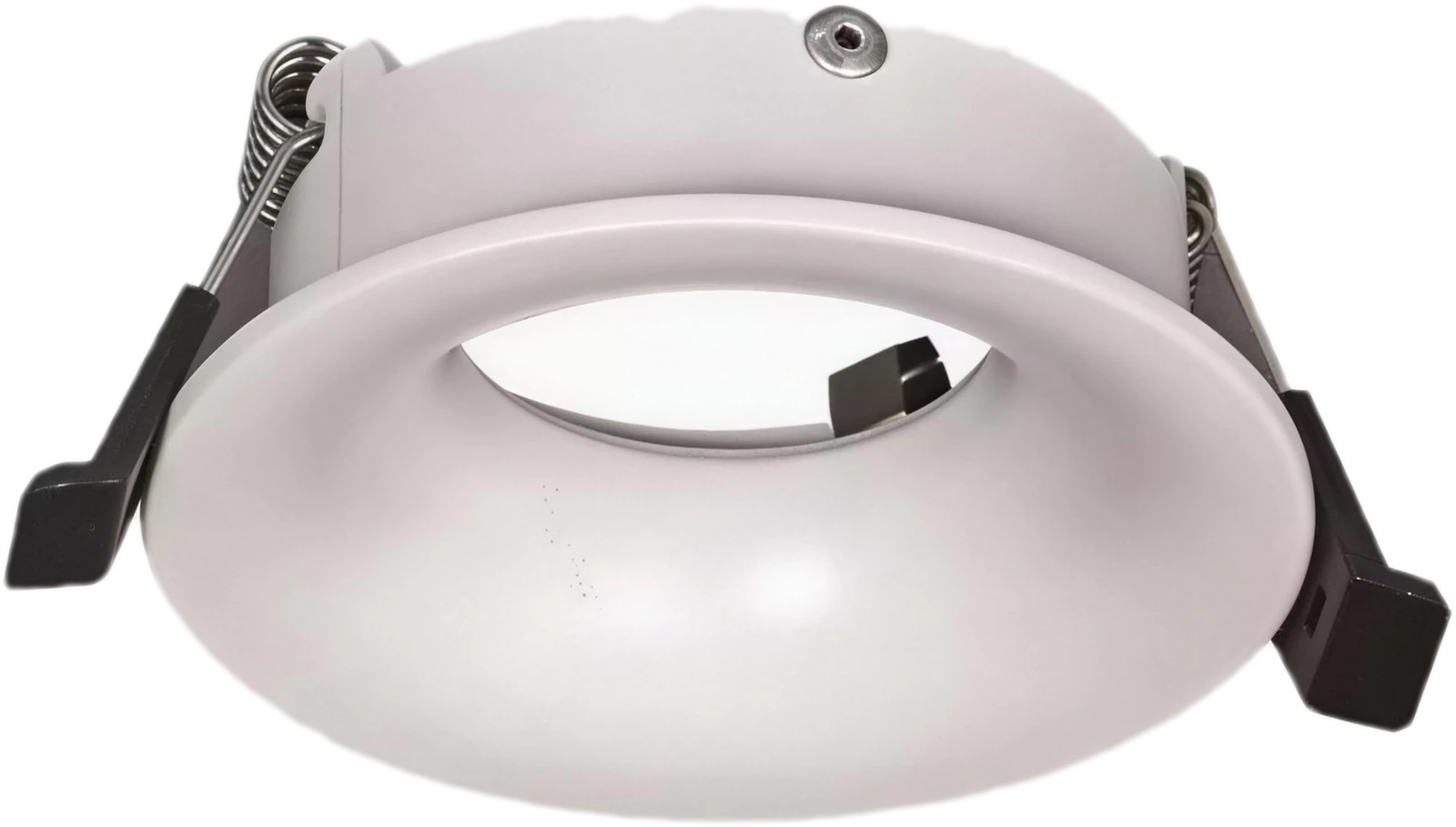

Spot Frame & Module 75
modular
LFSLCRF-8/10W-3/4/6K-75mm
A 75 mm plaster-in frame with a separate COB module — specify the aperture once and change the light engine later. 8 W or 10 W, four beam angles, and three CCTs, in white, black or silver.
MOUNTING
Recessed
LUMINAIRE DETAILS
Product Code
LFSLCRF-8/10W-3/4/6K-75mm
Product Type
Spot Light
Application Area
Indoor
PRODUCT DETAILS
Wattage
8 / 10 W
Colour Temp.
3000 / 4000 / 6000 K
IP Rating
IP20
Chip Type
COB
Luminous Flux
880 / 1100 lm
CRI
> 80
Beam Angle
15° · 24° · 36° · 60°
Life Time
50,000 Hours
Driver
External
Dimming
Non-Dimmable (On/Off)
Input Voltage
230V AC
PHYSICAL DETAILS
Housing Material
Alu Die Cast
Diffuser Material
Glass
Diffuser Optics
Clear
Size
Ø 85 × H 33 mm
Cutout
75 mm
Operating Temp.
-20°C to +40°C
Storage Temp.
-20°C to +50°C

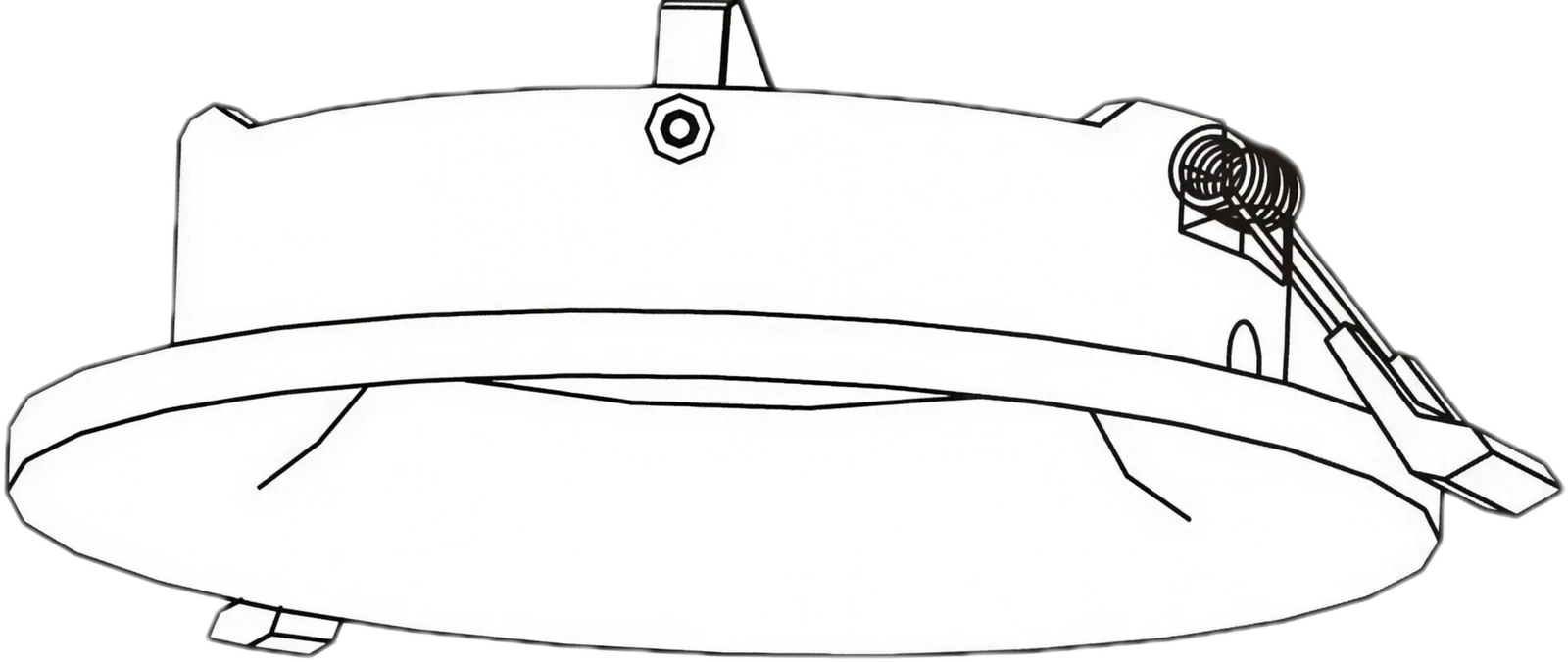

DIMENSIONAL DRAWING · MM
PHOTOMETRIC · POLAR
LIGHT DISTRIBUTION
15°24°36°60°
FINISHES
White
Black
Silver Gray
LED
CreeBridgeluxOsram
DRIVER
VSLifudLuxflare
SUMMARY
WATTAGE
8 · 10
CCT
3000 · 4000 · 6000
INGRESS
20
FINISH
WH · BK · SG
Technical data in accordance with EN 60598-1, EN 62031, EN IEC 63000 (RoHS), EU LVD 2014/35/EU and EN/IEC 60529 (IP code). We reserve the right to make technical and design changes.
