OUTDOOR LIGHTING · IN-GROUND
LFIGFR-15W-__K-IP67-WH/SG

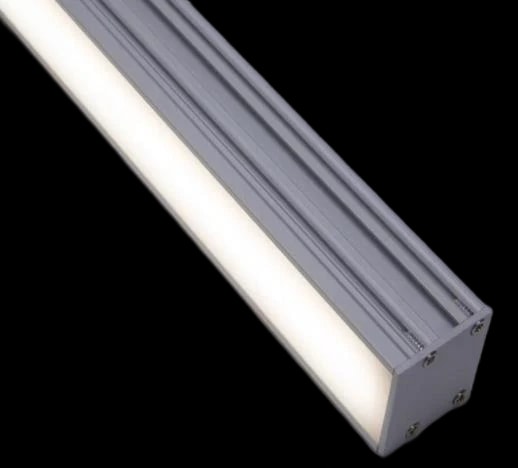

RGBW Inground Linear Light rgbw linear
A 1000 mm RGBW colour-changing inground linear light, 15 W in an extruded aluminium body behind a polycarbonate diffuser at 180°, run from 24V DC. Rated IP67, in white or silver-grey. Colour-changing output has no single correlated colour temperature, so CCT is not specified.
15 W
WATTAGE
600 lm
OUTPUT
—
COLOUR TEMP.
IP67
RATING
FINISH
White
Silver Gray
Mounting
HOW IT INSTALLSFLOOR RECESSED
Buried flush into floors or ground, shining upward.
Technical Specifications
FROM CMS RECORD · LFIGFR-15W-__K-IP67-WH/SGLUMINAIRE DETAILS
Product CodeLFIGFR-15W-__K-IP67-WH/SG
Product TypeIn-ground Light
Application AreaOutdoor
PRODUCT DETAILS
Wattage15 W
Colour Temp.—
IP RatingIP67
Chip TypeCOB
Luminous Flux600 lm
CRI> 80
Beam Angle180°
Life Time50,000 Hours
DriverExternal
DimmingNon-Dimmable (On/Off)
Input Voltage24V DC
PHYSICAL DETAILS
Housing MaterialAluminium (Extruded)
Diffuser MaterialPolycarbonate (PC)
SizeL 1000 × W 26 × H 25 mm
Operating Temp.-20°C to +55°C
Storage Temp.-20°C to +80°C
Photometrics
600 lm
LUMEN OUTPUT
180 °
BEAM ANGLE
—
CENTRE BEAM
—
EFFICACY
—
COLOUR TEMP.
80
CRI
