INDOOR LIGHTING · LINEAR PROFILES
LFLLCR-20W-3K-IP20-1M
Recessed Linear Light 20W 1M plaster-in
A recessed linear profile that sits flush in the ceiling plane, with an integrated driver and a 180° opal diffuser for an unbroken, glare-free line. Supplied by the metre for continuous runs.
20 W
WATTAGE
1400 lm
OUTPUT
3000 K
COLOUR TEMP.
IP20
RATING
FINISH
White
Black
Mounting
HOW IT INSTALLSCEILING RECESSED
Set up into the ceiling — only the light face shows.
Technical Specifications
FROM CMS RECORD · LFLLCR-20W-3K-IP20-1MLUMINAIRE DETAILS
Product CodeLFLLCR-20W-3K-IP20-1M
Product TypeLinear Light
Application AreaIndoor
PRODUCT DETAILS
Wattage20 W
Colour Temp.3000 K
IP RatingIP20
Chip TypeSMD
Luminous Flux1400 lm
CRI> 80
Beam Angle180°
Life Time50,000 Hours
DriverIntegrated
DimmingNon-Dimmable (On/Off)
Input Voltage230V AC
PHYSICAL DETAILS
Housing MaterialAluminium (Extruded)
Diffuser MaterialPolycarbonate (PC)
Diffuser OpticsOpal
SizeL 1000 x W 50 x H 75mm
Operating Temp.-20°C to +40°C
Storage Temp.-20°C to +50°C
Photometrics
1400 lm
LUMEN OUTPUT
180 °
BEAM ANGLE
—
CENTRE BEAM
—
EFFICACY
3000 K
COLOUR TEMP.
80
CRI

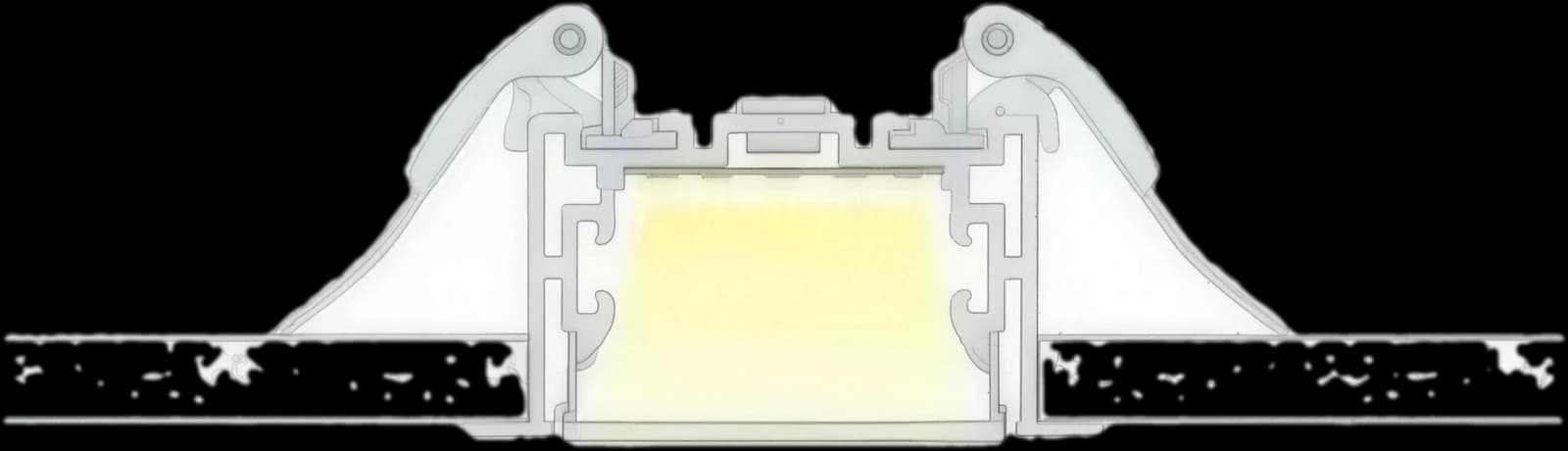

Dimensions
