ARCHITECTURAL LED LIGHTING
PRODUCT DATASHEET
REV 01 · 2026 · 27/07
INDOOR LIGHTING · LINEAR PROFILES
Recessed Linear Light 20W 1M
plaster-in
LFLLCR-20W-3K-IP20-1M
A recessed linear profile that sits flush in the ceiling plane, with an integrated driver and a 180° opal diffuser for an unbroken, glare-free line. Supplied by the metre for continuous runs.
MOUNTING
Ceiling recessed
LUMINAIRE DETAILS
Product Code
LFLLCR-20W-3K-IP20-1M
Product Type
Linear Light
Application Area
Indoor
PRODUCT DETAILS
Wattage
20 W
Colour Temp.
3000 K
IP Rating
IP20
Chip Type
SMD
Luminous Flux
1400 lm
CRI
> 80
Beam Angle
180°
Life Time
50,000 Hours
Driver
Integrated
Dimming
Non-Dimmable (On/Off)
Input Voltage
230V AC
PHYSICAL DETAILS
Housing Material
Aluminium (Extruded)
Diffuser Material
Polycarbonate (PC)
Diffuser Optics
Opal
Size
L 1000 x W 50 x H 75mm
Operating Temp.
-20°C to +40°C
Storage Temp.
-20°C to +50°C

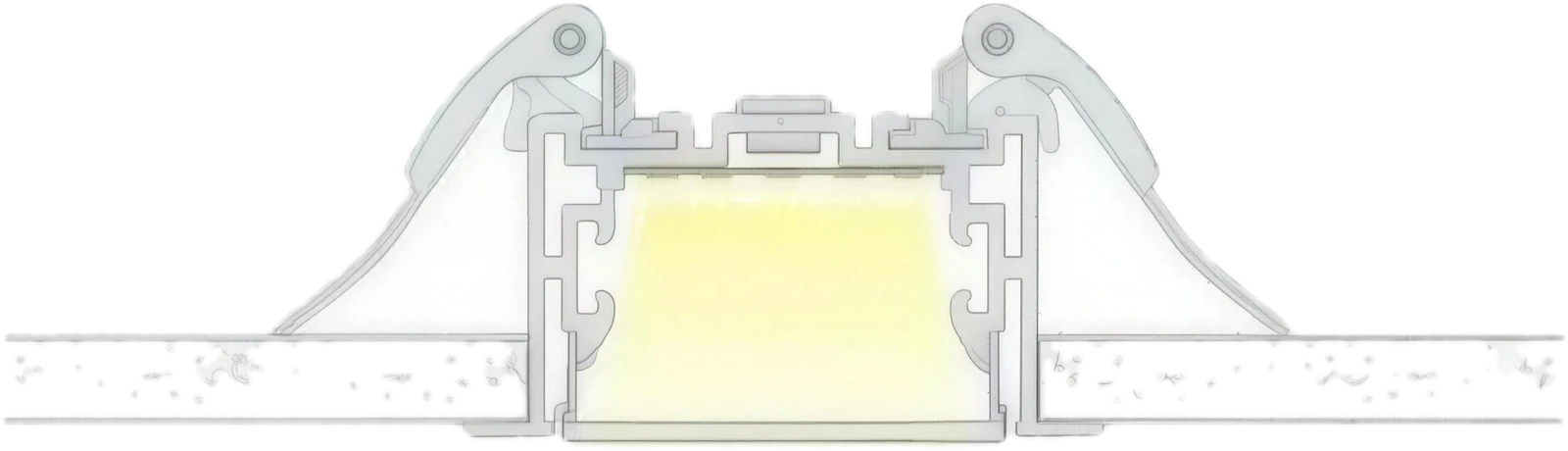

DIMENSIONAL DRAWING · MM
PHOTOMETRIC · POLAR
LIGHT DISTRIBUTION
180°
FINISHES
White
Black
LED
BridgeluxEpistarOsram
DRIVER
VSLifudEagleriseLuxflare
SUMMARY
WATTAGE
20
CCT
3000
INGRESS
20
FINISH
WH · BK
Technical data in accordance with EN 60598-1, EN 62031, EN IEC 63000 (RoHS), EU LVD 2014/35/EU and EN/IEC 60529 (IP code). We reserve the right to make technical and design changes.
