OUTDOOR LIGHTING · LED DOWNLIGHTS
LFDLCR-15W-3K-IP67

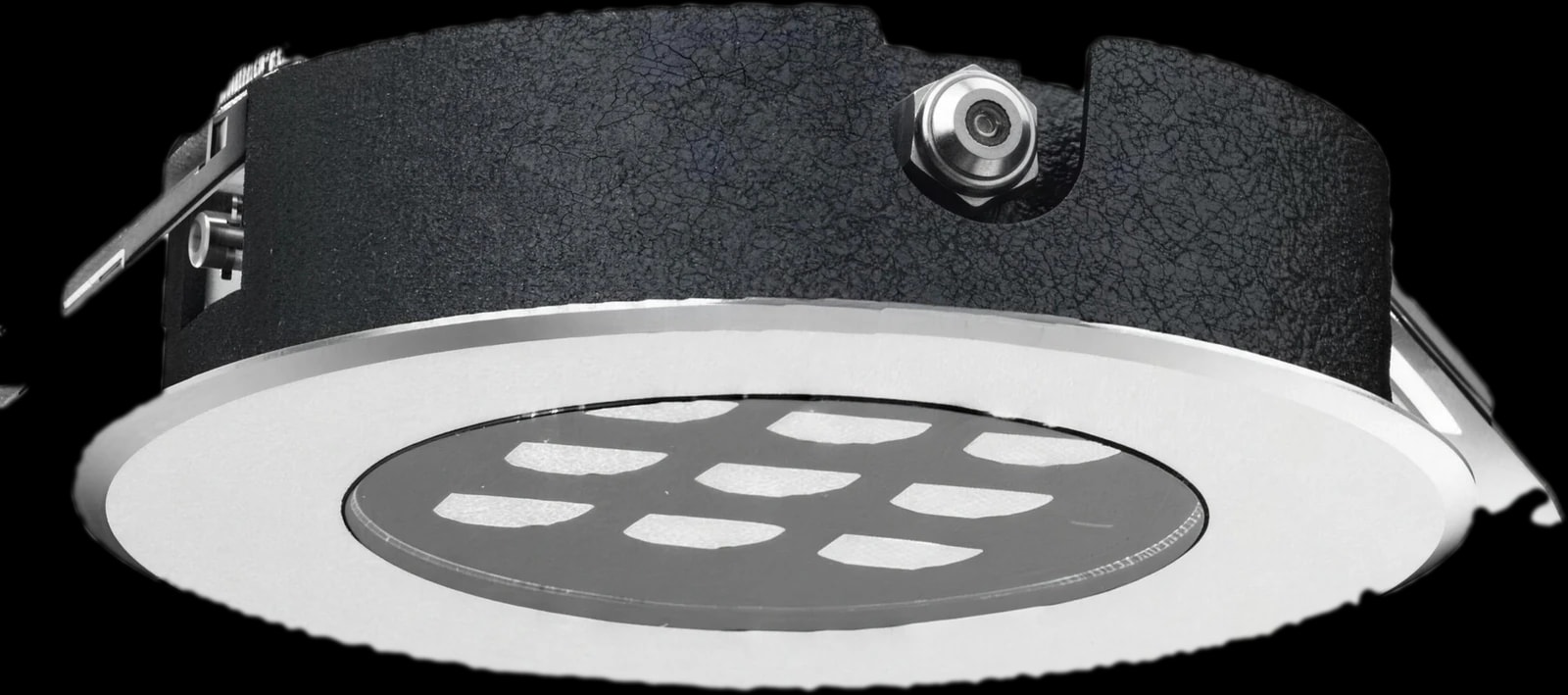

Recessed Downlight IP67 IP67 recessed
A Ø170 mm recessed downlight for exterior use, 15 W COB/SMD behind a glass diffuser with five selectable beam angles from 8° to 60°, and dual voltage input (230V AC or 24V DC). Rated IP67.
15 W
WATTAGE
1995 lm
OUTPUT
3000 K
COLOUR TEMP.
IP67
RATING
FINISH
White
Mounting
HOW IT INSTALLSRECESSED
Set into the surface — plane not specified by the manufacturer.
Technical Specifications
FROM CMS RECORD · LFDLCR-15W-3K-IP67LUMINAIRE DETAILS
Product CodeLFDLCR-15W-3K-IP67
Product TypeDown Light
Application AreaOutdoor
PRODUCT DETAILS
Wattage15 W
Colour Temp.3000 K
IP RatingIP67
Chip TypeCOB · SMD
Luminous Flux1995 lm
CRI> 80
Beam Angle8° · 15° · 30° · 45° · 60°
Life Time50,000 Hours
DriverExternal / Integrated
DimmingNon-Dimmable (On/Off)
Input Voltage230V AC · 24V DC
PHYSICAL DETAILS
Housing MaterialAlu Die Cast
Diffuser MaterialGlass
Diffuser OpticsClear
SizeØ 170 × H 43 mm
Operating Temp.-20°C to +55°C
Storage Temp.-20°C to +80°C
Photometrics
1995 lm
LUMEN OUTPUT
8 °
BEAM ANGLE
—
CENTRE BEAM
—
EFFICACY
3000 K
COLOUR TEMP.
80
CRI
Dimensions
