ARCHITECTURAL LED LIGHTING
PRODUCT DATASHEET
REV 02 · 2026 · 27/07
OUTDOOR LIGHTING · LED DOWNLIGHTS

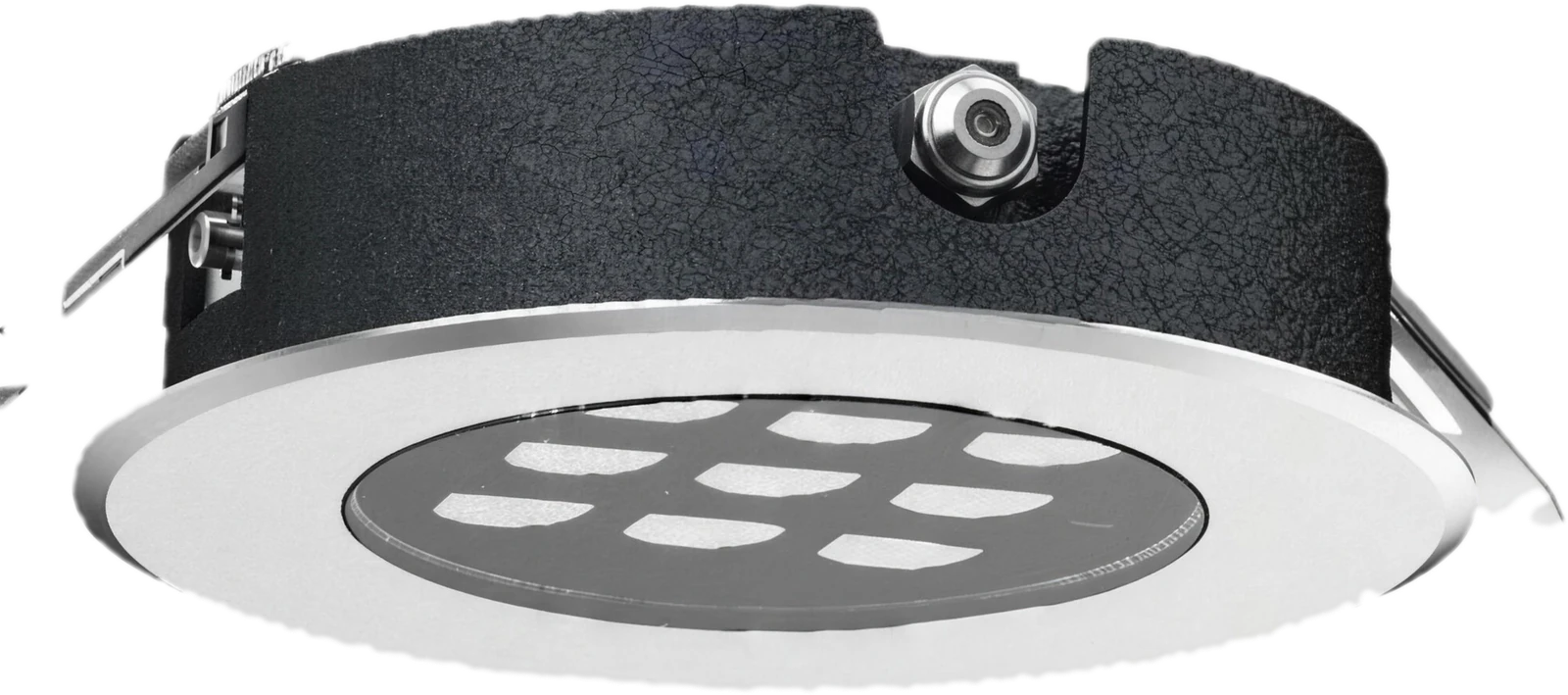

Recessed Downlight IP67
IP67 recessed
LFDLCR-15W-3K-IP67
A Ø170 mm recessed downlight for exterior use, 15 W COB/SMD behind a glass diffuser with five selectable beam angles from 8° to 60°, and dual voltage input (230V AC or 24V DC). Rated IP67.
MOUNTING
Recessed
LUMINAIRE DETAILS
Product Code
LFDLCR-15W-3K-IP67
Product Type
Down Light
Application Area
Outdoor
PRODUCT DETAILS
Wattage
15 W
Colour Temp.
3000 K
IP Rating
IP67
Chip Type
COB · SMD
Luminous Flux
1995 lm
CRI
> 80
Beam Angle
8° · 15° · 30° · 45° · 60°
Life Time
50,000 Hours
Driver
External / Integrated
Dimming
Non-Dimmable (On/Off)
Input Voltage
230V AC · 24V DC
PHYSICAL DETAILS
Housing Material
Alu Die Cast
Diffuser Material
Glass
Diffuser Optics
Clear
Size
Ø 170 × H 43 mm
Operating Temp.
-20°C to +55°C
Storage Temp.
-20°C to +80°C

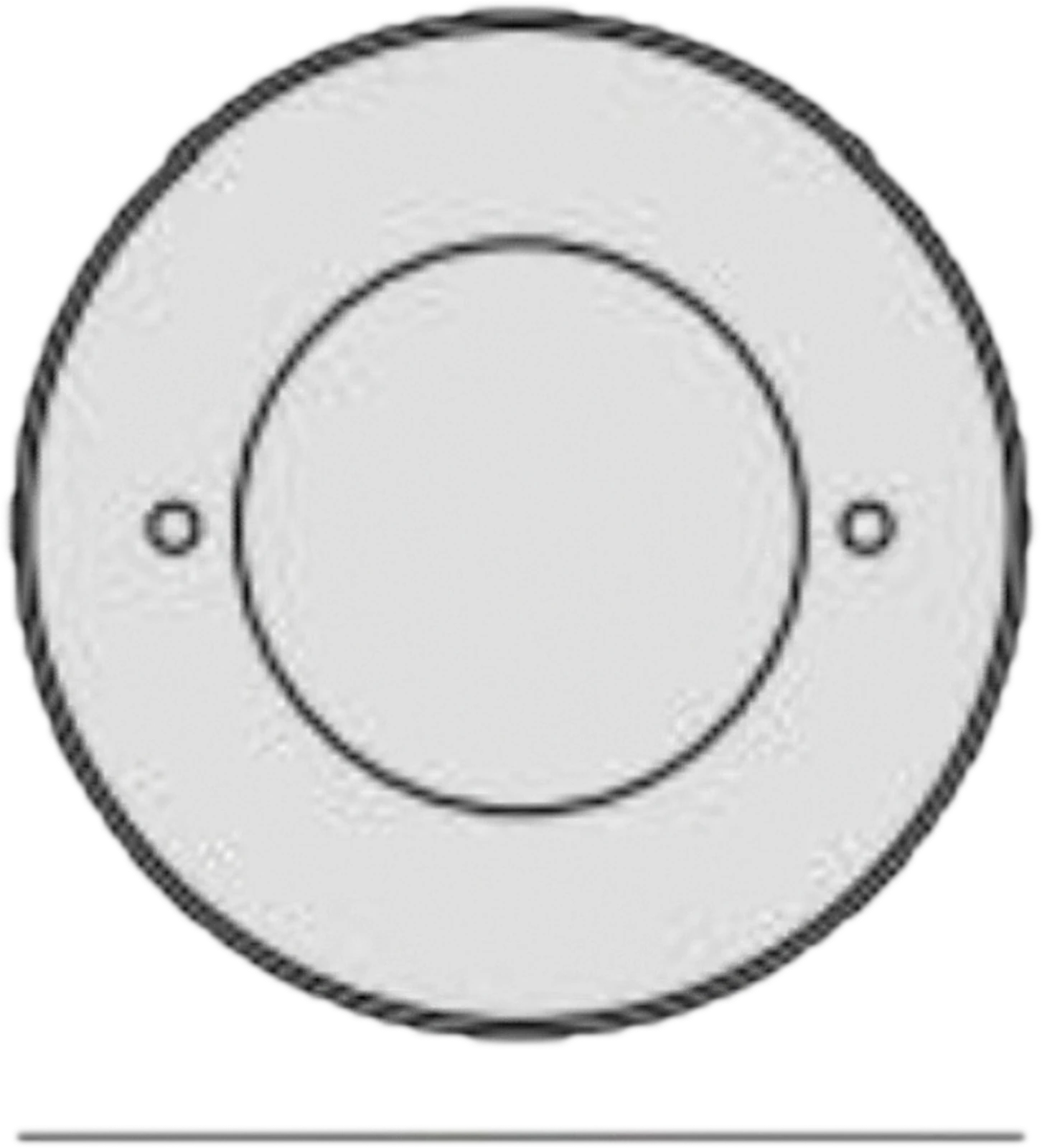

DIMENSIONAL DRAWING · MM
PHOTOMETRIC · POLAR
LIGHT DISTRIBUTION
8°15°30°45°60°
FINISHES
White
LED
CreeBridgeluxEpistar
DRIVER
LifudLuxflare
SUMMARY
WATTAGE
15
CCT
3000
INGRESS
67
FINISH
WH
Technical data in accordance with EN 60598-1, EN 62031, EN IEC 63000 (RoHS), EU LVD 2014/35/EU and EN/IEC 60529 (IP code). We reserve the right to make technical and design changes.
