OUTDOOR LIGHTING · LED DOWNLIGHTS
LFDLCR-15W-6K-IP44

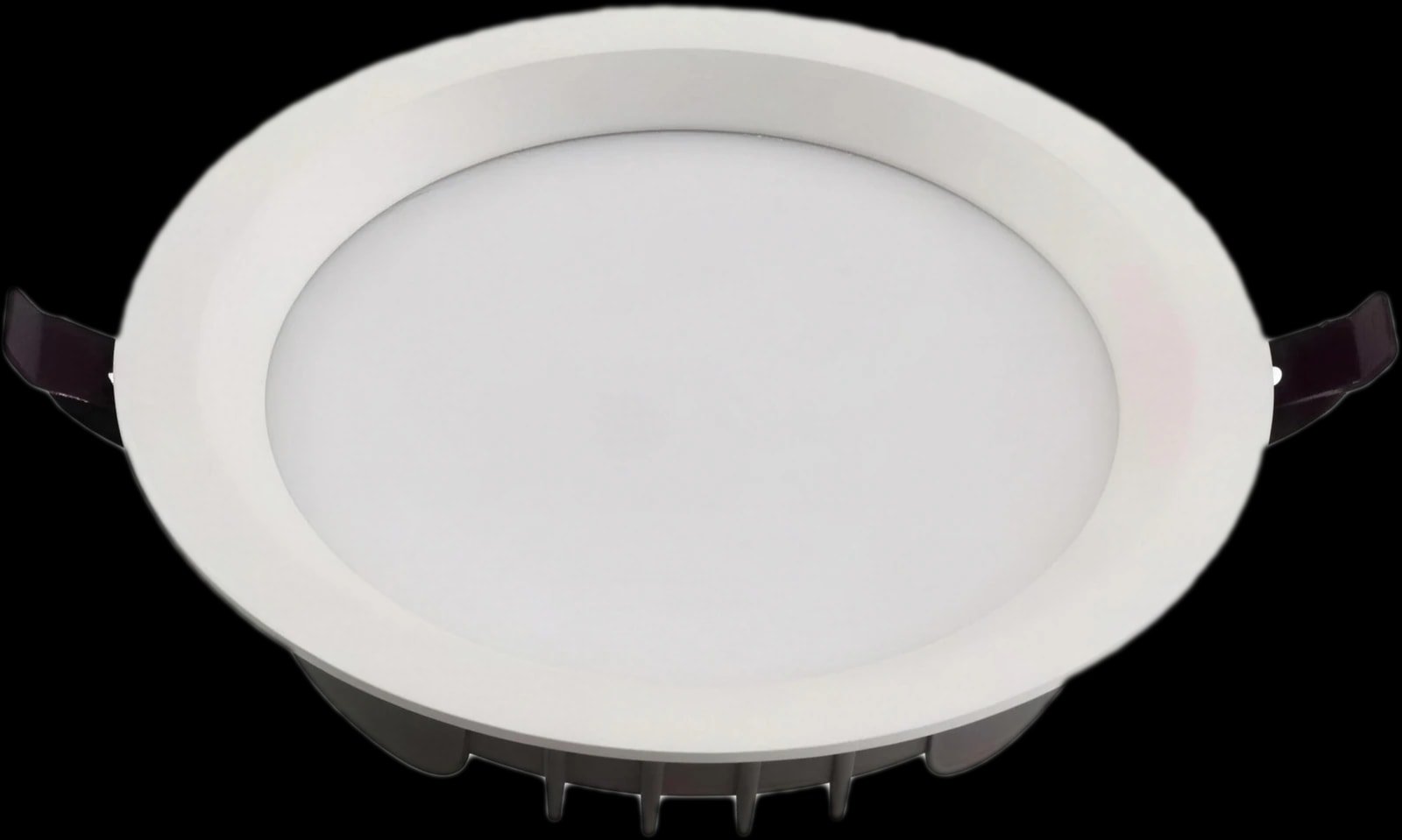

Recessed Downlight 6000K 6000K recessed
Recessed LED downlight in cool 6000K — die-cast aluminium with an opal PC diffuser and interchangeable 30°/45° optics for covered exterior soffits.
15 W
WATTAGE
1500 lm
OUTPUT
6000 K
COLOUR TEMP.
IP44
RATING
FINISH
White
Mounting
HOW IT INSTALLSRECESSED
Set into the surface — plane not specified by the manufacturer.
Technical Specifications
FROM CMS RECORD · LFDLCR-15W-6K-IP44LUMINAIRE DETAILS
Product CodeLFDLCR-15W-6K-IP44
Product TypeDown Light
Application AreaOutdoor
PRODUCT DETAILS
Wattage15 W
Colour Temp.6000 K
IP RatingIP44
Chip TypeCOB · SMD
Luminous Flux1500 lm
CRI> 80
Beam Angle30° · 45°
Life Time50,000 Hours
DriverExternal / Integrated
DimmingNon-Dimmable (On/Off)
Input Voltage230V AC
PHYSICAL DETAILS
Housing MaterialAlu Die Cast
Diffuser MaterialPolycarbonate (PC)
Diffuser OpticsOpal
SizeDia 155 x H 38mm
Cutout140 mm
Operating Temp.-20°C to +55°C
Storage Temp.-20°C to +80°C
Photometrics
1500 lm
LUMEN OUTPUT
30 °
BEAM ANGLE
—
CENTRE BEAM
—
EFFICACY
6000 K
COLOUR TEMP.
80
CRI
Dimensions
