ARCHITECTURAL LED LIGHTING
PRODUCT DATASHEET
REV 01 · 2026 · 27/07
OUTDOOR LIGHTING · LED DOWNLIGHTS

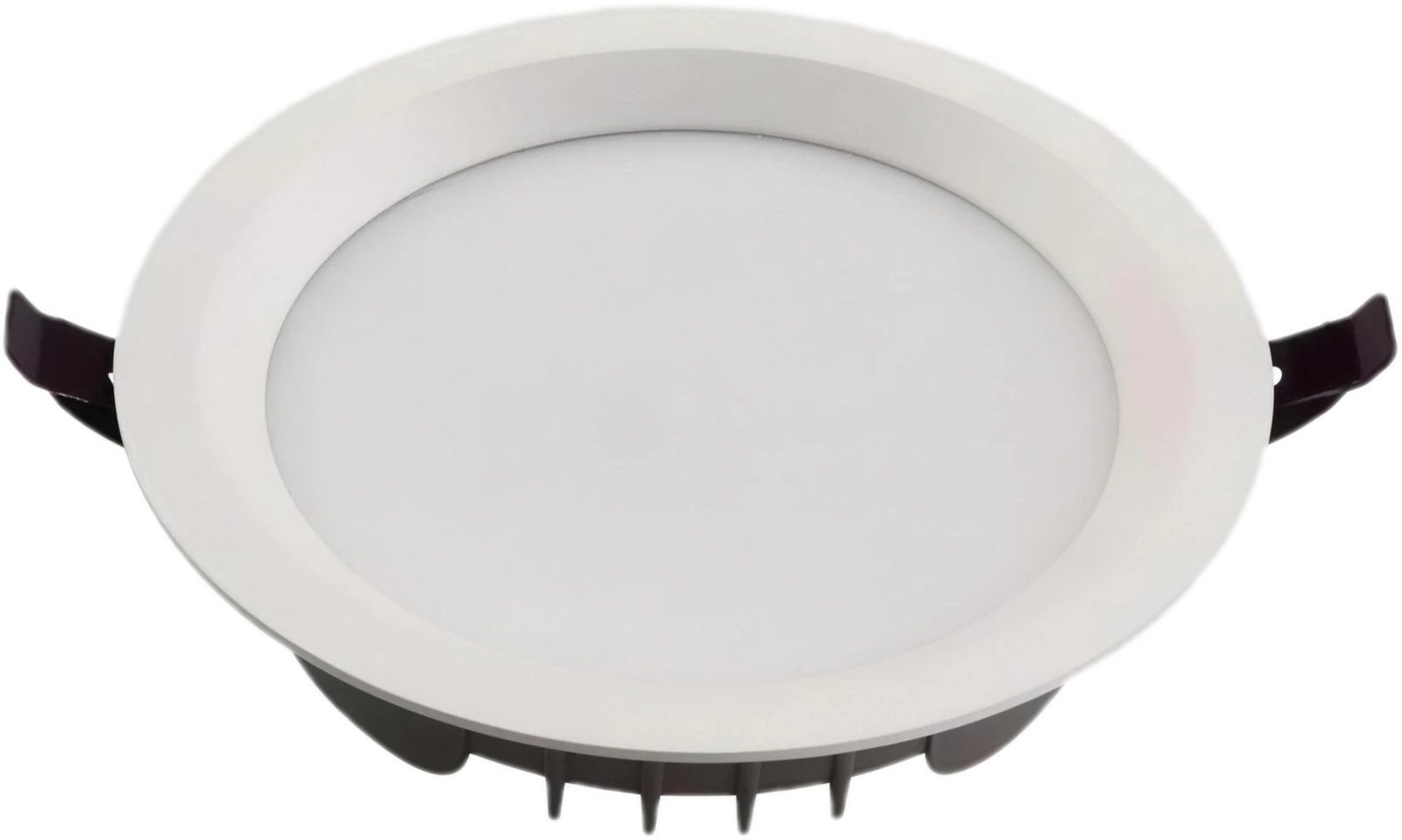

Recessed Downlight 6000K
6000K recessed
LFDLCR-15W-6K-IP44
Recessed LED downlight in cool 6000K — die-cast aluminium with an opal PC diffuser and interchangeable 30°/45° optics for covered exterior soffits.
MOUNTING
Recessed
LUMINAIRE DETAILS
Product Code
LFDLCR-15W-6K-IP44
Product Type
Down Light
Application Area
Outdoor
PRODUCT DETAILS
Wattage
15 W
Colour Temp.
6000 K
IP Rating
IP44
Chip Type
COB · SMD
Luminous Flux
1500 lm
CRI
> 80
Beam Angle
30° · 45°
Life Time
50,000 Hours
Driver
External / Integrated
Dimming
Non-Dimmable (On/Off)
Input Voltage
230V AC
PHYSICAL DETAILS
Housing Material
Alu Die Cast
Diffuser Material
Polycarbonate (PC)
Diffuser Optics
Opal
Size
Dia 155 x H 38mm
Cutout
140 mm
Operating Temp.
-20°C to +55°C
Storage Temp.
-20°C to +80°C

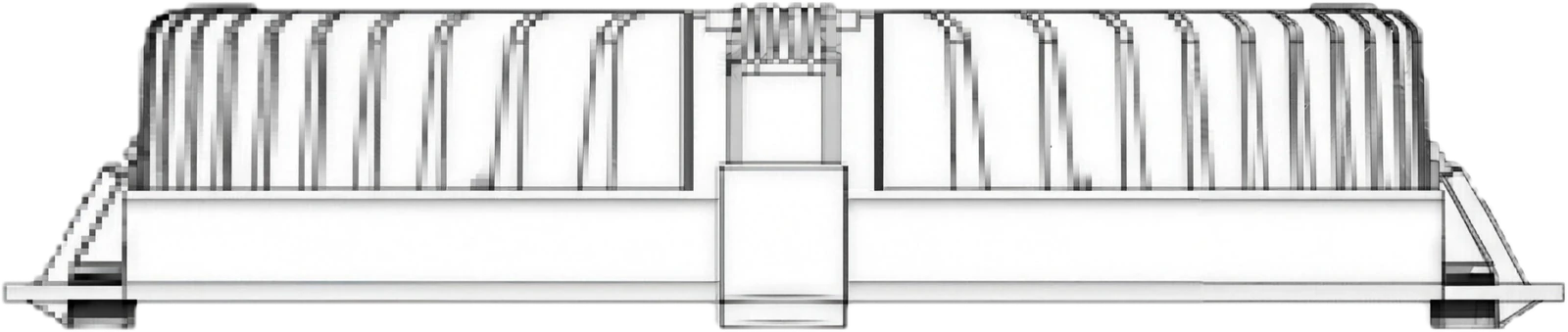

DIMENSIONAL DRAWING · MM
PHOTOMETRIC · POLAR
LIGHT DISTRIBUTION
30°45°
FINISHES
White
LED
CreeBridgeluxEpistar
DRIVER
LifudLuxflare
SUMMARY
WATTAGE
15
CCT
6000
INGRESS
44
FINISH
WH
Technical data in accordance with EN 60598-1, EN 62031, EN IEC 63000 (RoHS), EU LVD 2014/35/EU and EN/IEC 60529 (IP code). We reserve the right to make technical and design changes.
LUXFLARE LIGHTINGREV 01 · 2026 · 27/07OUTDOOR
