OUTDOOR LIGHTING · NEON FLEX
LFSRS-10W-3/4/6K-IP67-WH

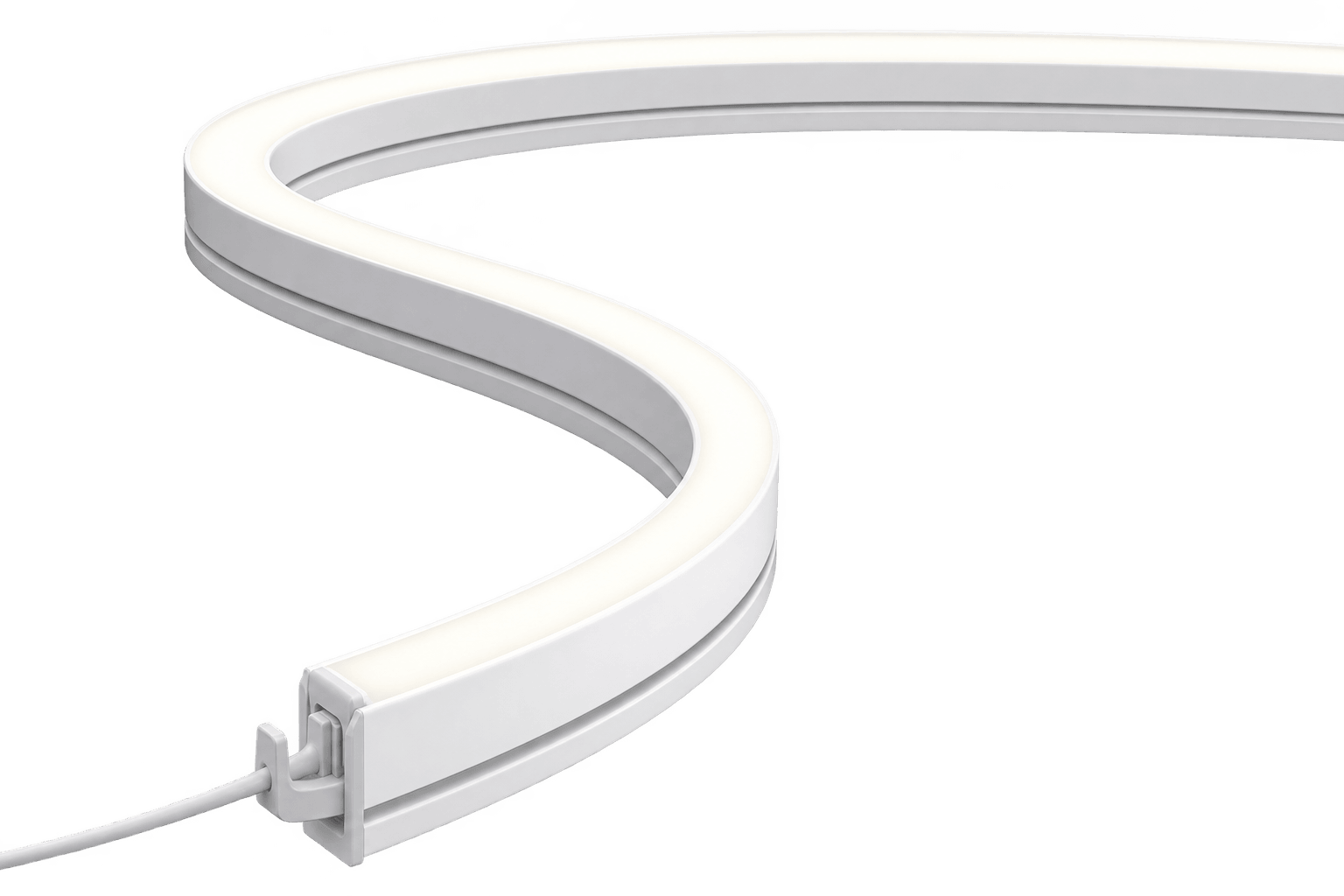

Neon Flex 10W 16×16mm neon flex
A 10 W neon flex strip in a 16 x 16 mm silicone housing, offered at 3000K, 4000K or 6000K from a 24V DC external driver behind a lensed silicone diffuser. IP67-rated, finished in white.
10 W
WATTAGE
1000 lm
OUTPUT
3000 / 4000 / 6000 K
COLOUR TEMP.
IP67
RATING
FINISH
White
Mounting
HOW IT INSTALLSSURFACE
Fixed onto the surface — plane not specified by the manufacturer.
Technical Specifications
FROM CMS RECORD · LFSRS-10W-3/4/6K-IP67-WHLUMINAIRE DETAILS
Product CodeLFSRS-10W-3/4/6K-IP67-WH
Product TypeNeon Flex
Application AreaOutdoor
PRODUCT DETAILS
Wattage10 W
Colour Temp.3000 / 4000 / 6000 K
IP RatingIP67
Chip TypeSMD
Luminous Flux1000 lm
CRI> 80
Beam Angle120°
Life Time50,000 Hours
DriverExternal
DimmingNon-Dimmable (On/Off)
Input Voltage24V DC
PHYSICAL DETAILS
Housing MaterialSilicone
Diffuser MaterialSilicone
Size16x16mm
Operating Temp.-20°C to +55°C
Storage Temp.-20°C to +80°C
Photometrics
1000 lm
LUMEN OUTPUT
120 °
BEAM ANGLE
—
CENTRE BEAM
—
EFFICACY
3000 K
COLOUR TEMP.
80
CRI
