ARCHITECTURAL LED LIGHTING
PRODUCT DATASHEET
REV 01 · 2026 · 17/08
OUTDOOR LIGHTING · NEON FLEX

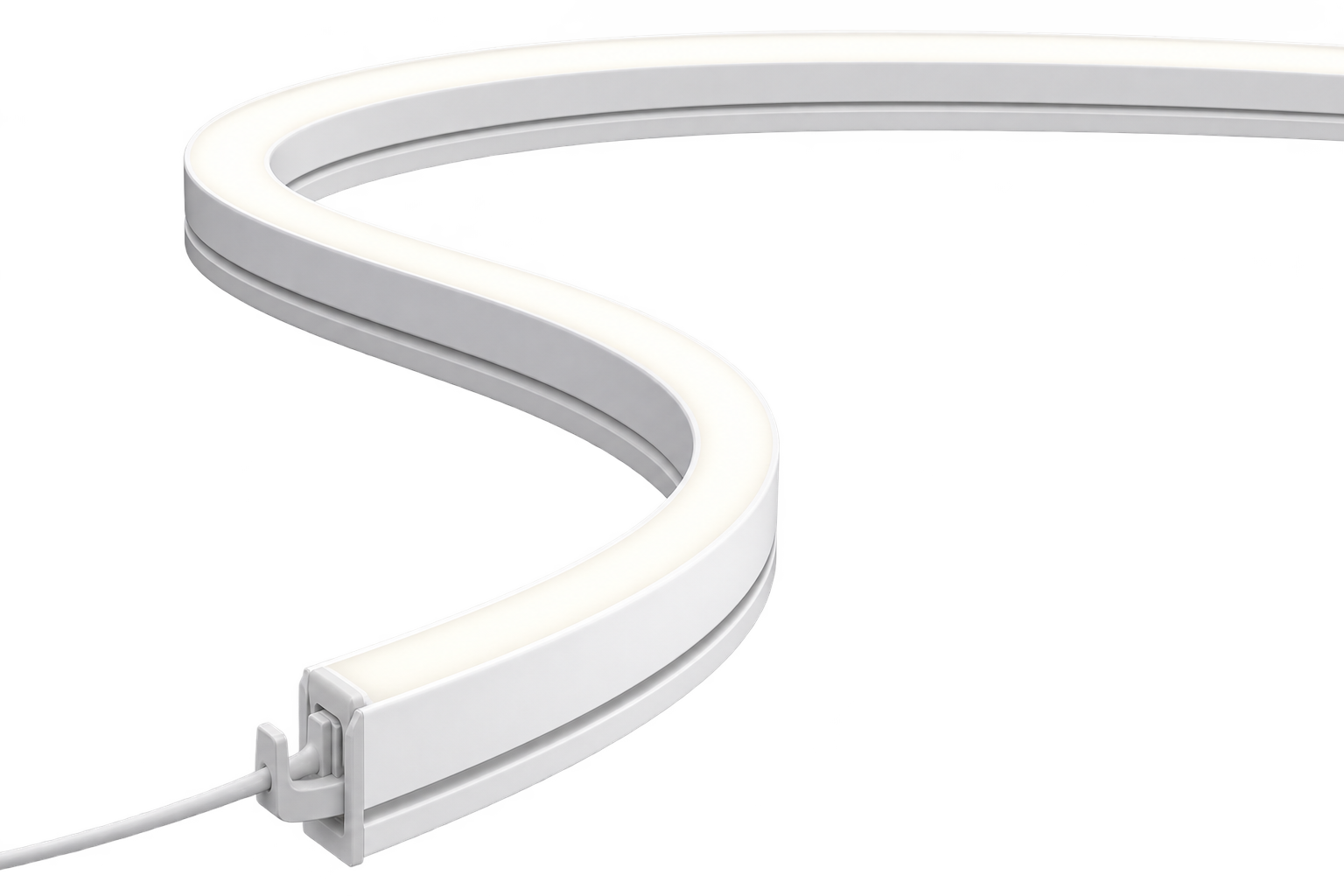

Neon Flex 10W 16×16mm
neon flex
LFSRS-10W-3/4/6K-IP67-WH
A 10 W neon flex strip in a 16 x 16 mm silicone housing, offered at 3000K, 4000K or 6000K from a 24V DC external driver behind a lensed silicone diffuser. IP67-rated, finished in white.
MOUNTING
Surface
LUMINAIRE DETAILS
Product Code
LFSRS-10W-3/4/6K-IP67-WH
Product Type
Neon Flex
Application Area
Outdoor
PRODUCT DETAILS
Wattage
10 W
Colour Temp.
3000 / 4000 / 6000 K
IP Rating
IP67
Chip Type
SMD
Luminous Flux
1000 lm
CRI
> 80
Beam Angle
120°
Life Time
50,000 Hours
Driver
External
Dimming
Non-Dimmable (On/Off)
Input Voltage
24V DC
PHYSICAL DETAILS
Housing Material
Silicone
Diffuser Material
Silicone
Size
16x16mm
Operating Temp.
-20°C to +55°C
Storage Temp.
-20°C to +80°C
DIMENSIONAL DRAWING · MM
IMAGE TO BE SUPPLIED
PHOTOMETRIC · POLAR
LIGHT DISTRIBUTION
120°
FINISHES
White
LED
BridgeluxEpistarOsram
DRIVER
LifudLuxflareNZ
SUMMARY
WATTAGE
10
CCT
3000 · 4000 · 6000
INGRESS
67
FINISH
WH
Technical data in accordance with EN 60598-1, EN 62031, EN IEC 63000 (RoHS), EU LVD 2014/35/EU and EN/IEC 60529 (IP code). We reserve the right to make technical and design changes.
