OUTDOOR LIGHTING · NEON FLEX
LFSRS-10W-3K-IP67-__

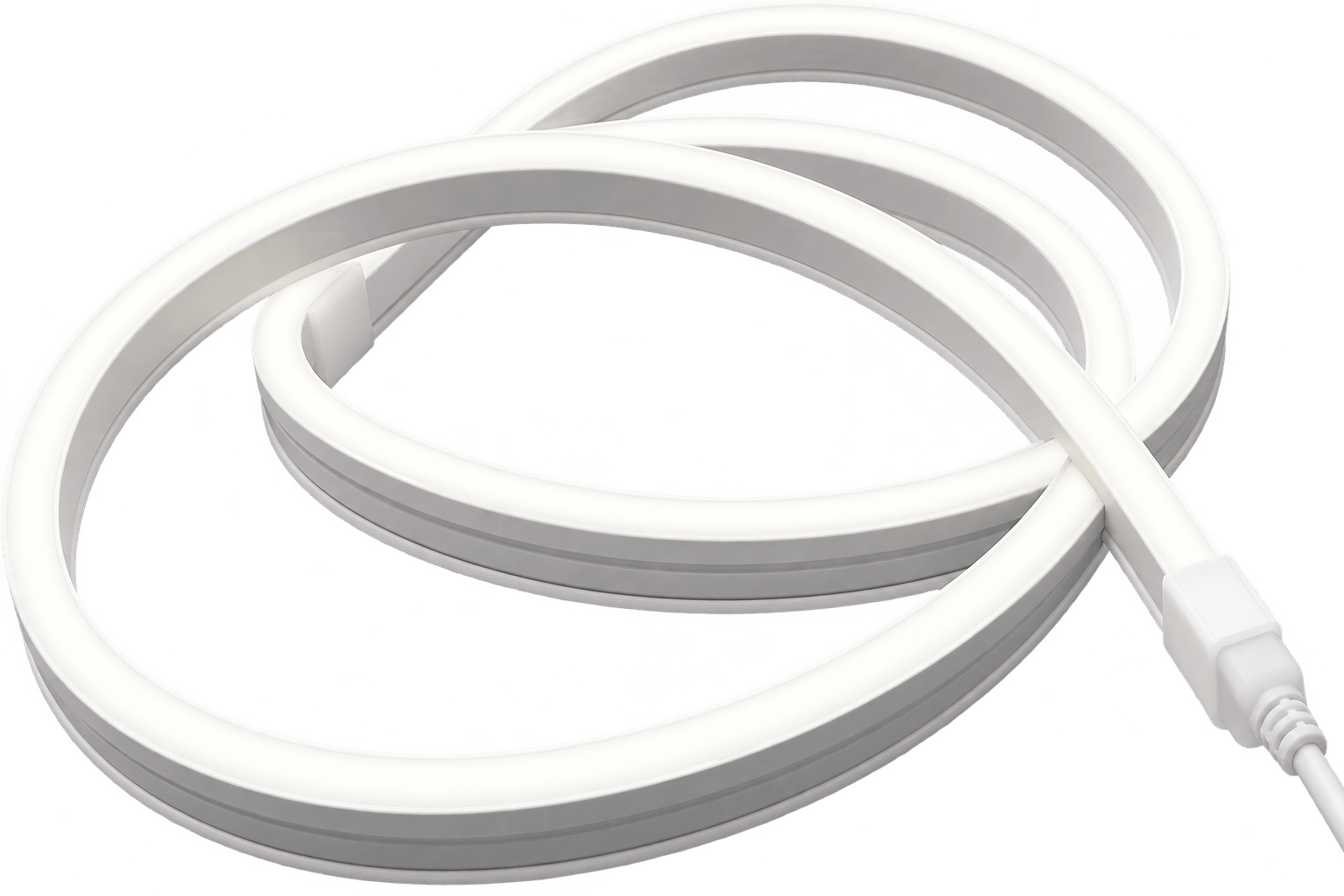

Neon Flex 10W 10×10mm neon flex
A 10 W neon flex strip in a 10 x 10 mm silicone housing, run at 3000K from a 24V DC external driver behind a lensed silicone diffuser. IP67-rated for surface-mounted outdoor runs.
10 W
WATTAGE
550 lm
OUTPUT
3000 K
COLOUR TEMP.
IP67
RATING
Mounting
HOW IT INSTALLSSURFACE
Fixed onto the surface — plane not specified by the manufacturer.
Technical Specifications
FROM CMS RECORD · LFSRS-10W-3K-IP67-__LUMINAIRE DETAILS
Product CodeLFSRS-10W-3K-IP67-__
Product TypeNeon Flex
Application AreaOutdoor
PRODUCT DETAILS
Wattage10 W
Colour Temp.3000 K
IP RatingIP67
Chip TypeCOB
Luminous Flux550 lm
CRI> 80
Beam Angle120°
Life Time50,000 Hours
DriverExternal
DimmingNon-Dimmable (On/Off)
Input Voltage24V DC
PHYSICAL DETAILS
Housing MaterialSilicon
Diffuser MaterialSilicone
Diffuser OpticsLens
Size10 x 10 mm
Operating Temp.-20°C to +55°C
Storage Temp.-20°C to +80°C
Photometrics
550 lm
LUMEN OUTPUT
120 °
BEAM ANGLE
—
CENTRE BEAM
—
EFFICACY
3000 K
COLOUR TEMP.
80
CRI
