ARCHITECTURAL LED LIGHTING
PRODUCT DATASHEET
REV 01 · 2026 · 17/08
OUTDOOR LIGHTING · NEON FLEX
Neon Flex 10W 10×10mm
neon flex
LFSRS-10W-3K-IP67-__

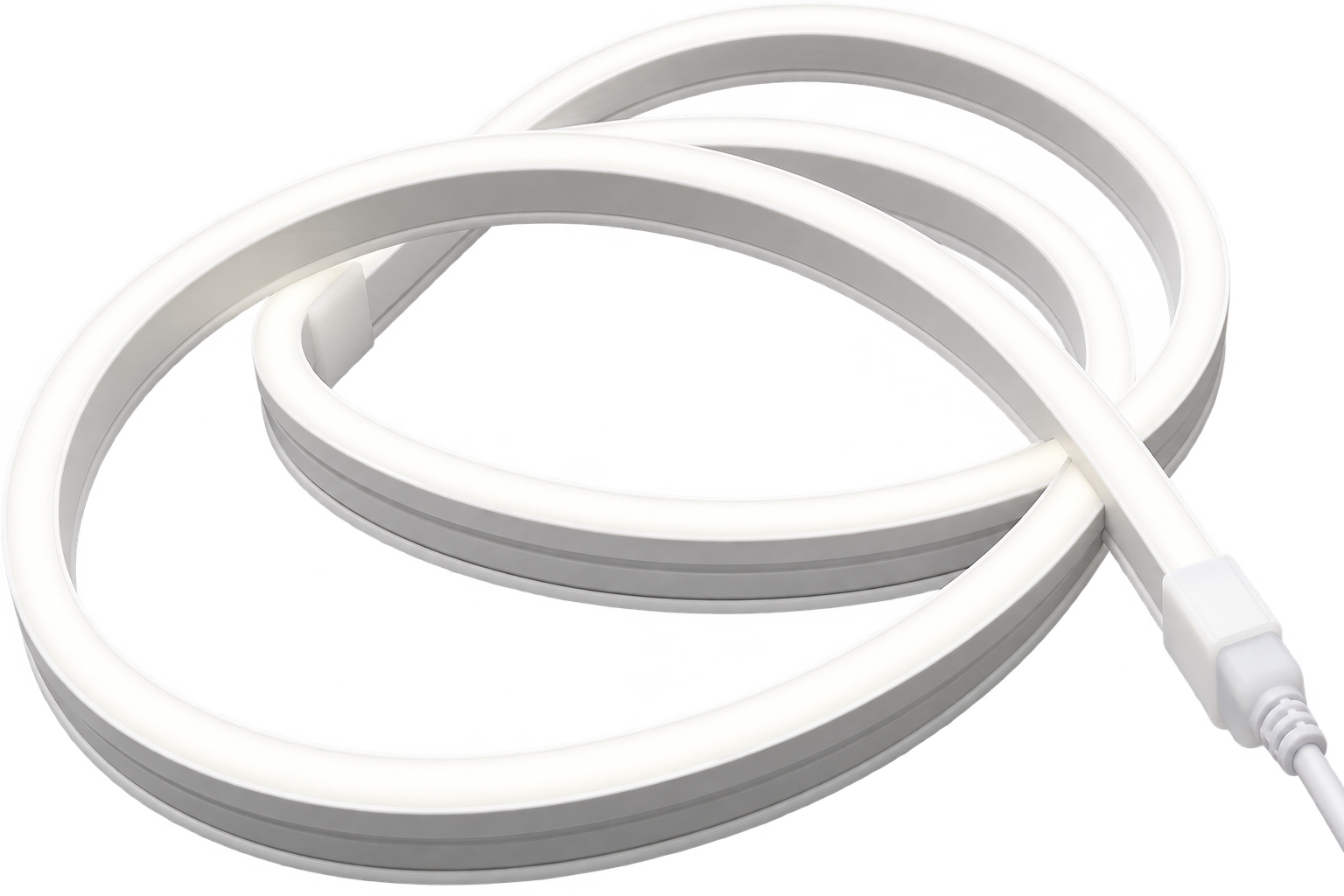

A 10 W neon flex strip in a 10 x 10 mm silicone housing, run at 3000K from a 24V DC external driver behind a lensed silicone diffuser. IP67-rated for surface-mounted outdoor runs.
MOUNTING
Surface
LUMINAIRE DETAILS
Product Code
LFSRS-10W-3K-IP67-__
Product Type
Neon Flex
Application Area
Outdoor
PRODUCT DETAILS
Wattage
10 W
Colour Temp.
3000 K
IP Rating
IP67
Chip Type
COB
Luminous Flux
550 lm
CRI
> 80
Beam Angle
120°
Life Time
50,000 Hours
Driver
External
Dimming
Non-Dimmable (On/Off)
Input Voltage
24V DC
PHYSICAL DETAILS
Housing Material
Silicon
Diffuser Material
Silicone
Diffuser Optics
Lens
Size
10 x 10 mm
Operating Temp.
-20°C to +55°C
Storage Temp.
-20°C to +80°C
DIMENSIONAL DRAWING · MM
IMAGE TO BE SUPPLIED
PHOTOMETRIC · POLAR
LIGHT DISTRIBUTION
120°
LED
BridgeluxEpistar
DRIVER
LuxflareNZ
SUMMARY
WATTAGE
10
CCT
3000
INGRESS
67
FINISH
—
Technical data in accordance with EN 60598-1, EN 62031, EN IEC 63000 (RoHS), EU LVD 2014/35/EU and EN/IEC 60529 (IP code). We reserve the right to make technical and design changes.
LUXFLARE LIGHTINGREV 01 · 2026 · 17/08OUTDOOR
