INDOOR LIGHTING · LINEAR PROFILES
LFLNR-12W-3/4/6K-IP65-WH/BK

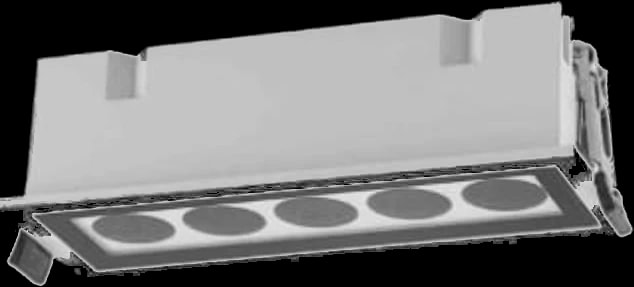

Linear Grille Light grille
A 12 W recessed linear grille light in a 160 x 58 x 46 mm aluminium die-cast body, offered at 3000K, 4000K or 6000K behind a glass diffuser across three beam angles from 15° to 36°. IP65-rated, in white or black.
12 W
WATTAGE
930 lm
OUTPUT
3000 / 4000 / 6000 K
COLOUR TEMP.
IP65
RATING
FINISH
White
Black
Mounting
HOW IT INSTALLSRECESSED
Set into the surface — plane not specified by the manufacturer.
Technical Specifications
FROM CMS RECORD · LFLNR-12W-3/4/6K-IP65-WH/BKLUMINAIRE DETAILS
Product CodeLFLNR-12W-3/4/6K-IP65-WH/BK
Product TypeLinear Light
Application AreaIndoor
PRODUCT DETAILS
Wattage12 W
Colour Temp.3000 / 4000 / 6000 K
IP RatingIP65
Chip TypeSMD/COB
Luminous Flux930 lm
CRI> 80
Beam Angle15° / 24° / 36°
Life Time50,000 Hours
DriverInternal / External
DimmingNon-Dimmable (On/Off)
Input Voltage230V AC
PHYSICAL DETAILS
Housing MaterialAlu Die Cast
Diffuser MaterialGlass
SizeL 160 × W 58 × H 46 mm
Operating Temp.-20°C to +40°C
Storage Temp.-20°C to +50°C
Photometrics
930 lm
LUMEN OUTPUT
15 °
BEAM ANGLE
—
CENTRE BEAM
—
EFFICACY
3000 K
COLOUR TEMP.
80
CRI
