ARCHITECTURAL LED LIGHTING
PRODUCT DATASHEET
REV 00 · 2026 · 27/07
INDOOR LIGHTING · LINEAR PROFILES

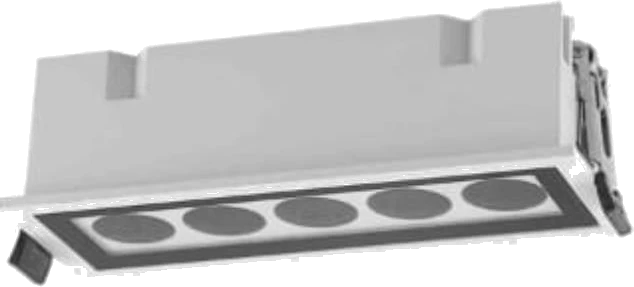

Linear Grille Light
grille
LFLNR-12W-3/4/6K-IP65-WH/BK
A 12 W recessed linear grille light in a 160 x 58 x 46 mm aluminium die-cast body, offered at 3000K, 4000K or 6000K behind a glass diffuser across three beam angles from 15° to 36°. IP65-rated, in white or black.
MOUNTING
Recessed
LUMINAIRE DETAILS
Product Code
LFLNR-12W-3/4/6K-IP65-WH/BK
Product Type
Linear Light
Application Area
Indoor
PRODUCT DETAILS
Wattage
12 W
Colour Temp.
3000 / 4000 / 6000 K
IP Rating
IP65
Chip Type
SMD/COB
Luminous Flux
930 lm
CRI
> 80
Beam Angle
15° / 24° / 36°
Life Time
50,000 Hours
Driver
Internal / External
Dimming
Non-Dimmable (On/Off)
Input Voltage
230V AC
PHYSICAL DETAILS
Housing Material
Alu Die Cast
Diffuser Material
Glass
Size
L 160 × W 58 × H 46 mm
Operating Temp.
-20°C to +40°C
Storage Temp.
-20°C to +50°C
DIMENSIONAL DRAWING · MM
IMAGE TO BE SUPPLIED
PHOTOMETRIC · POLAR
LIGHT DISTRIBUTION
15°24°36°
FINISHES
White
Black
LED
BridgeluxEpistarOsram
DRIVER
LifudEagleriseLuxflare
SUMMARY
WATTAGE
12
CCT
3000 · 4000 · 6000
INGRESS
65
FINISH
WH · BK
Technical data in accordance with EN 60598-1, EN 62031, EN IEC 63000 (RoHS), EU LVD 2014/35/EU and EN/IEC 60529 (IP code). We reserve the right to make technical and design changes.
