INDOOR LIGHTING · LED DOWNLIGHTS
LFDLT-12W-3K-IP20-BK

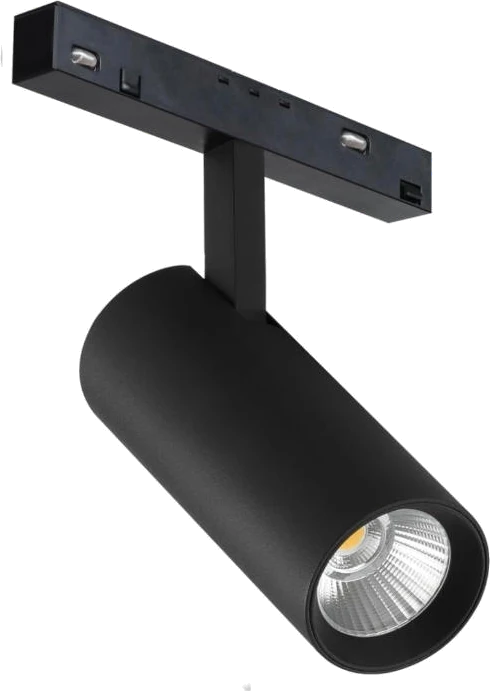

Track Spot Light track mounted
A track-mounted 12 W COB spot offered in two body diameters, Ø45 and Ø60, behind a glass diffuser at 36°. Run from 48V DC with DALI dimming. Rated IP20, black finish.
12 W
WATTAGE
1000 lm
OUTPUT
3000 K
COLOUR TEMP.
IP20
RATING
FINISH
Black
Mounting
HOW IT INSTALLSTRACK MOUNTED
Clips onto a magnetic or fixed track rail.
Technical Specifications
FROM CMS RECORD · LFDLT-12W-3K-IP20-BKLUMINAIRE DETAILS
Product CodeLFDLT-12W-3K-IP20-BK
Product TypeDown Light
Application AreaIndoor
PRODUCT DETAILS
Wattage12 W
Colour Temp.3000 K
IP RatingIP20
Chip TypeCOB
Luminous Flux1000 lm
CRI> 80
Beam Angle36°
Life Time50,000 Hours
DriverExternal
DimmingDALI
Input Voltage48V DC
PHYSICAL DETAILS
Housing MaterialAlu Die Cast
Diffuser MaterialGlass
SizeØ 60 × L 45 / 60 mm
Operating Temp.-20°C to +40°C
Storage Temp.-20°C to +50°C
Photometrics
1000 lm
LUMEN OUTPUT
36 °
BEAM ANGLE
—
CENTRE BEAM
—
EFFICACY
3000 K
COLOUR TEMP.
80
CRI
