ARCHITECTURAL LED LIGHTING
PRODUCT DATASHEET
REV 00 · 2026 · 27/07
INDOOR LIGHTING · LED DOWNLIGHTS

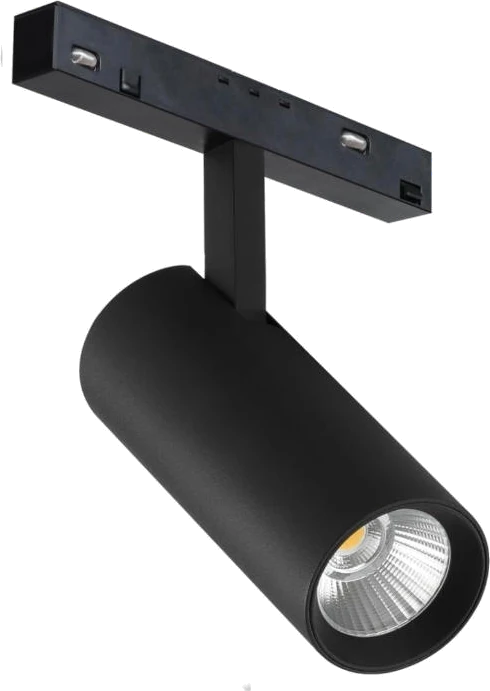

Track Spot Light
track mounted
LFDLT-12W-3K-IP20-BK
A track-mounted 12 W COB spot offered in two body diameters, Ø45 and Ø60, behind a glass diffuser at 36°. Run from 48V DC with DALI dimming. Rated IP20, black finish.
MOUNTING
Track mounted
LUMINAIRE DETAILS
Product Code
LFDLT-12W-3K-IP20-BK
Product Type
Down Light
Application Area
Indoor
PRODUCT DETAILS
Wattage
12 W
Colour Temp.
3000 K
IP Rating
IP20
Chip Type
COB
Luminous Flux
1000 lm
CRI
> 80
Beam Angle
36°
Life Time
50,000 Hours
Driver
External
Dimming
DALI
Input Voltage
48V DC
PHYSICAL DETAILS
Housing Material
Alu Die Cast
Diffuser Material
Glass
Size
Ø 60 × L 45 / 60 mm
Operating Temp.
-20°C to +40°C
Storage Temp.
-20°C to +50°C
DIMENSIONAL DRAWING · MM
IMAGE TO BE SUPPLIED
PHOTOMETRIC · POLAR
LIGHT DISTRIBUTION
36°
FINISHES
Black
LED
BridgeluxEpistarOsram
DRIVER
LifudEagleriseLuxflare
SUMMARY
WATTAGE
12
CCT
3000
INGRESS
20
FINISH
BK
Technical data in accordance with EN 60598-1, EN 62031, EN IEC 63000 (RoHS), EU LVD 2014/35/EU and EN/IEC 60529 (IP code). We reserve the right to make technical and design changes.
