INDOOR LIGHTING · LED STRIP
LFSRS-10W-3K-IP20-WH

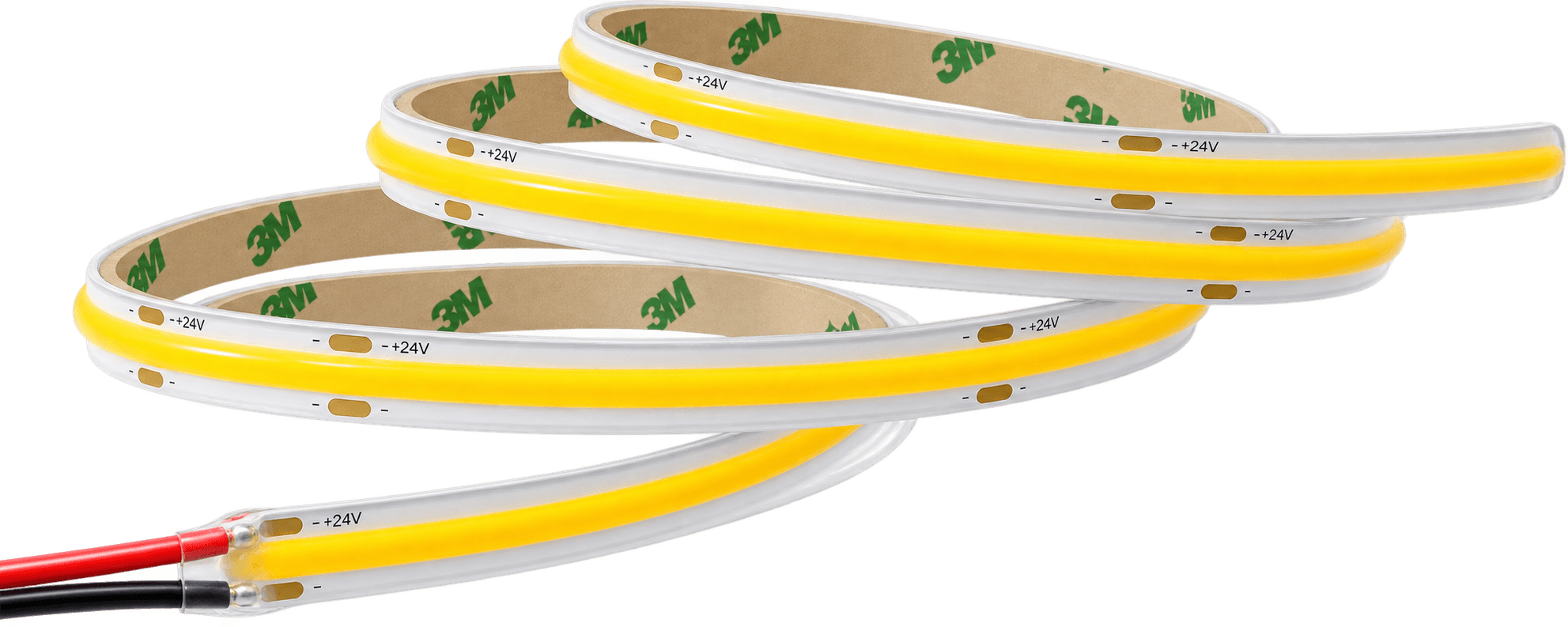

LED Strip IP20 strip
An 8 mm LED strip rated 10 W per metre at 3000K, in a silicone housing run from a 24V DC external driver. IP20-rated for dry interior profile channels, finished in white.
10 W
WATTAGE
1100 lm
OUTPUT
3000 K
COLOUR TEMP.
IP20
RATING
FINISH
White
Mounting
HOW IT INSTALLSSURFACE
Fixed onto the surface — plane not specified by the manufacturer.
Technical Specifications
FROM CMS RECORD · LFSRS-10W-3K-IP20-WHLUMINAIRE DETAILS
Product CodeLFSRS-10W-3K-IP20-WH
Product TypeStrip Light
Application AreaIndoor
PRODUCT DETAILS
Wattage10 W
Colour Temp.3000 K
IP RatingIP20
Chip TypeCOB
Luminous Flux1100 lm
CRI> 80
Beam Angle120°
Life Time50,000 Hours
DriverExternal
DimmingNon-Dimmable (On/Off)
Input Voltage24V DC
PHYSICAL DETAILS
Housing MaterialSilicone
Diffuser MaterialSilicone
Size8mm
Operating Temp.-20°C to +40°C
Storage Temp.-20°C to +50°C
Photometrics
1100 lm
LUMEN OUTPUT
120 °
BEAM ANGLE
—
CENTRE BEAM
—
EFFICACY
3000 K
COLOUR TEMP.
80
CRI
