ARCHITECTURAL LED LIGHTING
PRODUCT DATASHEET
REV 01 · 2026 · 17/08
INDOOR LIGHTING · LED STRIP
LED Strip IP20
strip
LFSRS-10W-3K-IP20-WH

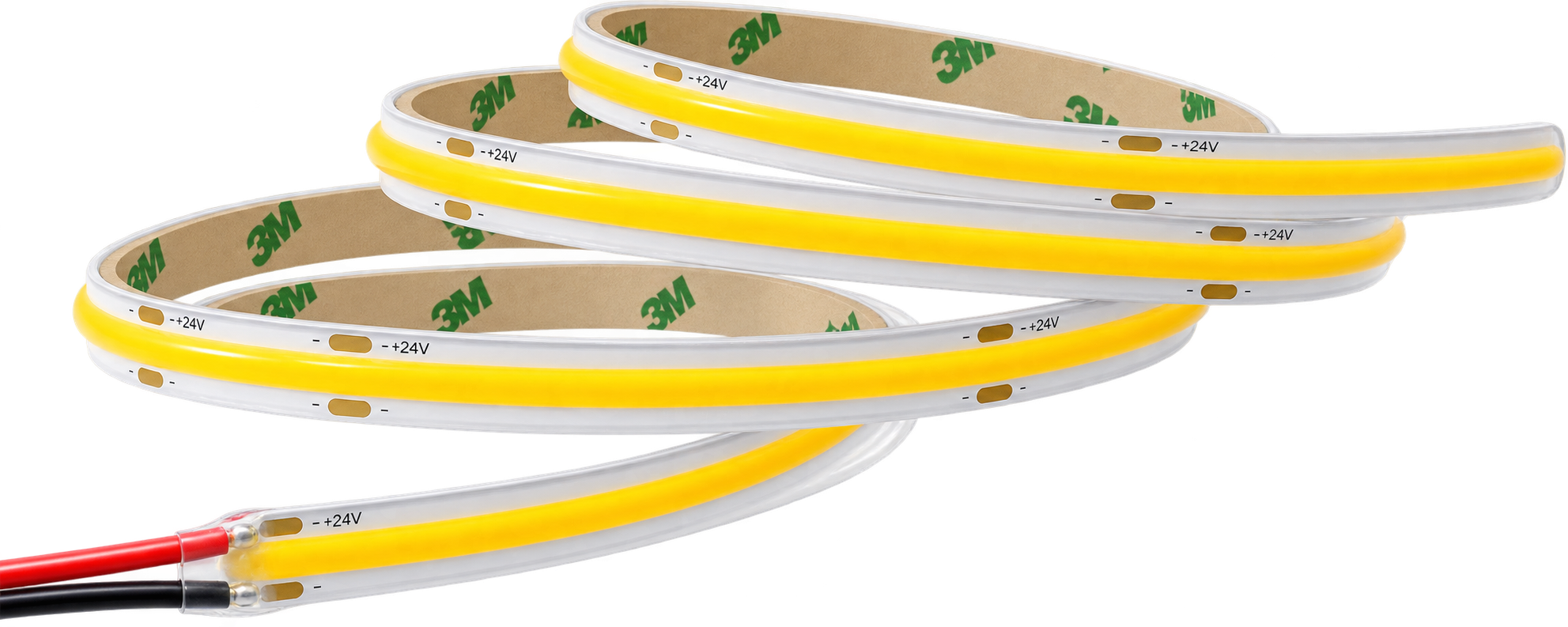

An 8 mm LED strip rated 10 W per metre at 3000K, in a silicone housing run from a 24V DC external driver. IP20-rated for dry interior profile channels, finished in white.
MOUNTING
Surface
LUMINAIRE DETAILS
Product Code
LFSRS-10W-3K-IP20-WH
Product Type
Strip Light
Application Area
Indoor
PRODUCT DETAILS
Wattage
10 W
Colour Temp.
3000 K
IP Rating
IP20
Chip Type
COB
Luminous Flux
1100 lm
CRI
> 80
Beam Angle
120°
Life Time
50,000 Hours
Driver
External
Dimming
Non-Dimmable (On/Off)
Input Voltage
24V DC
PHYSICAL DETAILS
Housing Material
Silicone
Diffuser Material
Silicone
Size
8mm
Operating Temp.
-20°C to +40°C
Storage Temp.
-20°C to +50°C
DIMENSIONAL DRAWING · MM
IMAGE TO BE SUPPLIED
PHOTOMETRIC · POLAR
LIGHT DISTRIBUTION
120°
FINISHES
White
LED
BridgeluxEpistar
DRIVER
LifudLuxflare
SUMMARY
WATTAGE
10
CCT
3000
INGRESS
20
FINISH
WH
Technical data in accordance with EN 60598-1, EN 62031, EN IEC 63000 (RoHS), EU LVD 2014/35/EU and EN/IEC 60529 (IP code). We reserve the right to make technical and design changes.
