OUTDOOR LIGHTING · IN-GROUND
LFIGFR-1W-3/4/5K-IP65-SG

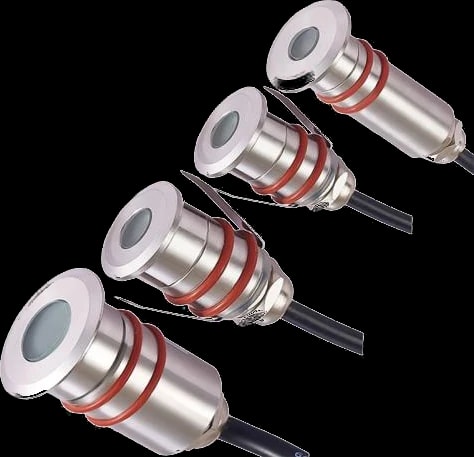

Inground Light 1W floor recessed
A miniature Ø15 mm inground light, 1 W SMD/COB behind a glass diffuser at a wide 110° spread, on a 10 mm cutout, offered at 3000K, 4000K or 5000K. Rated IP65.
1 W
WATTAGE
30 lm
OUTPUT
3000 / 4000 / 5000 K
COLOUR TEMP.
IP65
RATING
FINISH
Silver Gray
Mounting
HOW IT INSTALLSFLOOR RECESSED
Buried flush into floors or ground, shining upward.
Technical Specifications
FROM CMS RECORD · LFIGFR-1W-3/4/5K-IP65-SGLUMINAIRE DETAILS
Product CodeLFIGFR-1W-3/4/5K-IP65-SG
Product TypeIn-ground Light
Application AreaOutdoor
PRODUCT DETAILS
Wattage1 W
Colour Temp.3000 / 4000 / 5000 K
IP RatingIP65
Chip TypeSMD/COB
Luminous Flux30 lm
CRI> 80
Beam Angle110°
Life Time50,000 Hours
DriverInternal / External
DimmingNon-Dimmable (On/Off)
Input Voltage230V AC/12V DC
PHYSICAL DETAILS
Housing MaterialAlu Die Cast
Diffuser MaterialGlass
SizeØ 15 × H 16 mm
Cutout10 mm
Operating Temp.-20°C to +55°C
Storage Temp.-20°C to +80°C
Photometrics
30 lm
LUMEN OUTPUT
110 °
BEAM ANGLE
—
CENTRE BEAM
—
EFFICACY
3000 K
COLOUR TEMP.
80
CRI
