ARCHITECTURAL LED LIGHTING
PRODUCT DATASHEET
REV 00 · 2026 · 27/07
OUTDOOR LIGHTING · IN-GROUND

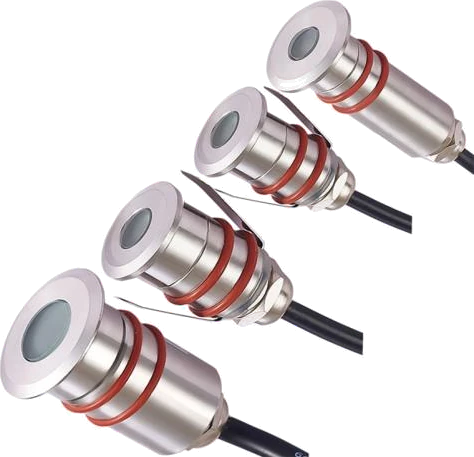

Inground Light 1W
floor recessed
LFIGFR-1W-3/4/5K-IP65-SG
A miniature Ø15 mm inground light, 1 W SMD/COB behind a glass diffuser at a wide 110° spread, on a 10 mm cutout, offered at 3000K, 4000K or 5000K. Rated IP65.
MOUNTING
Floor recessed
LUMINAIRE DETAILS
Product Code
LFIGFR-1W-3/4/5K-IP65-SG
Product Type
In-ground Light
Application Area
Outdoor
PRODUCT DETAILS
Wattage
1 W
Colour Temp.
3000 / 4000 / 5000 K
IP Rating
IP65
Chip Type
SMD/COB
Luminous Flux
30 lm
CRI
> 80
Beam Angle
110°
Life Time
50,000 Hours
Driver
Internal / External
Dimming
Non-Dimmable (On/Off)
Input Voltage
230V AC/12V DC
PHYSICAL DETAILS
Housing Material
Alu Die Cast
Diffuser Material
Glass
Size
Ø 15 × H 16 mm
Cutout
10 mm
Operating Temp.
-20°C to +55°C
Storage Temp.
-20°C to +80°C
DIMENSIONAL DRAWING · MM
IMAGE TO BE SUPPLIED
PHOTOMETRIC · POLAR
LIGHT DISTRIBUTION
110°
FINISHES
Silver Gray
LED
BridgeluxEpistarOsram
DRIVER
LifudEagleriseLuxflare
SUMMARY
WATTAGE
1
CCT
3000 · 4000 · 5000
INGRESS
65
FINISH
SG
Technical data in accordance with EN 60598-1, EN 62031, EN IEC 63000 (RoHS), EU LVD 2014/35/EU and EN/IEC 60529 (IP code). We reserve the right to make technical and design changes.
LUXFLARE LIGHTINGREV 00 · 2026 · 27/07OUTDOOR
