INDOOR LIGHTING · SPOT LIGHTS
LFSLR-2W-3K-IP65-WH/SG

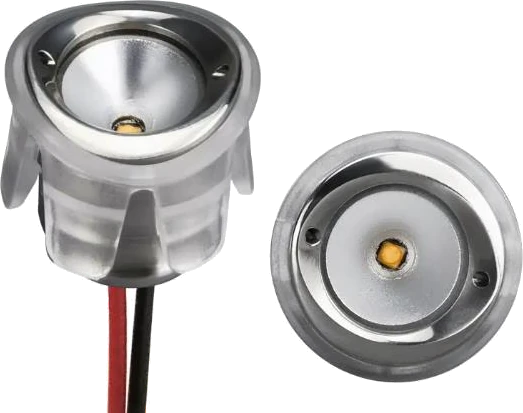

Handrail Spot Light handrail-mounted
A 2 W handrail-mounted spot on a Ø30 mm body with a 27 mm cutout, built into balustrades and stair handrails. An SMD/COB source gives 180 lm across beam options from 12° to 36°, on an internal driver, sealed to IP65.
2 W
WATTAGE
180 lm
OUTPUT
3000 K
COLOUR TEMP.
IP65
RATING
FINISH
White
Silver Gray
Mounting
HOW IT INSTALLSRECESSED
Set into the surface — plane not specified by the manufacturer.
Technical Specifications
FROM CMS RECORD · LFSLR-2W-3K-IP65-WH/SGLUMINAIRE DETAILS
Product CodeLFSLR-2W-3K-IP65-WH/SG
Product TypeSpot Light
Application AreaIndoor
PRODUCT DETAILS
Wattage2 W
Colour Temp.3000 K
IP RatingIP65
Chip TypeSMD/COB
Luminous Flux180 lm
CRI> 80
Beam Angle12° / 15° / 24° / 36°
Life Time50,000 Hours
DriverInternal
DimmingNon-Dimmable (On/Off)
Input Voltage24V DC / 12V DC
PHYSICAL DETAILS
Housing MaterialAlu Die Cast
Diffuser MaterialGlass
SizeØ 30 × H 37.6 mm
Cutout27 mm
Operating Temp.-20°C to +40°C
Storage Temp.-20°C to +50°C
Photometrics
180 lm
LUMEN OUTPUT
12 °
BEAM ANGLE
—
CENTRE BEAM
—
EFFICACY
3000 K
COLOUR TEMP.
80
CRI
