ARCHITECTURAL LED LIGHTING
PRODUCT DATASHEET
REV 00 · 2026 · 27/07
INDOOR LIGHTING · SPOT LIGHTS

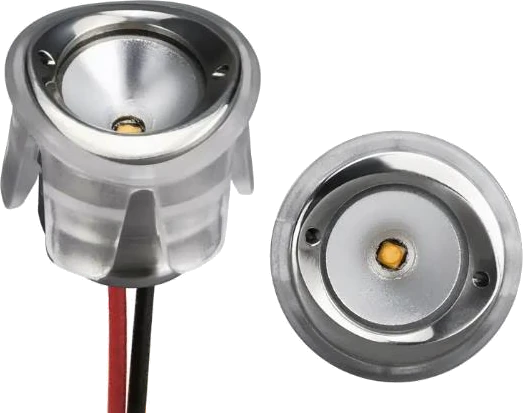

Handrail Spot Light
handrail-mounted
LFSLR-2W-3K-IP65-WH/SG
A 2 W handrail-mounted spot on a Ø30 mm body with a 27 mm cutout, built into balustrades and stair handrails. An SMD/COB source gives 180 lm across beam options from 12° to 36°, on an internal driver, sealed to IP65.
MOUNTING
Recessed
LUMINAIRE DETAILS
Product Code
LFSLR-2W-3K-IP65-WH/SG
Product Type
Spot Light
Application Area
Indoor
PRODUCT DETAILS
Wattage
2 W
Colour Temp.
3000 K
IP Rating
IP65
Chip Type
SMD/COB
Luminous Flux
180 lm
CRI
> 80
Beam Angle
12° / 15° / 24° / 36°
Life Time
50,000 Hours
Driver
Internal
Dimming
Non-Dimmable (On/Off)
Input Voltage
24V DC / 12V DC
PHYSICAL DETAILS
Housing Material
Alu Die Cast
Diffuser Material
Glass
Size
Ø 30 × H 37.6 mm
Cutout
27 mm
Operating Temp.
-20°C to +40°C
Storage Temp.
-20°C to +50°C
DIMENSIONAL DRAWING · MM
IMAGE TO BE SUPPLIED
PHOTOMETRIC · POLAR
LIGHT DISTRIBUTION
12°15°24°36°
FINISHES
White
Silver Gray
LED
BridgeluxEpistarOsram
DRIVER
LifudEagleriseLuxflare
SUMMARY
WATTAGE
2
CCT
3000
INGRESS
65
FINISH
WH · SG
Technical data in accordance with EN 60598-1, EN 62031, EN IEC 63000 (RoHS), EU LVD 2014/35/EU and EN/IEC 60529 (IP code). We reserve the right to make technical and design changes.
