INDOOR LIGHTING · LINEAR PROFILES
LFLNR-30W-3K-IP20-WH

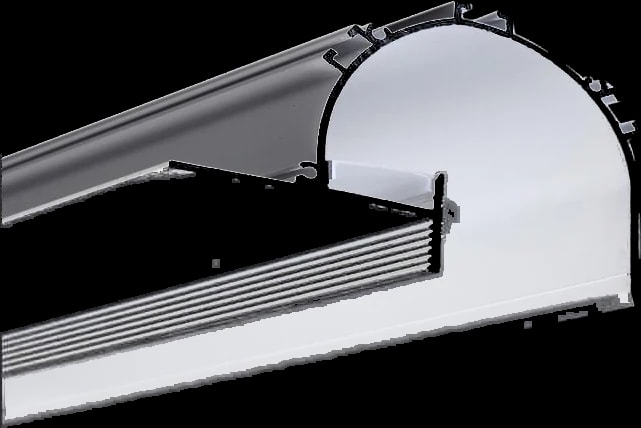

Aluminium Cove Profile Light cove profile
A 30 W custom aluminium cove profile light at 3000K, recessed-mounted and run from an internal or external 24V DC driver with DALI dimming behind a polycarbonate diffuser, finished in white.
30 W
WATTAGE
2400 lm
OUTPUT
3000 K
COLOUR TEMP.
IP20
RATING
FINISH
White
Mounting
HOW IT INSTALLSRECESSED
Set into the surface — plane not specified by the manufacturer.
Technical Specifications
FROM CMS RECORD · LFLNR-30W-3K-IP20-WHLUMINAIRE DETAILS
Product CodeLFLNR-30W-3K-IP20-WH
Product TypeLinear Light
Application AreaIndoor
PRODUCT DETAILS
Wattage30 W
Colour Temp.3000 K
IP RatingIP20
Chip TypeSMD/COB
Luminous Flux2400 lm
CRI> 80
Beam Angle120°
Life Time50,000 Hours
DriverInternal / External
DimmingDALI
Input Voltage24V DC
PHYSICAL DETAILS
Housing MaterialAlu Die Cast
Diffuser MaterialPolycarbonate (PC)
SizeL 1000 × W 95 × H 70 mm
Operating Temp.-20°C to +40°C
Storage Temp.-20°C to +50°C
Photometrics
2400 lm
LUMEN OUTPUT
120 °
BEAM ANGLE
—
CENTRE BEAM
—
EFFICACY
3000 K
COLOUR TEMP.
80
CRI
