ARCHITECTURAL LED LIGHTING
PRODUCT DATASHEET
REV 00 · 2026 · 29/07
INDOOR LIGHTING · LINEAR PROFILES

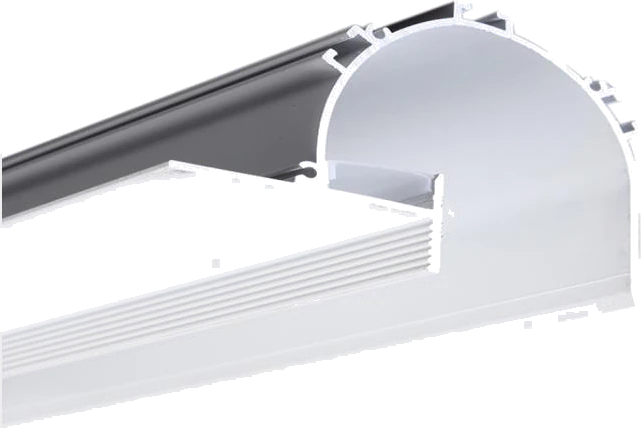

Aluminium Cove Profile Light
cove profile
LFLNR-30W-3K-IP20-WH
A 30 W custom aluminium cove profile light at 3000K, recessed-mounted and run from an internal or external 24V DC driver with DALI dimming behind a polycarbonate diffuser, finished in white.
MOUNTING
Recessed
LUMINAIRE DETAILS
Product Code
LFLNR-30W-3K-IP20-WH
Product Type
Linear Light
Application Area
Indoor
PRODUCT DETAILS
Wattage
30 W
Colour Temp.
3000 K
IP Rating
IP20
Chip Type
SMD/COB
Luminous Flux
2400 lm
CRI
> 80
Beam Angle
120°
Life Time
50,000 Hours
Driver
Internal / External
Dimming
DALI
Input Voltage
24V DC
PHYSICAL DETAILS
Housing Material
Alu Die Cast
Diffuser Material
Polycarbonate (PC)
Size
L 1000 × W 95 × H 70 mm
Operating Temp.
-20°C to +40°C
Storage Temp.
-20°C to +50°C
DIMENSIONAL DRAWING · MM
IMAGE TO BE SUPPLIED
PHOTOMETRIC · POLAR
LIGHT DISTRIBUTION
120°
FINISHES
White
LED
BridgeluxEpistarOsram
DRIVER
LifudLuxflareNZ
SUMMARY
WATTAGE
30
CCT
3000
INGRESS
20
FINISH
WH
Technical data in accordance with EN 60598-1, EN 62031, EN IEC 63000 (RoHS), EU LVD 2014/35/EU and EN/IEC 60529 (IP code). We reserve the right to make technical and design changes.
