INDOOR LIGHTING · LINEAR PROFILES
LFNZ-S10-ZD-30F

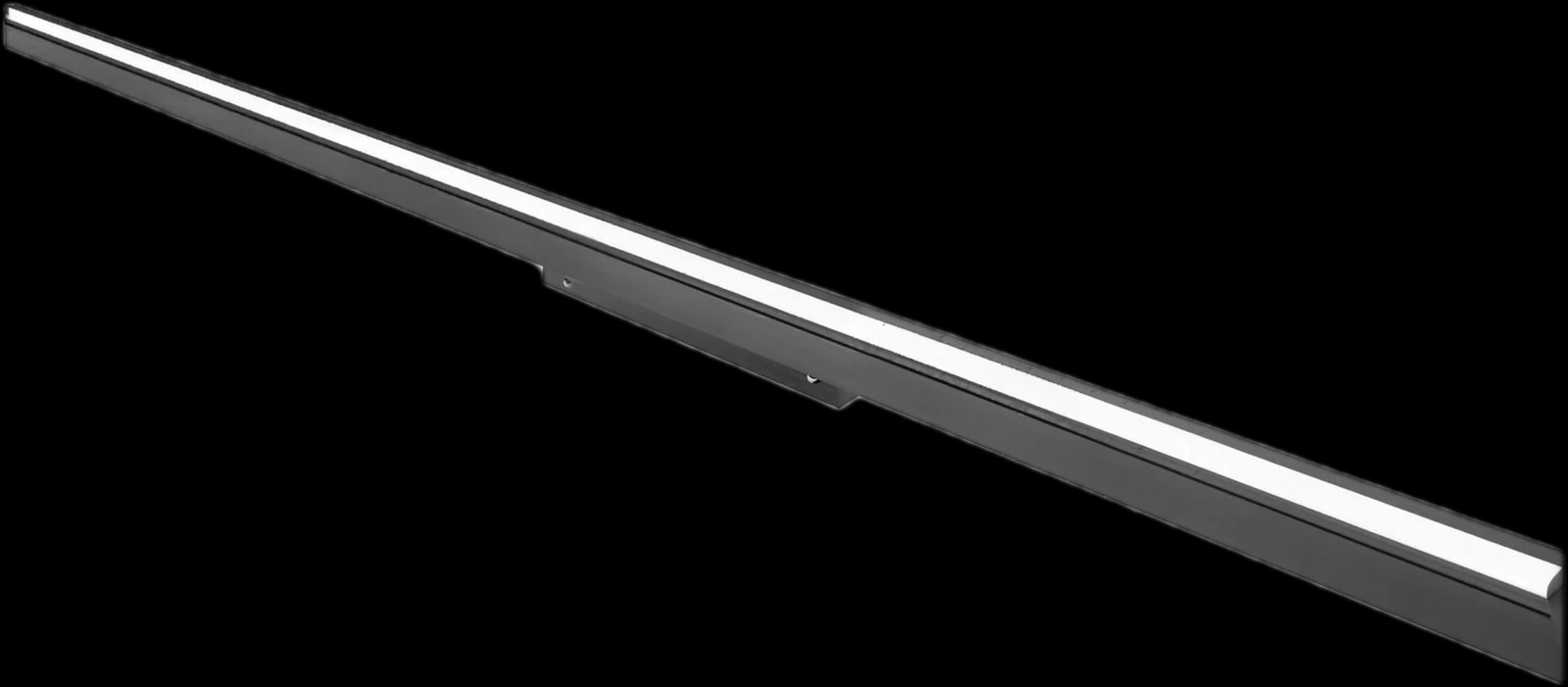

Adjustable Magnetic Linear rail mounted
A 30 W adjustable magnetic linear head for 48 V rail — tilts on its mount to aim the line of light where the room needs it, with an opal diffuser holding the output soft and even.
30 W
WATTAGE
3200 lm
OUTPUT
3000 K
COLOUR TEMP.
IP20
RATING
FINISH
Black
Mounting
HOW IT INSTALLSTRACK MOUNTED
Clips onto a magnetic or fixed track rail.
Technical Specifications
FROM CMS RECORD · LFNZ-S10-ZD-30FLUMINAIRE DETAILS
Product CodeLFNZ-S10-ZD-30F
Product TypeLinear Light
Application AreaIndoor
PRODUCT DETAILS
Wattage30 W
Colour Temp.3000 K
IP RatingIP20
Chip TypeSMD
Luminous Flux3200 lm
CRI> 80
Beam Angle120°
Life Time50,000 Hours
DriverExternal
DimmingNon-Dimmable (On/Off)
Input Voltage48V DC
PHYSICAL DETAILS
Housing MaterialAlu Die Cast
Diffuser MaterialPolycarbonate (PC)
Diffuser OpticsOpal
SizeL 915 x W 22 x H 60mm
Operating Temp.-20°C to +40°C
Storage Temp.-20°C to +50°C
Photometrics
3200 lm
LUMEN OUTPUT
120 °
BEAM ANGLE
—
CENTRE BEAM
—
EFFICACY
3000 K
COLOUR TEMP.
80
CRI

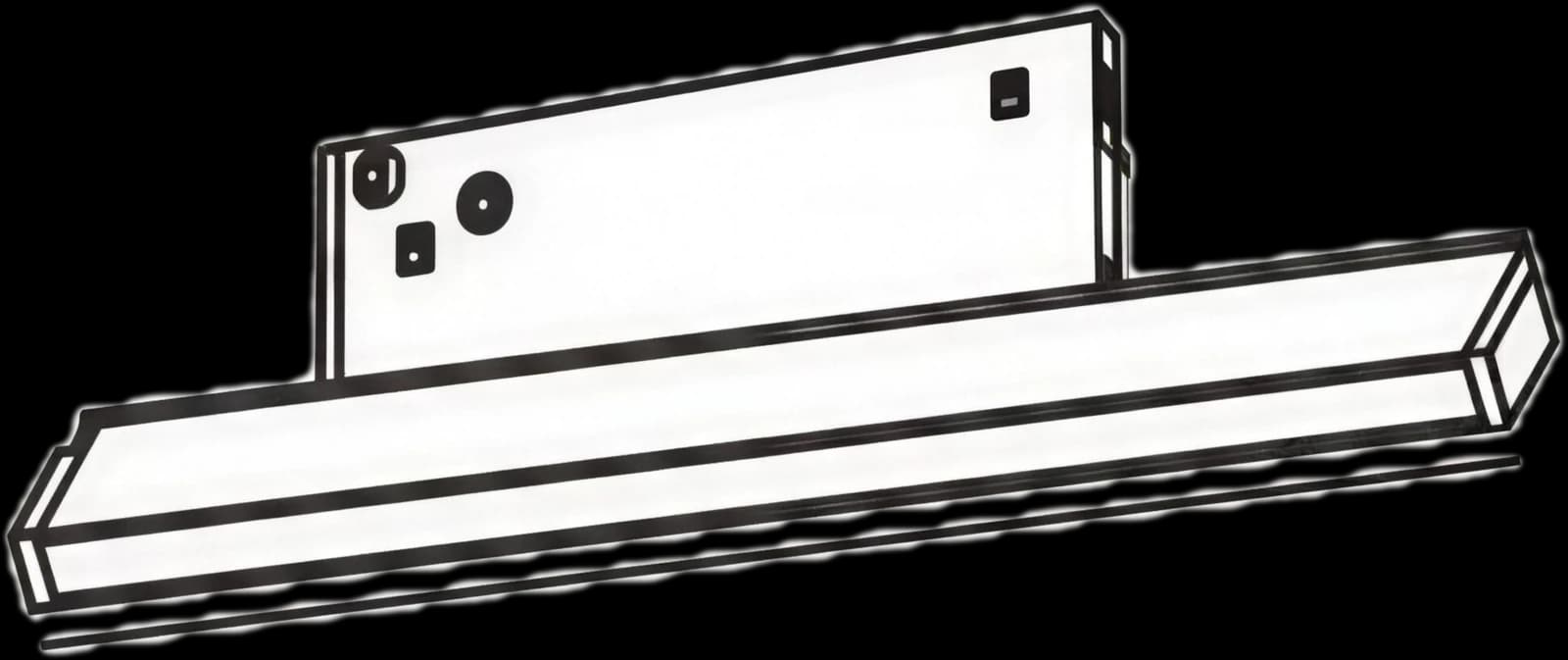

Dimensions
