ARCHITECTURAL LED LIGHTING
PRODUCT DATASHEET
REV 01 · 2026 · 27/07
INDOOR LIGHTING · LINEAR PROFILES

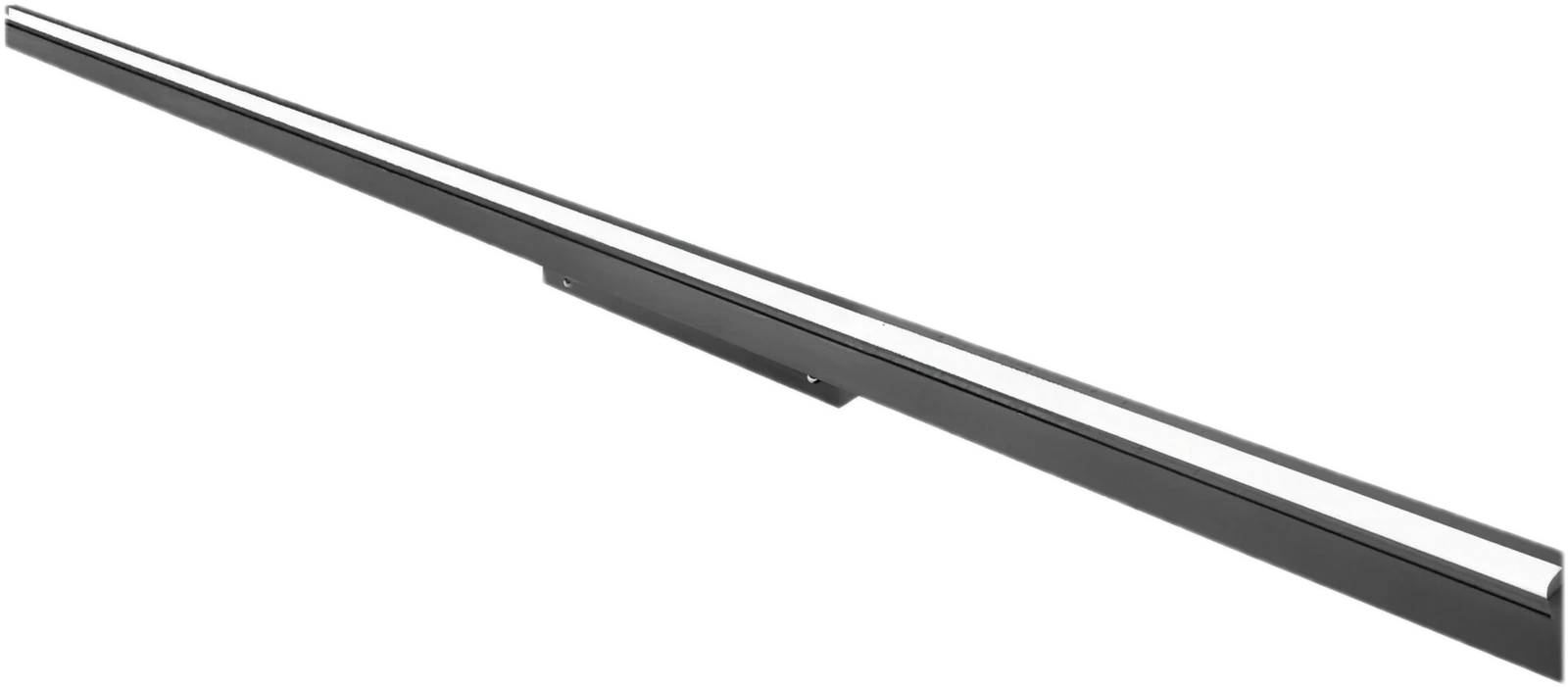

Adjustable Magnetic Linear
rail mounted
LFNZ-S10-ZD-30F
A 30 W adjustable magnetic linear head for 48 V rail — tilts on its mount to aim the line of light where the room needs it, with an opal diffuser holding the output soft and even.
MOUNTING
Track mounted
LUMINAIRE DETAILS
Product Code
LFNZ-S10-ZD-30F
Product Type
Linear Light
Application Area
Indoor
PRODUCT DETAILS
Wattage
30 W
Colour Temp.
3000 K
IP Rating
IP20
Chip Type
SMD
Luminous Flux
3200 lm
CRI
> 80
Beam Angle
120°
Life Time
50,000 Hours
Driver
External
Dimming
Non-Dimmable (On/Off)
Input Voltage
48V DC
PHYSICAL DETAILS
Housing Material
Alu Die Cast
Diffuser Material
Polycarbonate (PC)
Diffuser Optics
Opal
Size
L 915 x W 22 x H 60mm
Operating Temp.
-20°C to +40°C
Storage Temp.
-20°C to +50°C

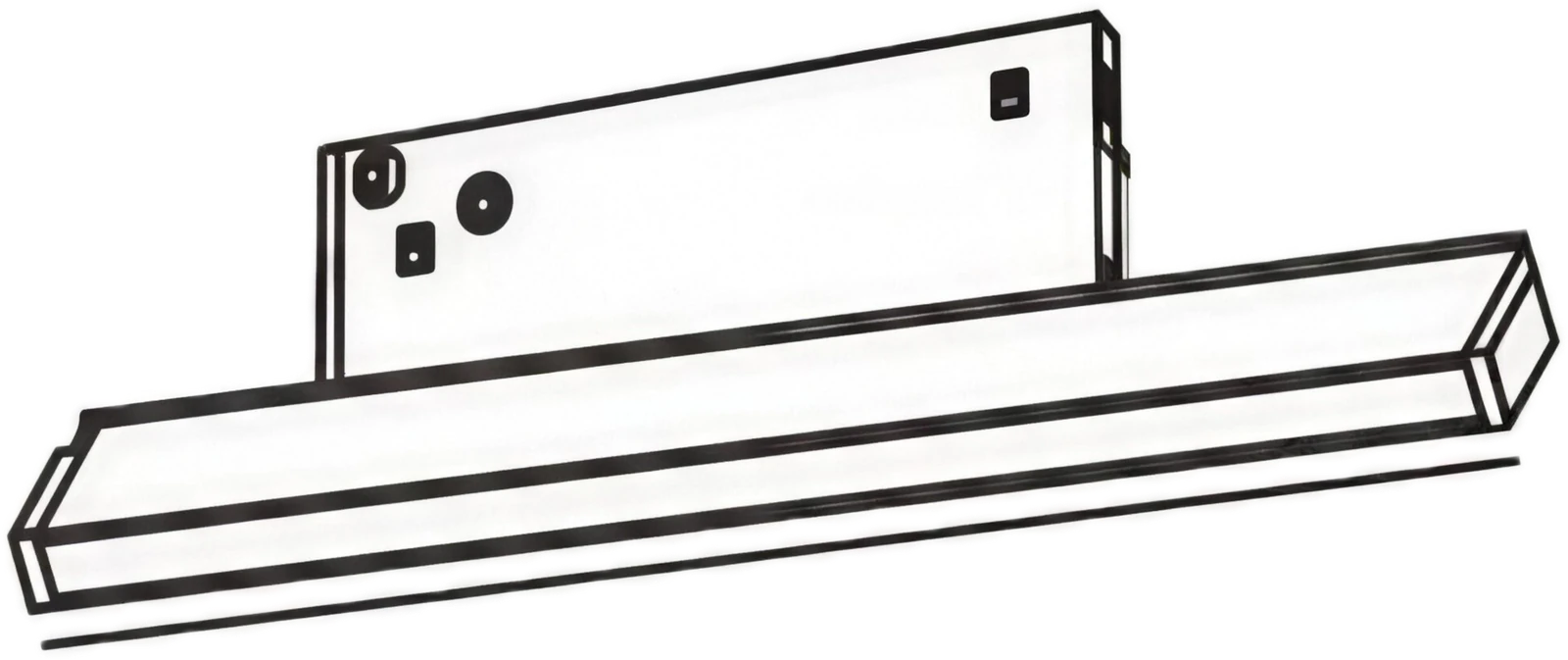

DIMENSIONAL DRAWING · MM
PHOTOMETRIC · POLAR
LIGHT DISTRIBUTION
120°
FINISHES
Black
LED
BridgeluxEpistarOsram
DRIVER
LifudEagleriseLuxflareNZ
SUMMARY
WATTAGE
30
CCT
3000
INGRESS
20
FINISH
BK
Technical data in accordance with EN 60598-1, EN 62031, EN IEC 63000 (RoHS), EU LVD 2014/35/EU and EN/IEC 60529 (IP code). We reserve the right to make technical and design changes.
