INDOOR LIGHTING · LINEAR PROFILES
NZ-VC-MTL-23028-300

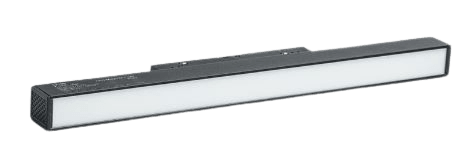

Magnetic Linear track-mounted
Product overview to be supplied.
12 W
WATTAGE
840 lm
OUTPUT
3000 K
COLOUR TEMP.
IP20
RATING
FINISH
Black
Mounting
HOW IT INSTALLSTRACK MOUNTED
Clips onto a magnetic or fixed track rail.
Technical Specifications
FROM CMS RECORD · NZ-VC-MTL-23028-300LUMINAIRE DETAILS
Product CodeNZ-VC-MTL-23028-300
Product TypeLinear Light
Application AreaIndoor
PRODUCT DETAILS
Wattage12 W
Colour Temp.3000 K
IP RatingIP20
Chip TypeSMD
Luminous Flux840 lm
CRI> 80
Beam Angle120°
Life Time50,000 Hours
DimmingNon-Dimmable (On/Off)
Input Voltage48V DC
PHYSICAL DETAILS
Housing MaterialAlu Die Cast
Diffuser MaterialPolycarbonate (PC)
Diffuser OpticsOpal
SizeL 300 × W 22 × H 25 mm
Operating Temp.-20°C to +40°C
Storage Temp.-20°C to +50°C
Photometrics
840 lm
LUMEN OUTPUT
120 °
BEAM ANGLE
—
CENTRE BEAM
—
EFFICACY
3000 K
COLOUR TEMP.
80
CRI
Dimensions
