ARCHITECTURAL LED LIGHTING
PRODUCT DATASHEET
REV 02 · 2026 · 09/10
INDOOR LIGHTING · LINEAR PROFILES

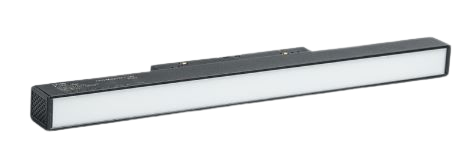

Magnetic Linear
track-mounted
NZ-VC-MTL-23028-300
Product overview to be supplied.
MOUNTING
Track mounted
LUMINAIRE DETAILS
Product Code
NZ-VC-MTL-23028-300
Product Type
Linear Light
Application Area
Indoor
PRODUCT DETAILS
Wattage
12 W
Colour Temp.
3000 K
IP Rating
IP20
Chip Type
SMD
Luminous Flux
840 lm
CRI
> 80
Beam Angle
120°
Life Time
50,000 Hours
Dimming
Non-Dimmable (On/Off)
Input Voltage
48V DC
PHYSICAL DETAILS
Housing Material
Alu Die Cast
Diffuser Material
Polycarbonate (PC)
Diffuser Optics
Opal
Size
L 300 × W 22 × H 25 mm
Operating Temp.
-20°C to +40°C
Storage Temp.
-20°C to +50°C

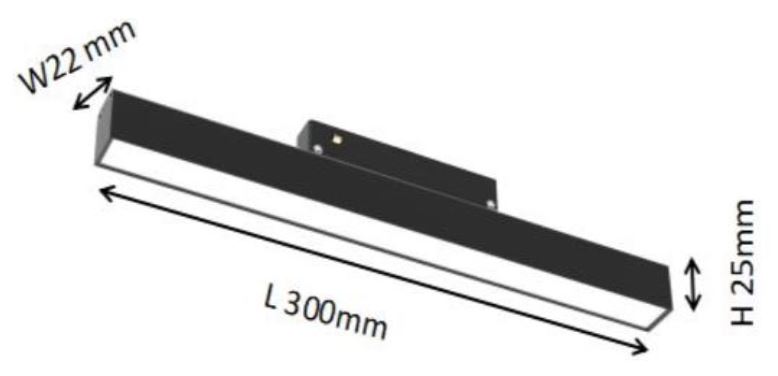

DIMENSIONAL DRAWING · MM
PHOTOMETRIC · POLAR
LIGHT DISTRIBUTION
120°
FINISHES
Black
LED
BridgeluxEpistar
DRIVER
LifudEagleriseLuxflare
SUMMARY
WATTAGE
12
CCT
3000
INGRESS
20
FINISH
BK
Technical data in accordance with EN 60598-1, EN 62031, EN IEC 63000 (RoHS), EU LVD 2014/35/EU and EN/IEC 60529 (IP code). We reserve the right to make technical and design changes.
