INDOOR LIGHTING · LED DOWNLIGHTS
LFDLLCR-26W-3K-IP40

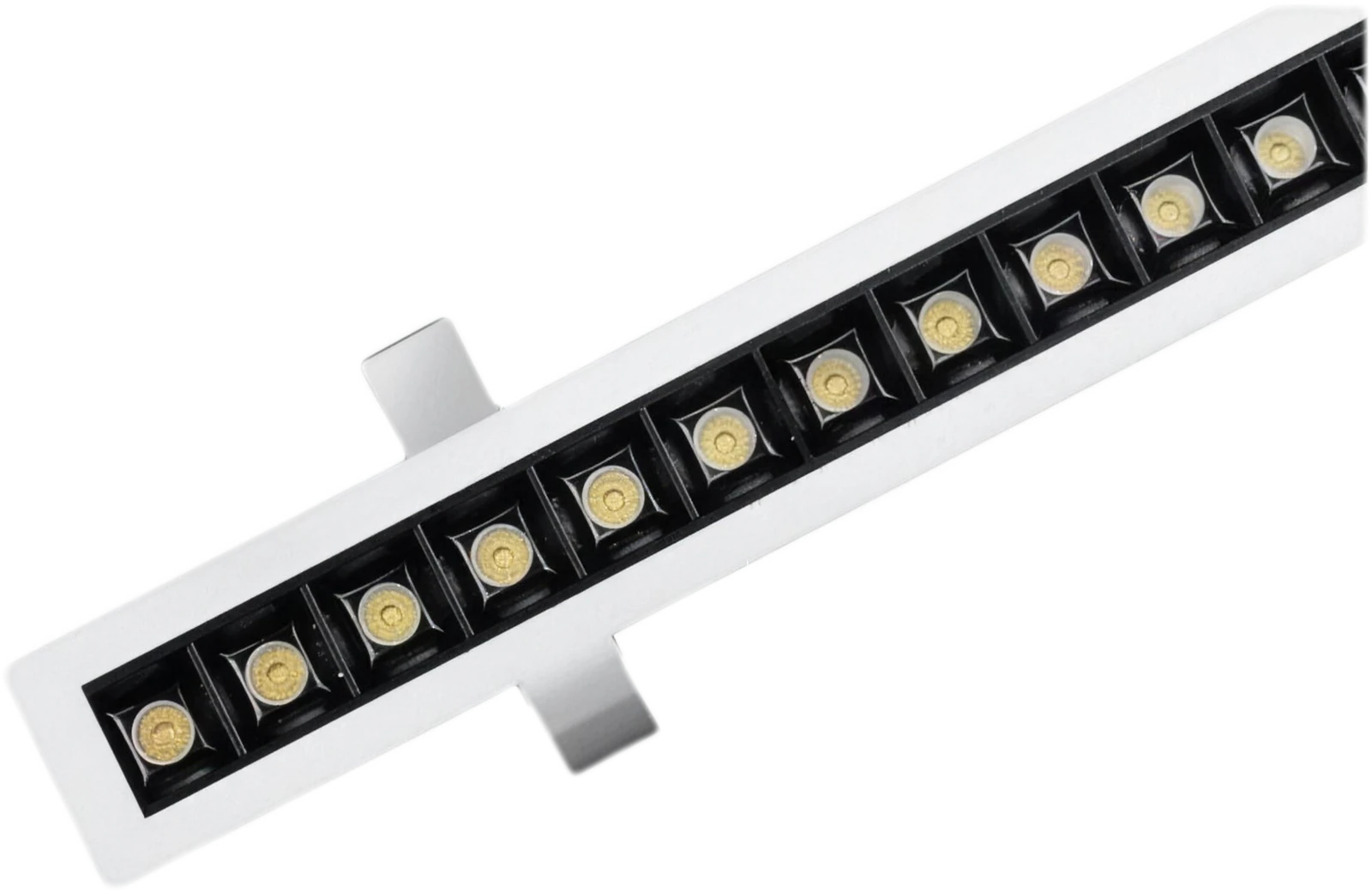

Recessed Linear Downlight 26W recessed profile
1200 mm recessed linear downlight — the full-length sibling of the 600 profile, with the same 35°/60° clear-glass optics for uninterrupted runs.
26 W
WATTAGE
2080 lm
OUTPUT
3000 K
COLOUR TEMP.
IP40
RATING
FINISH
White
Black
Mounting
HOW IT INSTALLSRECESSED
Set into the surface — plane not specified by the manufacturer.
Technical Specifications
FROM CMS RECORD · LFDLLCR-26W-3K-IP40LUMINAIRE DETAILS
Product CodeLFDLLCR-26W-3K-IP40
Product TypeDown Light
Application AreaIndoor
PRODUCT DETAILS
Wattage26 W
Colour Temp.3000 K
IP RatingIP40
Chip TypeSMD
Luminous Flux2080 lm
CRI> 80
Beam Angle35° · 60°
Life Time50,000 Hours
DriverExternal/Integrated
DimmingNon-Dimmable (On/Off)
Input Voltage230V AC
PHYSICAL DETAILS
Housing MaterialAlu Die Cast
Diffuser MaterialGlass
Diffuser OpticsClear
SizeL 1200 x W 50 x H 30mm
Operating Temp.-20°C to +40°C
Storage Temp.-20°C to +50°C
Photometrics
2080 lm
LUMEN OUTPUT
35 °
BEAM ANGLE
—
CENTRE BEAM
—
EFFICACY
3000 K
COLOUR TEMP.
80
CRI
