OUTDOOR LIGHTING · SPIKE & GARDEN
LFSGS-10W-3/4/6K-IP67-BK

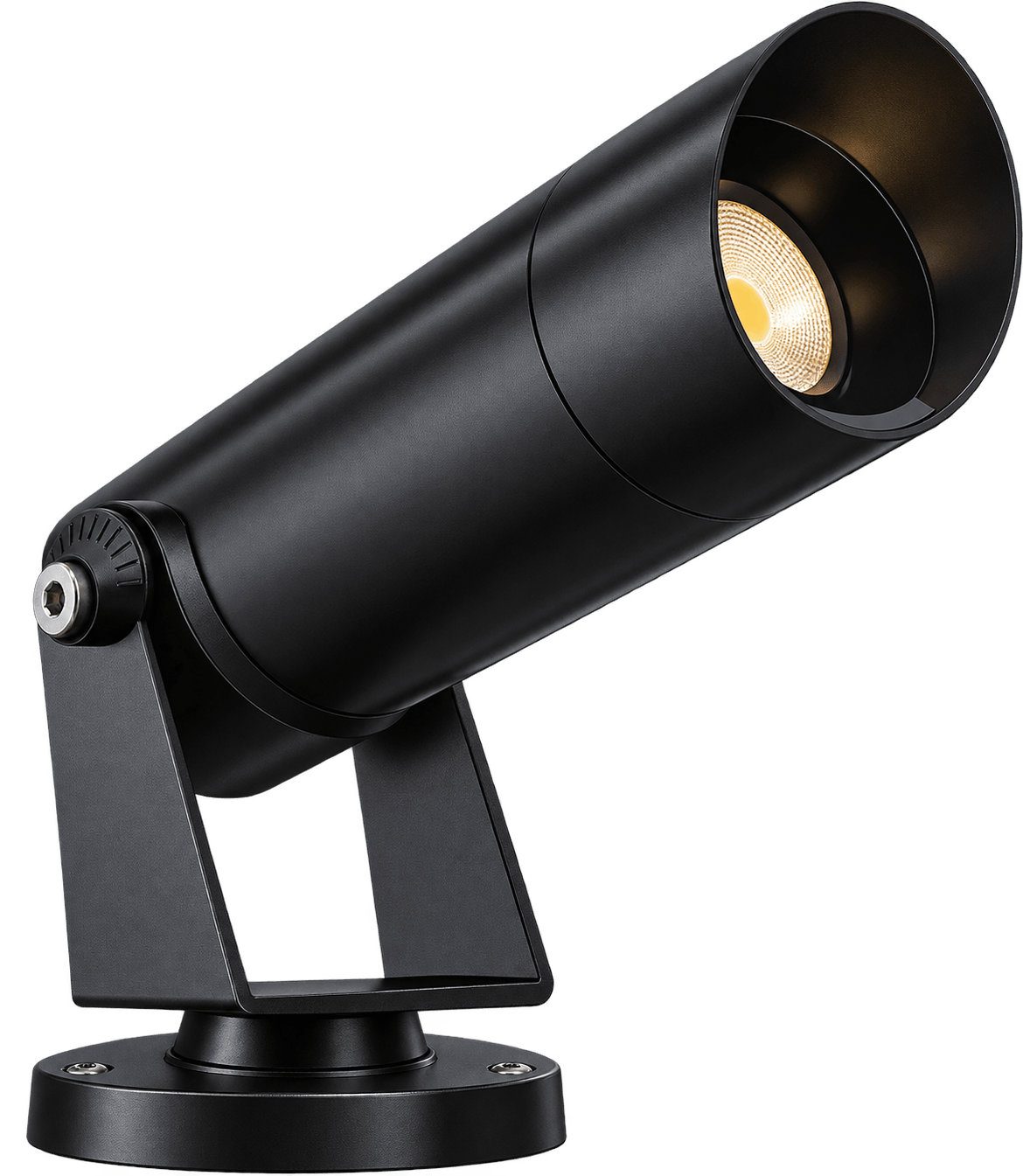

Outdoor LED Spike 10W Ø45 outdoor spike
A Ø45 mm outdoor LED spike, 10 W SMD behind a glass diffuser at 24°, run from 24V DC through an internal or external driver. Rated IP67, offered at 3000K, 4000K or 6000K, black finish.
10 W
WATTAGE
775 lm
OUTPUT
3000 / 4000 / 6000 K
COLOUR TEMP.
IP67
RATING
FINISH
Black
Mounting
HOW IT INSTALLSSURFACE
Fixed onto the surface — plane not specified by the manufacturer.
Technical Specifications
FROM CMS RECORD · LFSGS-10W-3/4/6K-IP67-BKLUMINAIRE DETAILS
Product CodeLFSGS-10W-3/4/6K-IP67-BK
Product TypeSpike Light
Application AreaOutdoor
PRODUCT DETAILS
Wattage10 W
Colour Temp.3000 / 4000 / 6000 K
IP RatingIP67
Chip TypeSMD
Luminous Flux775 lm
CRI> 80
Beam Angle24°
Life Time50,000 Hours
DriverInternal / External
DimmingNon-Dimmable (On/Off)
Input Voltage24V DC
PHYSICAL DETAILS
Housing MaterialAlu Die Cast
Diffuser MaterialGlass
SizeØ 45 mm
Operating Temp.-20°C to +55°C
Storage Temp.-20°C to +80°C
Photometrics
775 lm
LUMEN OUTPUT
24 °
BEAM ANGLE
—
CENTRE BEAM
—
EFFICACY
3000 K
COLOUR TEMP.
80
CRI
