INDOOR LIGHTING · LINEAR PROFILES
LFNZ-M10-FL-1M
Magnetic Track Linear track mounted
A one-metre magnetic linear head for 48 V track — die-cast aluminium with an opal diffuser for a continuous, low-glare line of light. Clips anywhere along the rail and repositions without tools.
12 W
WATTAGE
560 lm
OUTPUT
3000 K
COLOUR TEMP.
IP44
RATING
FINISH
Black
Mounting
HOW IT INSTALLSTRACK MOUNTED
Clips onto a magnetic or fixed track rail.
Technical Specifications
FROM CMS RECORD · LFNZ-M10-FL-1MLUMINAIRE DETAILS
Product CodeLFNZ-M10-FL-1M
Product TypeLinear Light
Application AreaIndoor
PRODUCT DETAILS
Wattage12 W
Colour Temp.3000 K
IP RatingIP44
Chip TypeCOB · SMD
Luminous Flux560 lm
CRI> 80
Beam Angle120°
Life Time50,000 Hours
DriverExternal
DimmingNon-Dimmable (On/Off)
Input Voltage48V DC
PHYSICAL DETAILS
Housing MaterialAlu Die Cast
Diffuser MaterialPolycarbonate (PC)
Diffuser OpticsOpal
SizeL 1000mm
Operating Temp.-20°C to +40°C
Storage Temp.-20°C to +50°C
Photometrics
560 lm
LUMEN OUTPUT
120 °
BEAM ANGLE
—
CENTRE BEAM
—
EFFICACY
3000 K
COLOUR TEMP.
80
CRI

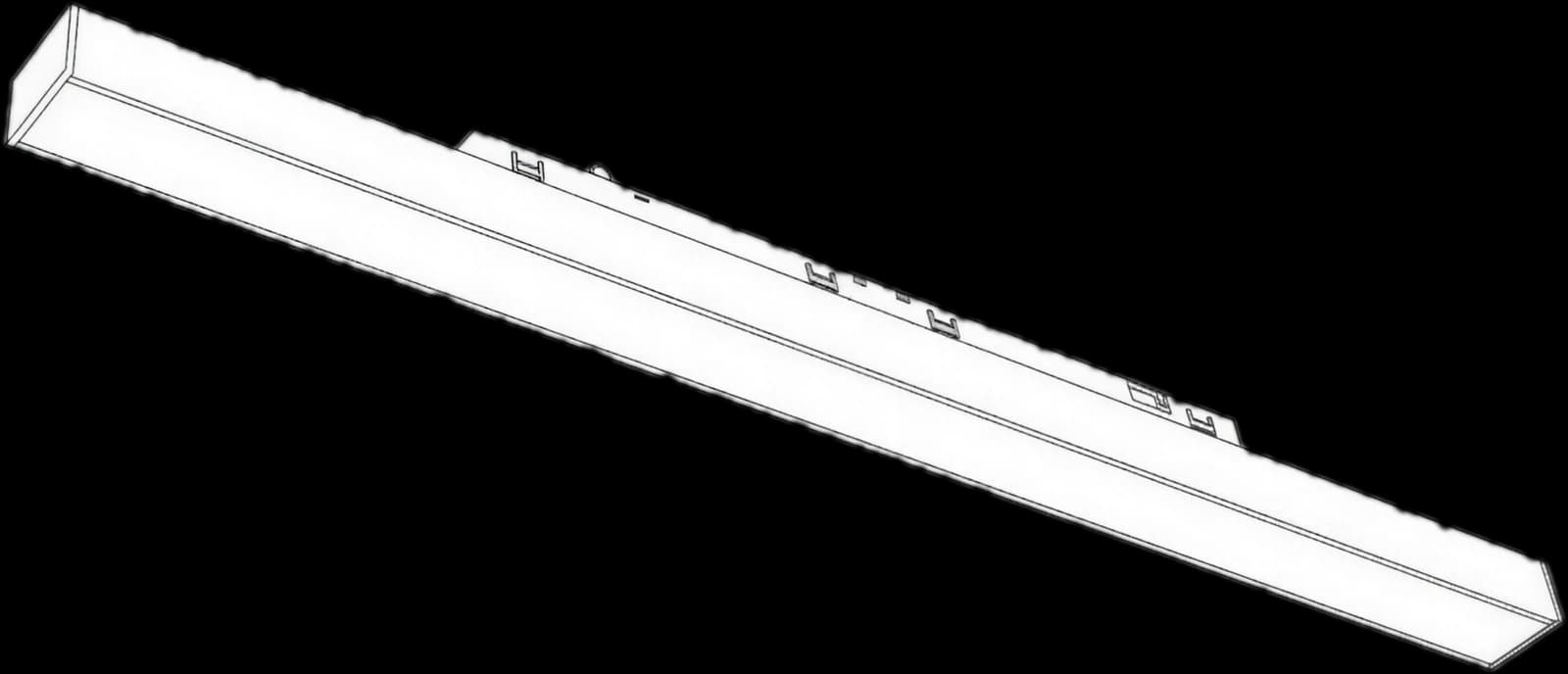

Dimensions
