INDOOR LIGHTING · LINEAR PROFILES
LFLNR-40W-3K-IP20-WH

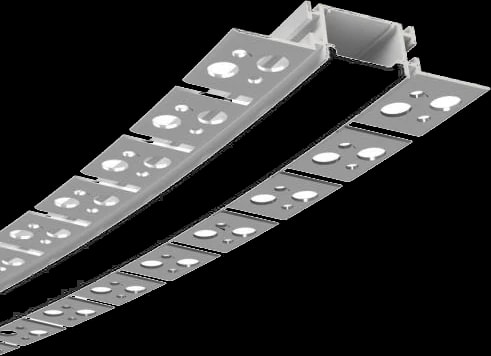

Recessed Linear Light 40W recessed
A 40 W recessed linear light over a 2000 mm run at 3000K, in the same aluminium die-cast body and polycarbonate diffuser as its lower-wattage siblings. DALI dimming and a 24V DC external driver come standard, finished in white.
40 W
WATTAGE
4400 lm
OUTPUT
3000 K
COLOUR TEMP.
IP20
RATING
FINISH
White
Mounting
HOW IT INSTALLSRECESSED
Set into the surface — plane not specified by the manufacturer.
Technical Specifications
FROM CMS RECORD · LFLNR-40W-3K-IP20-WHLUMINAIRE DETAILS
Product CodeLFLNR-40W-3K-IP20-WH
Product TypeLinear Light
Application AreaIndoor
PRODUCT DETAILS
Wattage40 W
Colour Temp.3000 K
IP RatingIP20
Chip TypeSMD/COB
Luminous Flux4400 lm
CRI> 80
Beam Angle120°
Life Time50,000 Hours
DriverExternal
DimmingDALI
Input Voltage24V DC
PHYSICAL DETAILS
Housing MaterialAlu Die Cast
Diffuser MaterialPolycarbonate (PC)
SizeL 2000 × W 80 × H 25 mm
Operating Temp.-20°C to +40°C
Storage Temp.-20°C to +50°C
Photometrics
4400 lm
LUMEN OUTPUT
120 °
BEAM ANGLE
—
CENTRE BEAM
—
EFFICACY
3000 K
COLOUR TEMP.
80
CRI
