ARCHITECTURAL LED LIGHTING
PRODUCT DATASHEET
REV 00 · 2026 · 29/07
INDOOR LIGHTING · WALL LUMINAIRES

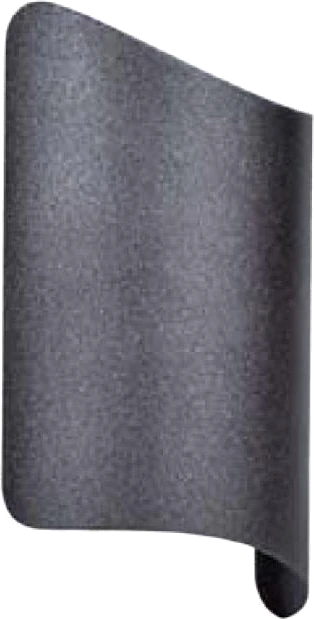

Up-Down Wall Light 125 × 221
up-down
LFWLS-6W-3/4/6K-IP65-BK
An up-down wall light in a 125 × 221 mm die-cast body, combining two 3 W emitters (SMD/COB) for 480 lm total. Offered at 3000K, 4000K or 6000K in black, with a 38° beam spread and a choice of internal or external driver.
MOUNTING
Surface
LUMINAIRE DETAILS
Product Code
LFWLS-6W-3/4/6K-IP65-BK
Product Type
Wall Light
Application Area
Indoor
PRODUCT DETAILS
Wattage
6 W
Colour Temp.
3000 / 4000 / 6000 K
IP Rating
IP65
Chip Type
SMD/COB
Luminous Flux
480 lm
CRI
> 80
Beam Angle
38°
Life Time
50,000 Hours
Driver
Internal / External
Dimming
Non-Dimmable (On/Off)
Input Voltage
230V AC
PHYSICAL DETAILS
Housing Material
Alu Die Cast
Diffuser Material
Glass
Size
W 125 × H 221 mm
Operating Temp.
-20°C to +40°C
Storage Temp.
-20°C to +50°C
DIMENSIONAL DRAWING · MM
IMAGE TO BE SUPPLIED
PHOTOMETRIC · POLAR
LIGHT DISTRIBUTION
38°
FINISHES
Black
LED
CreeBridgeluxEpistarOsram
DRIVER
LifudEagleriseLuxflare
SUMMARY
WATTAGE
6
CCT
3000 · 4000 · 6000
INGRESS
65
FINISH
BK
Technical data in accordance with EN 60598-1, EN 62031, EN IEC 63000 (RoHS), EU LVD 2014/35/EU and EN/IEC 60529 (IP code). We reserve the right to make technical and design changes.
