ARCHITECTURAL LED LIGHTING
PRODUCT DATASHEET
REV 00 · 2026 · 27/07
OUTDOOR LIGHTING · WALL LUMINAIRES

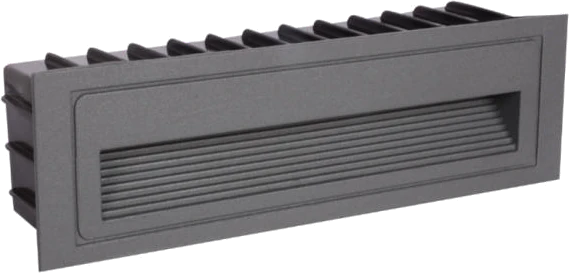

Step Light 10W
step
LFWLR-10W-3K-IP65-BK
A recessed step light in a 250 × 95 mm die-cast body with a 240 mm cutout, running a 10 W SMD module for 1200 lm behind a glass diffuser. Rated IP65 in black, with an internal driver and a 15° beam spread.
MOUNTING
Recessed
LUMINAIRE DETAILS
Product Code
LFWLR-10W-3K-IP65-BK
Product Type
Wall Light
Application Area
Outdoor
PRODUCT DETAILS
Wattage
10 W
Colour Temp.
3000 K
IP Rating
IP65
Chip Type
SMD
Luminous Flux
1200 lm
CRI
> 80
Beam Angle
15°
Life Time
50,000 Hours
Driver
Internal
Dimming
Non-Dimmable (On/Off)
Input Voltage
230V AC
PHYSICAL DETAILS
Housing Material
Alu Die Cast
Diffuser Material
Glass
Size
L 250 × W 95 mm
Cutout
240 mm
Operating Temp.
-20°C to +55°C
Storage Temp.
-20°C to +80°C
DIMENSIONAL DRAWING · MM
IMAGE TO BE SUPPLIED
PHOTOMETRIC · POLAR
LIGHT DISTRIBUTION
15°
FINISHES
Black
LED
CreeBridgeluxEpistar
DRIVER
LifudEagleriseLuxflareNZ
SUMMARY
WATTAGE
10
CCT
3000
INGRESS
65
FINISH
BK
Technical data in accordance with EN 60598-1, EN 62031, EN IEC 63000 (RoHS), EU LVD 2014/35/EU and EN/IEC 60529 (IP code). We reserve the right to make technical and design changes.
