ARCHITECTURAL LED LIGHTING
PRODUCT DATASHEET
REV 03 · 2026 · 31/08
INDOOR LIGHTING · WALL LUMINAIRES

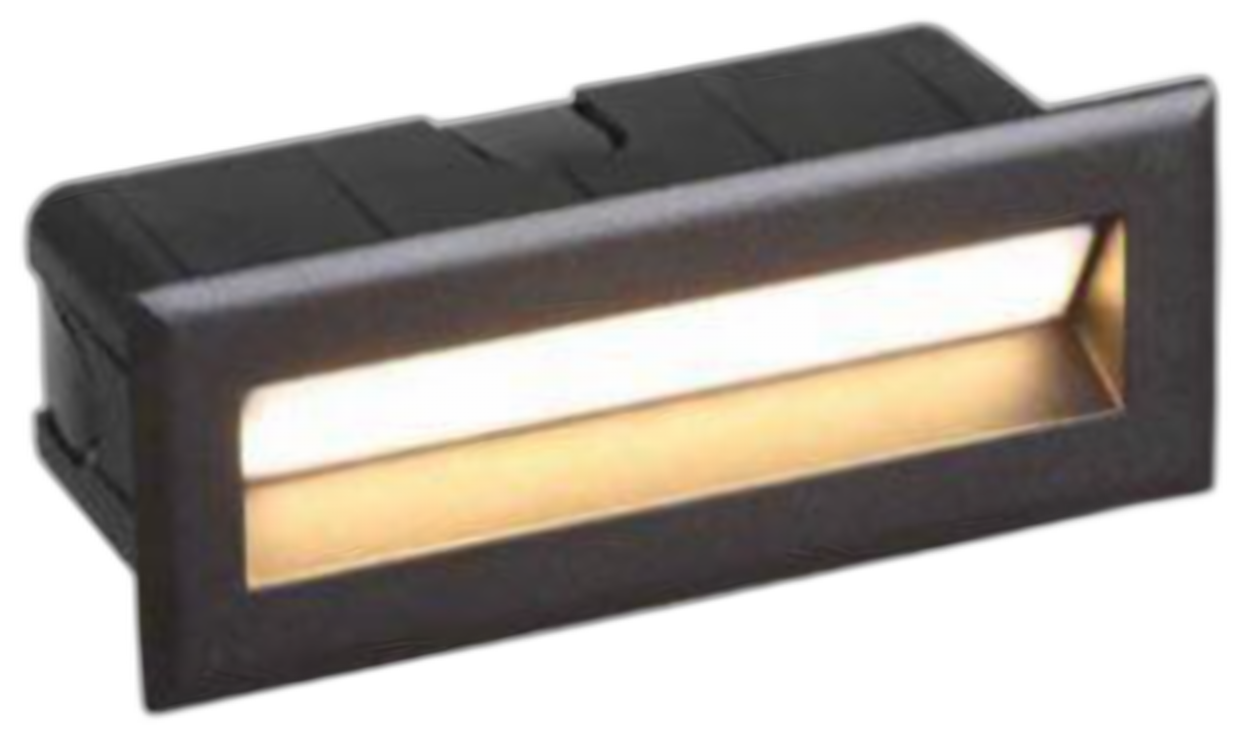

Wall Light
Recessed
LFWLWR-5W-3K-IP65-BK
Product overview to be supplied.
MOUNTING
Wall recessed
LUMINAIRE DETAILS
Product Code
LFWLWR-5W-3K-IP65-BK
Product Type
Wall Light
Application Area
Indoor
PRODUCT DETAILS
Wattage
5 W
Colour Temp.
3000 K
IP Rating
IP65
Chip Type
SMD
Luminous Flux
375 lm
CRI
> 80
Beam Angle
50°
Life Time
50,000 Hours
Driver
Integrated
Dimming
Non-Dimmable (On/Off)
Input Voltage
230V AC
PHYSICAL DETAILS
Housing Material
Alu Die Cast
Diffuser Material
Polycarbonate (PC)
Diffuser Optics
Opal
Size
L 135 × W 55 × H 60 mm
Operating Temp.
-20°C to +40°C
Storage Temp.
-20°C to +50°C

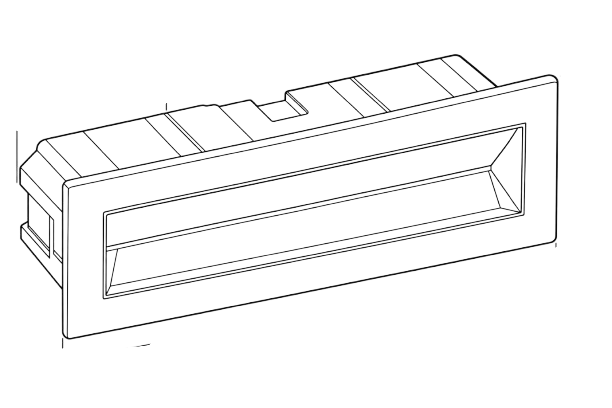

DIMENSIONAL DRAWING · MM
FINISHES
Black
LED
CreeLumiledsBridgeluxVSTridonicEpistar
DRIVER
Luxflare
SUMMARY
WATTAGE
5
CCT
3000
INGRESS
65
FINISH
BK
Technical data in accordance with EN 60598-1, EN 62031, EN IEC 63000 (RoHS), EU LVD 2014/35/EU and EN/IEC 60529 (IP code). We reserve the right to make technical and design changes.
