ARCHITECTURAL LED LIGHTING
PRODUCT DATASHEET
REV 02 · 2026 · 08/10
INDOOR LIGHTING · LED DOWNLIGHTS

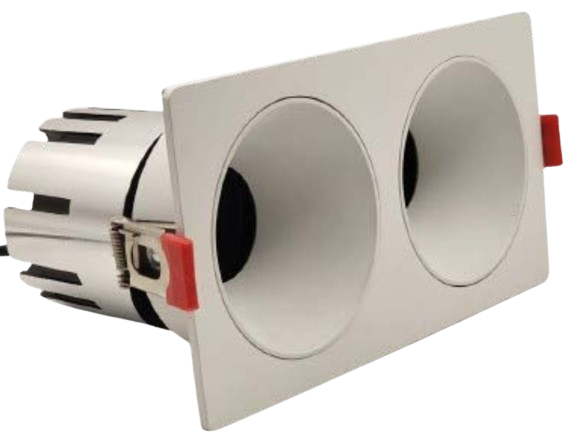

Twin Down Light
twin recessed
LFRC-LD-ZENA-FR-SQ-DOUBLE-WH
A twin-lamp recessed downlight combining two 15 W COB modules (30 W total, per the factory code's 2X15W notation) behind a glass diffuser, set into a 168 mm ceiling cutout at 3000K. Rated IP20, offered in white
MOUNTING
Recessed
LUMINAIRE DETAILS
Product Code
LFRC-LD-ZENA-FR-SQ-DOUBLE-WH
Product Type
Down Light
Application Area
Indoor
PRODUCT DETAILS
Wattage
2X10W / 2X15W
Colour Temp.
3000 K
IP Rating
IP20
Chip Type
COB
Luminous Flux
3450 lm
CRI
> 80
Beam Angle
24° / 36° · 15° · 24° · 36° · 60°
Life Time
50,000 Hours
Driver
External
Dimming
Non-Dimmable (On/Off)
Input Voltage
230V AC
PHYSICAL DETAILS
Housing Material
Alu Die Cast
Diffuser Material
Glass
Size
L 168 × W 88 mm
Cutout
L 160X W 75 mm
Operating Temp.
-20°C to +40°C
Storage Temp.
-20°C to +50°C
Gimble light
Twin

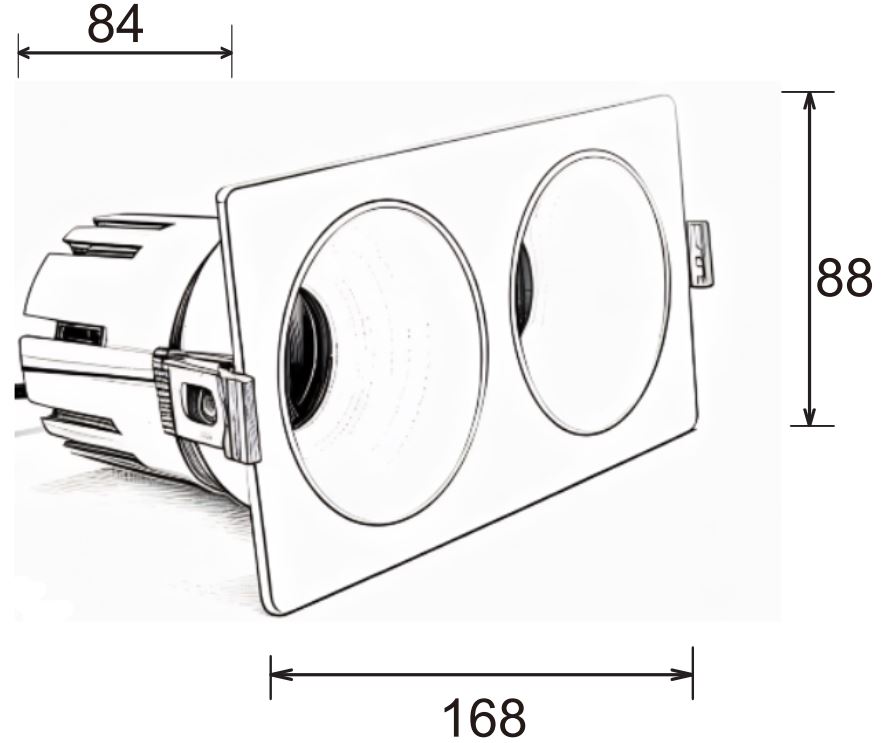

DIMENSIONAL DRAWING · MM
PHOTOMETRIC · POLAR
LIGHT DISTRIBUTION
30°36°
FINISHES
White
LED
BridgeluxEpistarOsram
DRIVER
VSTridonicPhilipsLuxflare
SUMMARY
WATTAGE
2X10W · 2X15W
CCT
3000
INGRESS
20
FINISH
WH
Technical data in accordance with EN 60598-1, EN 62031, EN IEC 63000 (RoHS), EU LVD 2014/35/EU and EN/IEC 60529 (IP code). We reserve the right to make technical and design changes.
