ARCHITECTURAL LED LIGHTING
PRODUCT DATASHEET
REV 00 · 2026 · 27/07
INDOOR LIGHTING · SPOT LIGHTS

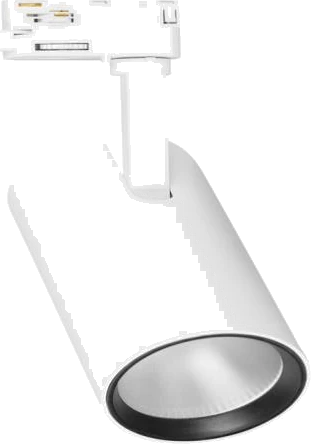

Track Light
track-mounted
LFSLT-10W-3/4/6K-IP20-WH/BK
A Ø60 mm track-mounted spot pairing a COB/SMD chip with a 36° beam for 800 lm output, available in 3000K, 4000K or 6000K behind clear glass. Runs on 48V DC and is finished in white or black.
MOUNTING
Track mounted
LUMINAIRE DETAILS
Product Code
LFSLT-10W-3/4/6K-IP20-WH/BK
Product Type
Spot Light
Application Area
Indoor
PRODUCT DETAILS
Wattage
10 W
Colour Temp.
3000 / 4000 / 6000 K
IP Rating
IP20
Chip Type
COB/SMD
Luminous Flux
800 lm
CRI
> 80
Beam Angle
36°
Life Time
50,000 Hours
Driver
External
Dimming
Non-Dimmable (On/Off)
Input Voltage
48V DC
PHYSICAL DETAILS
Housing Material
Alu Die Cast
Diffuser Material
Glass
Size
Ø 60 mm
Operating Temp.
-20°C to +40°C
Storage Temp.
-20°C to +50°C
DIMENSIONAL DRAWING · MM
IMAGE TO BE SUPPLIED
PHOTOMETRIC · POLAR
LIGHT DISTRIBUTION
36°
FINISHES
White
Black
LED
BridgeluxEpistarOsram
DRIVER
LifudEagleriseLuxflare
SUMMARY
WATTAGE
10
CCT
3000 · 4000 · 6000
INGRESS
20
FINISH
WH · BK
Technical data in accordance with EN 60598-1, EN 62031, EN IEC 63000 (RoHS), EU LVD 2014/35/EU and EN/IEC 60529 (IP code). We reserve the right to make technical and design changes.
LUXFLARE LIGHTINGREV 00 · 2026 · 27/07INDOOR
